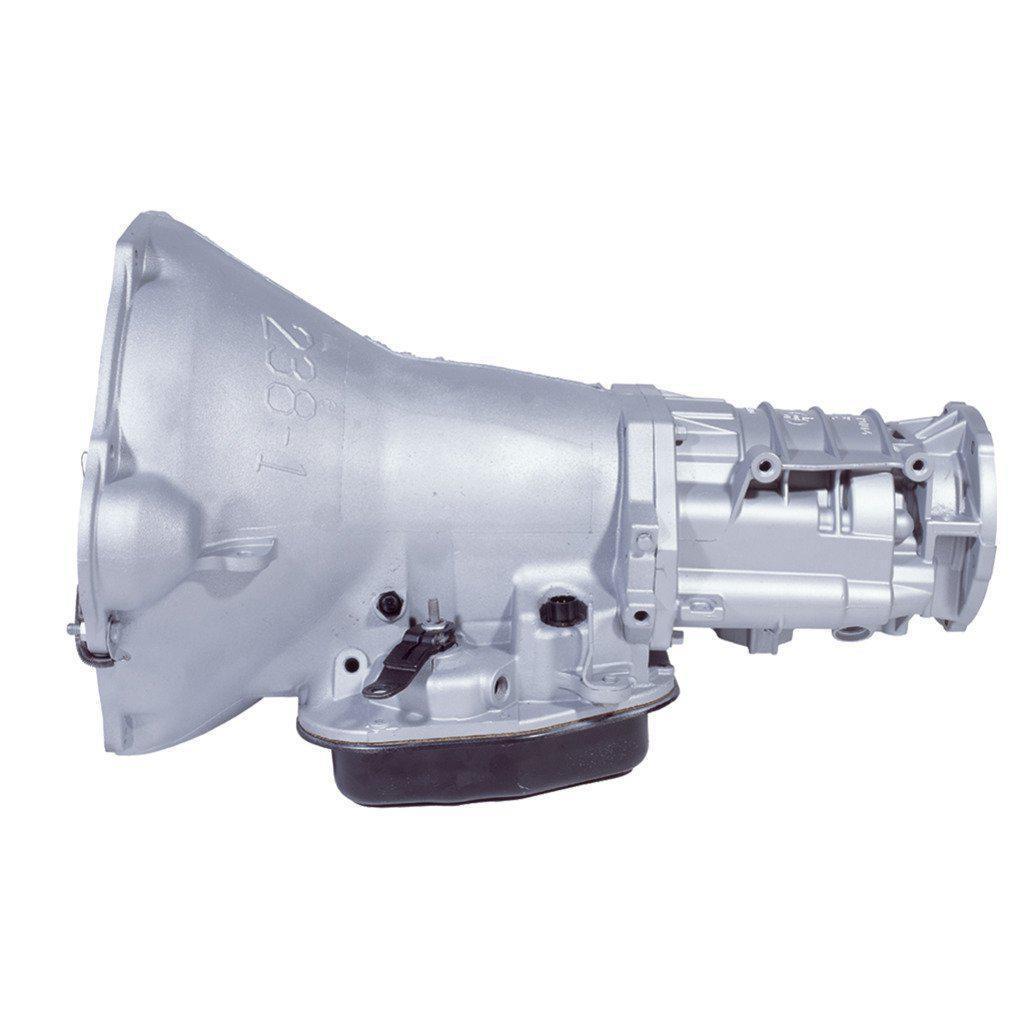

*Discontinued* 1994-1995 Cummins Stage 5 Track-Master Transmission (1065154F)

BD Diesel

Part Number: 1065154F

Sale price$11,060.00 CAD
Sold out

This product ships for free to most Canadian locations! Learn more.
(show all inventory)
Available at alternate warehouse - contact for price
Description

This product has been Discontinued.

Fits: 1994-1995 Dodge Ram w/ 5.9L Cummins & 47RH Trans.

Want a transmission that was built to push the limits on the track and handle extreme horsepower and torque applications? Look no further than the BD 1065154F Stage 5 Track-Master "competition series". When BD combines the features of a "Big" fine spline input shaft, all billet shafts, billet steel direct drum, one piece servo/cover, an extra-wide solid band with red lining, racer red forward/direct frictions, and kolene forward/direct steel, you end up with a transmission that is rated for 650 RWHP and above. Also included are BD's very own heavy-duty transmission pan and auxiliary full-flow filter kit.

BD Diesel Part Number: 1065154F

Features
  • Increase the durability of your drivetrain
  • Stock thrust bushings replaced with roller Torrington bearings
  • Increased line pressure to 190-200psi
  • Cooler line case saver in every transmission
  • High temp Raybestos band
  • Clutch Count: OD 6
  • Clutch Count: OD DIRECT 10
  • Clutch Count: FORWARD 5
  • Clutch Count: DIRECT 7
  • Rigid intermediate band
  • Billet band strut
  • Billet "Big" fine spline input shaft
  • Billet 300M input shaft
  • Billet output shaft
  • Billet intermediate shaft drilled for increased lube
  • BD auxiliary full flow filter kit for extra protection
  • BD rigid aluminum heavy duty transmission pan
  • Pan adds 2qt extra oil capacity
  • Pan heat-dissipating fins keep the temperature down
  • Magnetic drain plug
  • Every transmission is tested on a dyno
  • Not warranted for Race or Sled Pull use
    Notes
    • "Big" fine spline converter required
    • Recommended for 650 RWHP and above applications.
    • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
    Warranty
    • 12-Months
    • 24,000 Miles
