2013-2016 VW/Audi/Porsche 3.0L TDI FlashZilla Tune File

TuneZilla
$718.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stock Emissions-Off tune: add any add-ons you want, then the FlashZilla Pro if you need one.

Cold Climate Idle

Optional

Cold Climate Idle raises the idle RPM (between 1150-1200RPM) on engine start up to reach operating temperature (approx 70C/158F) quicker in cold climates. This feature works when vehicle is in Park and on initial engine start. If vehicle is moved out of Park, the feature will turn off.

Glow Plug Extension

Optional

Increases glow plug strength and duration if it's cold enough. Improves cold starting performance (reduced chance of startup smoke and reduced engine stumbling).

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

FlashZilla Pro

Optional

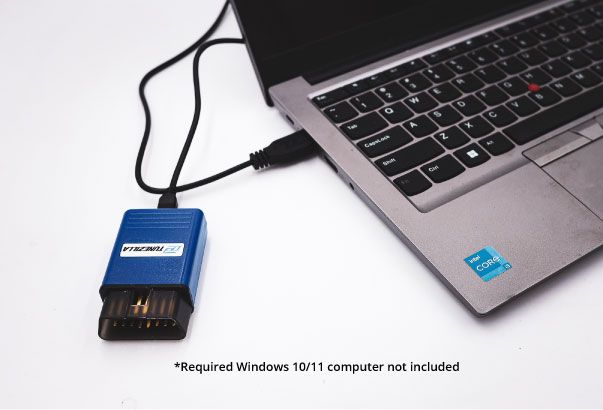

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 718  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

TuneZilla tune files for the 2013-2016 VW/Audi/Porsche 3.0L TDI, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level: Stock Emissions-Off, or Stage 1, Stage 2, Stage 2.5, Stage 3 - 2260 Turbo, Stage 3 - 2566 Turbo, Stage 3 - 2872 Turbo.

Emissions-Off is included free with every Stage tune (select it in the TuneZilla Portal when you flash). Stock Emissions-Off is the same price as the entry Stage tune; choose it if you want factory power.

Tune Options

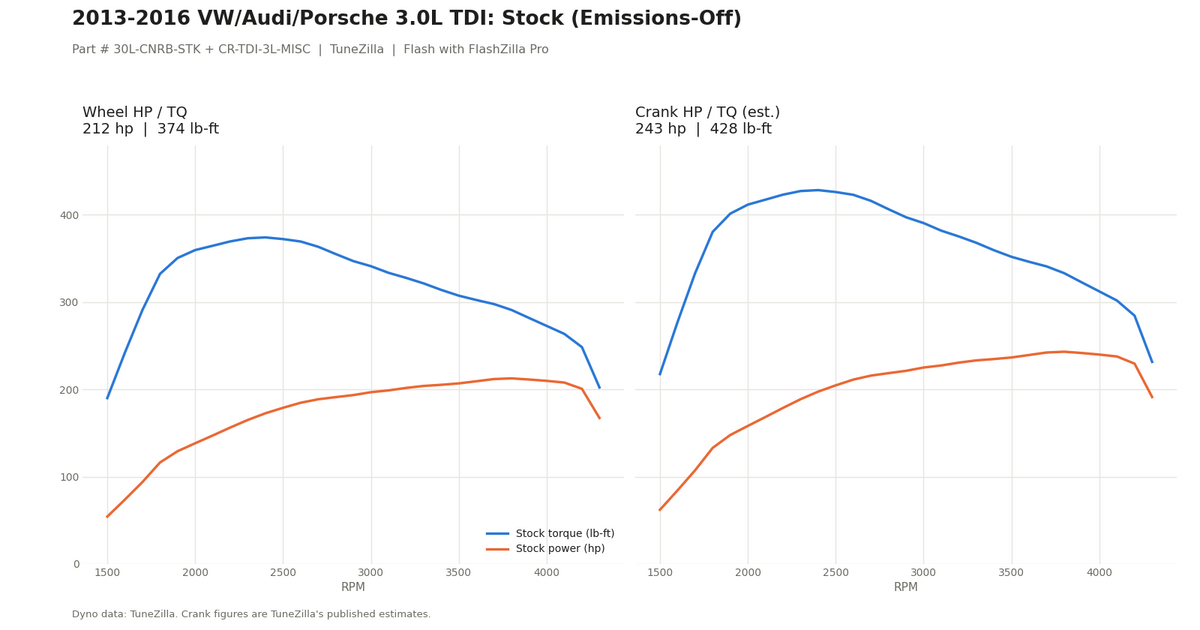

Stock baseline: 212 hp / 373 lb-ft at the wheel, 243 hp / 428 lb-ft crank (est.)

Tune Part # Wheel HP / TQ Crank HP / TQ (est.) Gain (crank) Requires

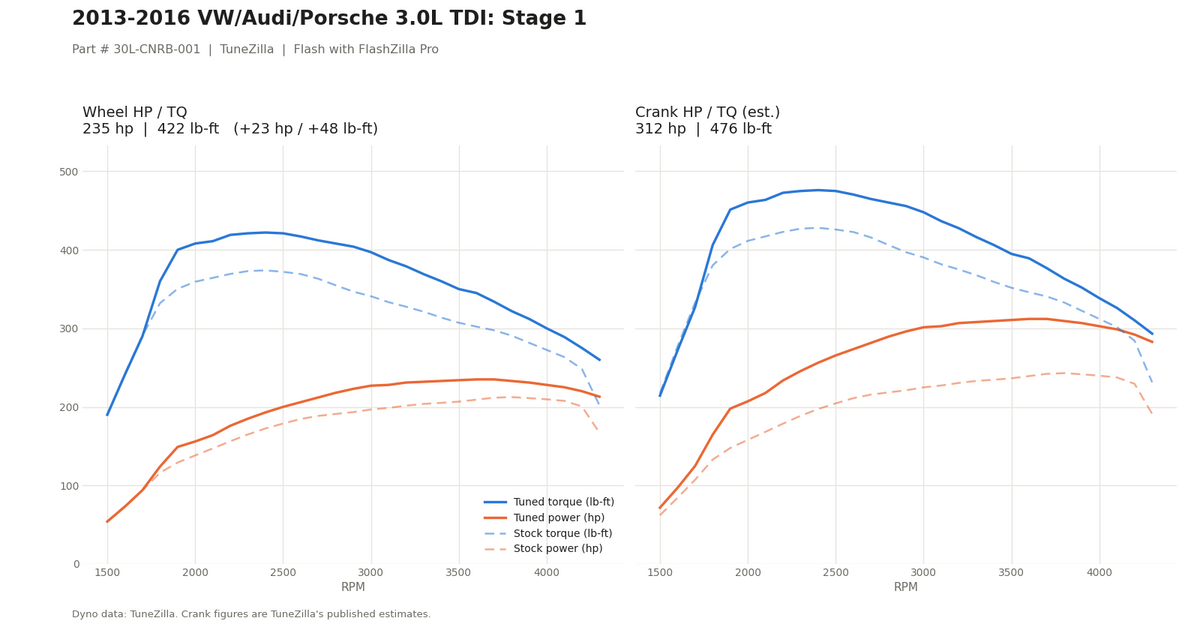

Stage 1 30L-CNRB-001 235 hp / 422 lb-ft 312 hp / 476 lb-ft +69 hp / +48 lb-ft None listed
Stage 2 30L-CNRB-002 241 hp / 425 lb-ft 320 hp / 480 lb-ft +77 hp / +52 lb-ft None listed
Stage 2.5 30L-CNRB-025 246 hp / 444 lb-ft 327 hp / 501 lb-ft +84 hp / +73 lb-ft None listed
Stage 3 - 2260 Turbo 30L-CNRB-003-2260 304 hp / 481 lb-ft 350 hp / 543 lb-ft +107 hp / +115 lb-ft Garrett 2260VZK OEM: 059 145 874 L, 059 145 874 T Garrett: 810822-5003S, 819968-51001S
Stage 3 - 2566 Turbo 30L-CNRB-003-2566 318 hp / 499 lb-ft 366 hp / 574 lb-ft +123 hp / +146 lb-ft GTB2566VZK (Part Number: #DSD2375)
Stage 3 - 2872 Turbo 30L-CPNB-CNRB-003-2872 342 hp / 513 lb-ft 393 hp / 590 lb-ft +150 hp / +162 lb-ft GTD 2872

Crank figures are TuneZilla's published estimates.
