2013-2016 VW/Audi/Porsche 3.0L TDI FlashZilla Pro Stage 3 2566 Turbo Tune Package

This is the Stage 3 2566 Turbo Tune Package. If you want the Stock Emissions-Off Tune Package, please click here. If you want the Stage 1 Tune Package, please click here. If you want the Stage 2 Tune Package, please click here. If you want the Stage 2.5 Tune Package, please click here. If you want the Stage 3 2260 Turbo Tune Package, please click here. If you want the Stage 3 2872 Turbo Tune Package, please click here.

This package includes the TuneZilla FlashZilla Pro OBD flash tool and the TuneZilla Stage 3 2566 Turbo tune file. Already own a FlashZilla Pro, or want add-ons or a transmission tune? Order the tune file on its own and build it there.

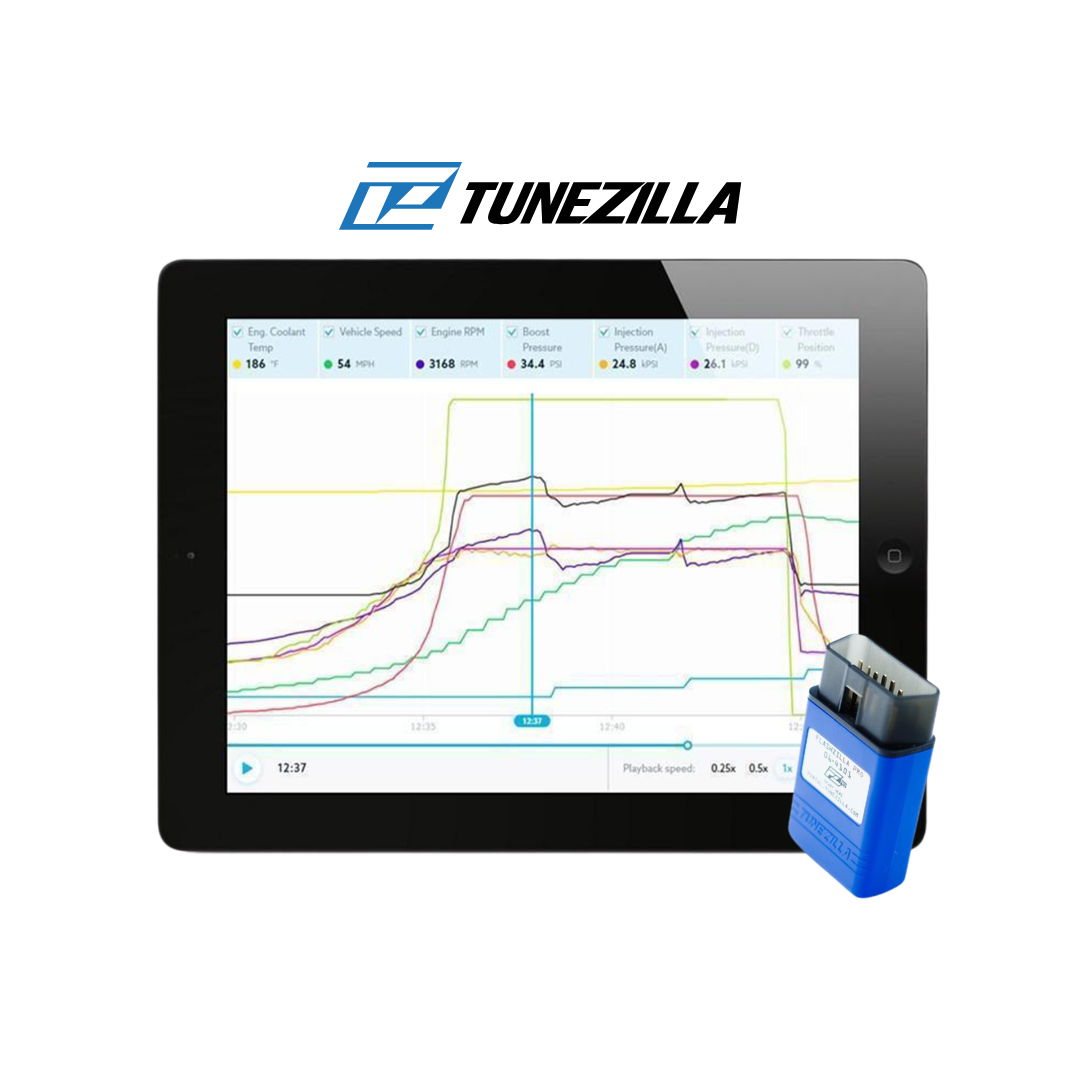

TuneZilla engine (ECU) tuning for the VW/Audi/Porsche 3.0L V6 TDI, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. The dyno graph is in the photo gallery.

Part Number: 30L-CNRB-003-2566+FZPRO

Emissions-Off: included free with this tune. Select it in the TuneZilla Portal when you flash.

Transmission tune: not included. Touareg, Q7 and Cayenne owners (Aisin 8-speed) also need the Aisin transmission tune for Stage 3. A6, A7, A8 and Q5 do not.

Computer: flashing needs a Windows 10 or 11 laptop running the TuneZilla Portal App (not included).

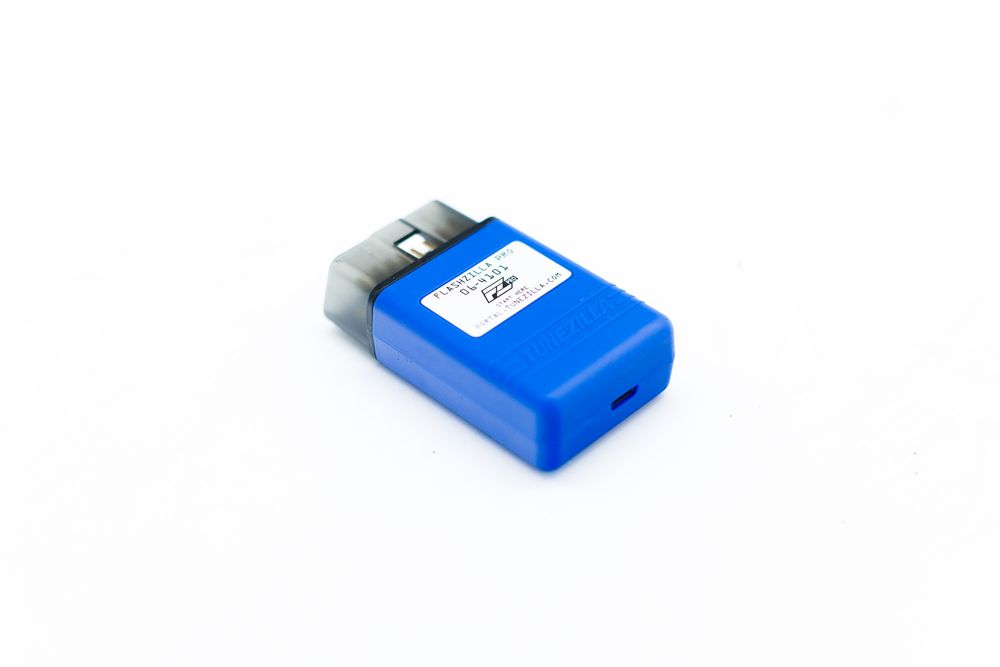

• TuneZilla FlashZilla Pro OBD Flash Tool (OBD flash tool)
• 2013-2016 VW/Audi/Porsche 3.0L TDI FlashZilla Stage 3 2566 Turbo Tune File (30L-CNRB-003-2566)

Stock baseline: 212 hp / 373 lb-ft at the wheel, 243 hp / 428 lb-ft crank (est.)

Crank figures are TuneZilla's published estimates.

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash. Where two options cover the same part (such as the 2200 and 2700 rail pressure sensors), pick only the one you installed.

• Emissions-Off (DPF, AdBlue, EGR & Swirl Flap) (CR-TDI-3L-MISC)
• Deep Idle (TDI-Deep-Idle)
• Left Foot Brake (LFBF-EDC17-2.0-3.0-TDI)
• Oil Pressure Increase (Oil-Pressure-increase-CPNB-CNRB)

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

It is important to note that we do not remove or modify factory readiness monitors or force readiness for any factory-installed components. If you are installing aftermarket hardware that is for off-road use only, please double-check with your state requirements prior to flashing.

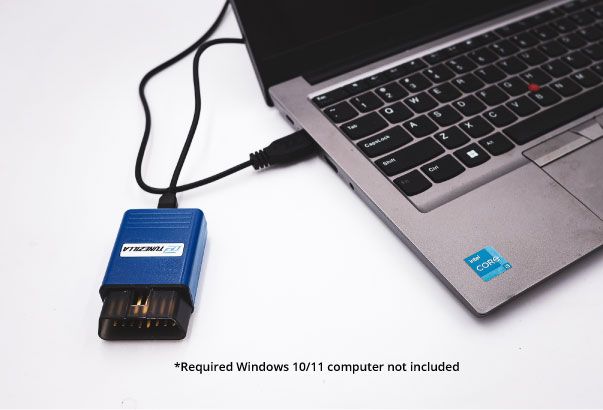

• Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
• Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
• Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
• Clear all fault codes and warning messages before flashing.
• TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

Radiator fan: the radiator fan can run during flashing and drain the battery. TuneZilla recommends a battery charger or unplugging the two radiator fan control unit fuses while flashing.

4G0907401N 0016, 4H0907401F 0016, 4H0907401N 0002, 4L2910401A 0008, 4L2910401A 0012, 4L2910401A 0014, 7P0907311C 0002, 7P0907311C 0003, 7P0907311C 0004, 7P0907401F 0003, 7P0907401F 0005, 7P0907401G 0002, 7P0907401K 0004, 7P0907401K 0011, 7P0907401K 0013, 7P1907401C 0002, 7P1907401C 0007, 7P1907401C 0010, 7P1907401D 0001, 7P1907401F 0004, 7P5907401D 0002, 7P5907401D 0003, 7P5907401D 0004, 7P5907401H 0004, 7P5907401H 0006, 7P5907401H 0011, 7P5907401H 0014, 7P5907401L 0009, 7P5907401Q 0002, 7P5907401Q 0007, 7P5907401Q 0010, 8K5907401AC 0002

Stage 3 tuning offers customers off-the-shelf tuning solutions for various hardware combinations. TuneZilla has partnered with Malone Tuning to develop tried and tested hardware upgrade combinations to deliver reliable tune files for the 3.0 TDI CPNB and CNRB engine. If you are simply looking to do a simple turbo upgrade to replace a worn turbo, or want to maximize your power potential, we have a tune file for you.
Our tune files have been tested to produce the most power without unnecessary upgrades.

Any Time, Any Place

Flash your vehicle in the comfort of your own driveway or garage using our TuneZilla Portal App and FlashZilla Pro dongle. Download your tune directly to your laptop and flash your vehicle anywhere.

Tune files can be modified through our InstaTune server so that you can upgrade your tune anytime.

For more information on how to use the FlashZilla Pro, you can see the guide here: Tuning with FlashZilla Pro

Don't see your question? Ask us anything about this product.
