2020-2021 Powerstroke 6" Radius Arm Lift Kit (BDS1561H)
BDS 6" radius arm lift systems with BDS NX2 or Fox 2.0 Series shocks for your Ford Super Duty offer improved performance, capability, vastly superior damping capability to soak up the harshest terrains offroad while offering comfort for your daily commute, & quiet operation. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.
Tire & Wheel Combinations:
- 38x13.50 w/ 17x9/18x9/20x9 and 4.5-5"
- 38x13.50 w/ 17x10/18x10 and 5"
- 38x13.50 w/ 20x10 and 5"
Notes:
- Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
- If your truck is equipped with a factory rear sway bar add: 123808

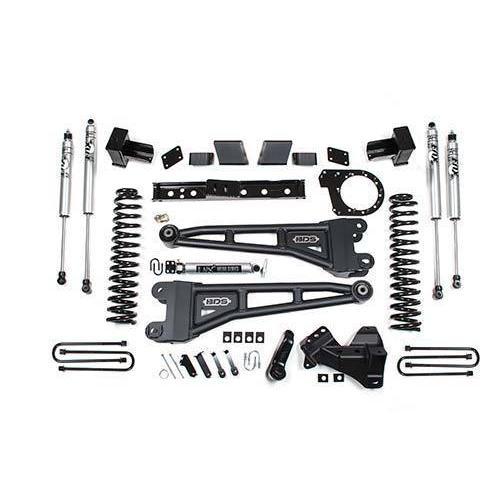

- Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
- The indexing ring has not been designed to work on manual-shift transfer case models. Modification to the shift cable mount will be required.
- If your truck is equipped with a factory rear sway bar add: BDS123005
- 4. 38 x 13.50 tires may require minor trimming.
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS1561H
Rear 6.25" Block Kit
This Box Kit includes the following products:
- 2 Driver & Passenger Side 6" Rear Block
- 4 5/8-18 x 3 1/8 x 19" Half Round U-Bolts
- Bag Kit
- 5/8 washers
- 5/8 high nuts
- E-Brake Relocation Bracket
- E-Brake Clamp Bracket
- Bolt Pack -E-Brake Brackets
Show more
4" Lift Rear Leaf Spring (2x)
Show more
Rear Leaf Spring Box Kit
This Box Kit includes the following products:
- 4 5/8 x 3-1/8 x 14 U-Bolts
- 7/8 washer
- E-Brake Relocation Bracket
- E-Brake Relocation Clamp Bracket
- Bolt Pack - E-Brake Relocation
- 5/8 washers
- 5/8 high nuts
- 7/16 x 4 Pin w/Nut
Show more
Radius Arm Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side Radius Arm Assembly
- Bag Kit - Radius Arms
- Radius Arm Cam Plates
- 18mm x 150mm Bolts
- 18mm Prevailing Torque Nuts
- 3/4" SAE Washers
Show more
Front 6" Suspension System Box Kit
This Box Kit includes the following products:
- Pitman Arm
- Driver & Passenger Side Brakeline Bracket
- Driver & Passenger Sway Bar Drop
- Track Bar Bracket
- Bag Kit
- Track Bar Cam Washer
- 1/8" x 1-1/8" cotter pin
- CV Joint Boot Clamp
- Zip Ties
- Brakeline Hardline extension
- Bolt Pack - Sway Bar Drop Bracket
- Bolt Pack - Bump Stops
Show more
DSL Transfer Case Indexing Kit
Show more
NX2 Series Shocks (2x)
Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.
Show more
NX2 Series Single Steering Stabilizer
Show more
Required if you have selected Dual Steering Stabilizers.
No Thanks
Features:
- Adjustable axle wrap control utilizing dual-stage resistance springs
- Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
- Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling)
- Traction bar ends are greaseable and rebuildable
No Thanks
Universal Recoil Traction Bar
Show more
This is required if you have added the Traction Bar.
No Thanks
RECOIL Traction Bar Mounting Kit (3.5"- 4" Axle Diameter)
- Does not fit regular cab models
Show more
Features:
- Standard turn-buckle length adjustment as featured on other BDS truck track bars
- Works with 0-4" of lift using the stock track bar bracket and 4+"-8" with replacement extended track bar bracket
- 1-3/8" solid steel stock with CNC machined threads
- Greaseable, high-durometer polyurethane bushings at the frame end
- Heavy-duty, greaseable replacement ball joint pre-installed at the axle end
No Thanks
These shims are designed to improve rear driveline angle on trucks equipped with a 2-piece rear driveshaft to eliminate any potential driveline vibrations.
Note:
This is not needed on trucks equipped with a 1-piece rear driveshaft.
No Thanks
Driveshaft Alignment Kit
Show more
