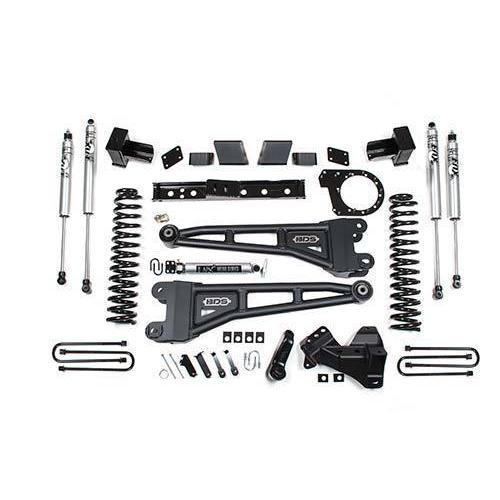

2020-2022 Powerstroke 7" Radius Arm Lift Kit (BDS1561H)

Click here to customize this Kit

Fits

BDS 7" radius arm lift systems with BDS NX2 Series shocks for your Ford Super Duty offer improved performance, capability, vastly superior damping capability to soak up the harshest terrains offroad while offering comfort for your daily commute, & quiet operation. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.

Part Number: BDS1561H

• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• HD tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear

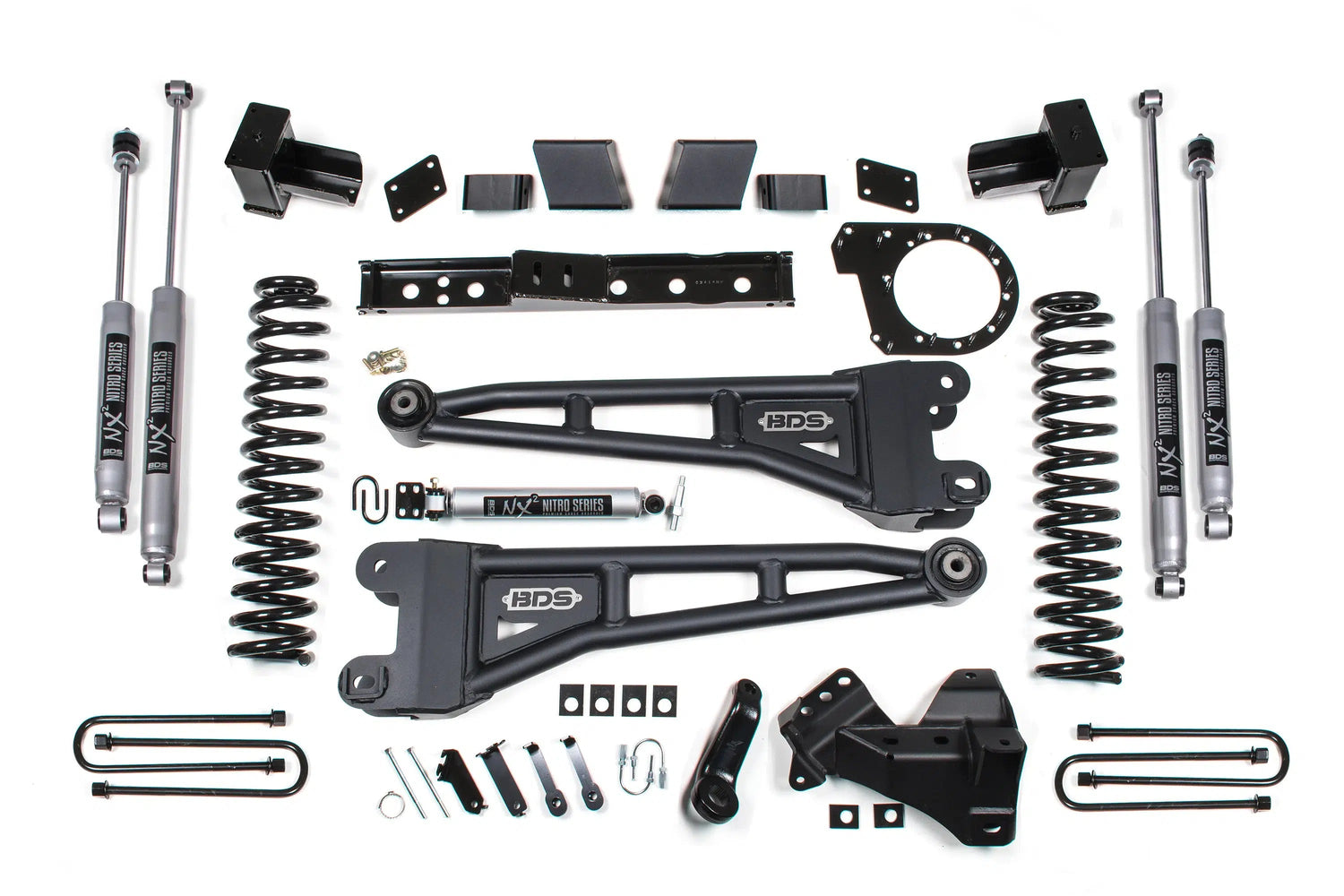

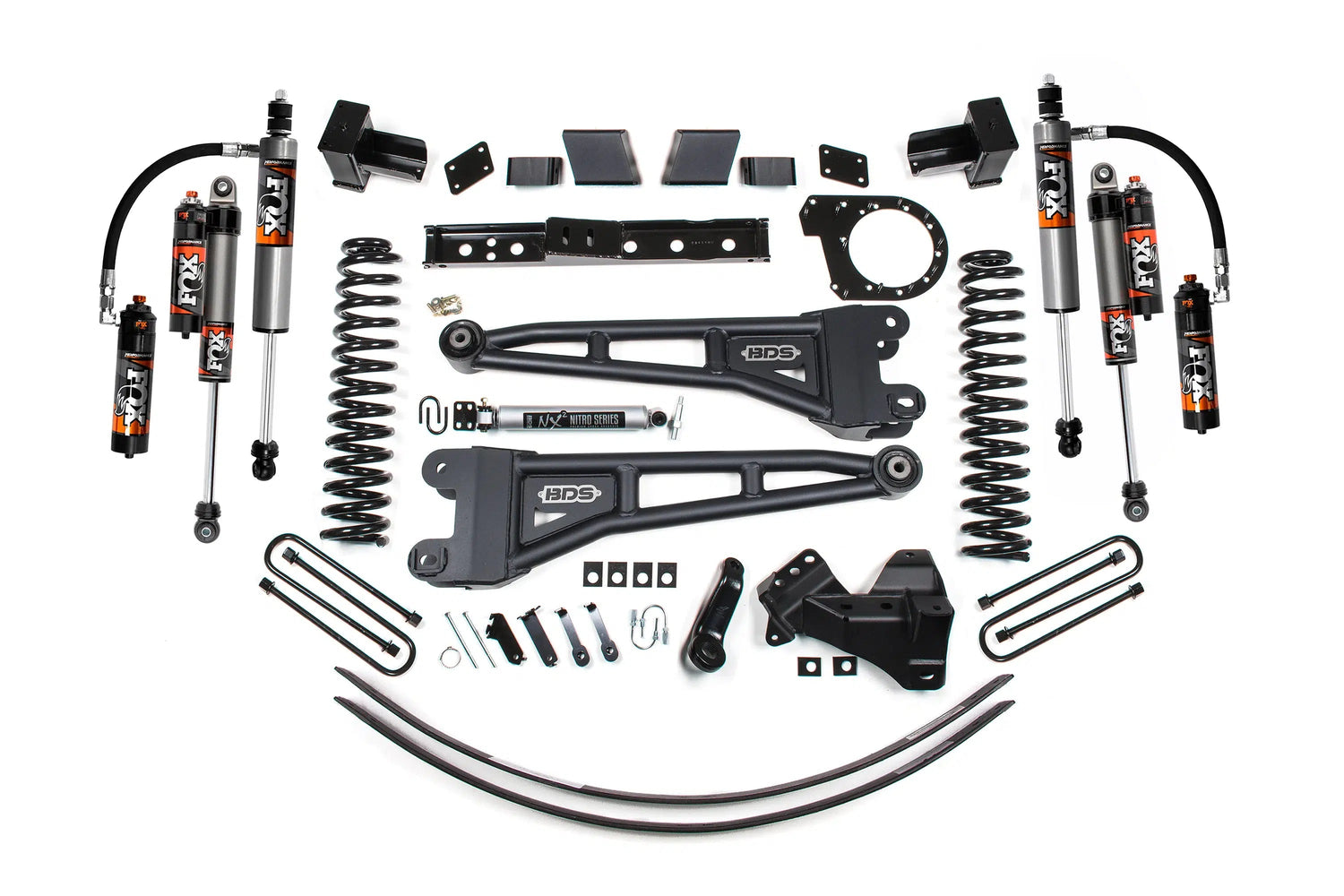

• Standard NX2 Nitro or Fox 2.0 shocks with vehicle-specific valving for better control


Tire & Wheel Combinations:

• 38 x 13.5 with 17 x 9 and 5 in. Backspace
• 38 x 13.5 with 18 x 10 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace


Rear Lift Option:

6 Inch Block Kit

• Included in the base system.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

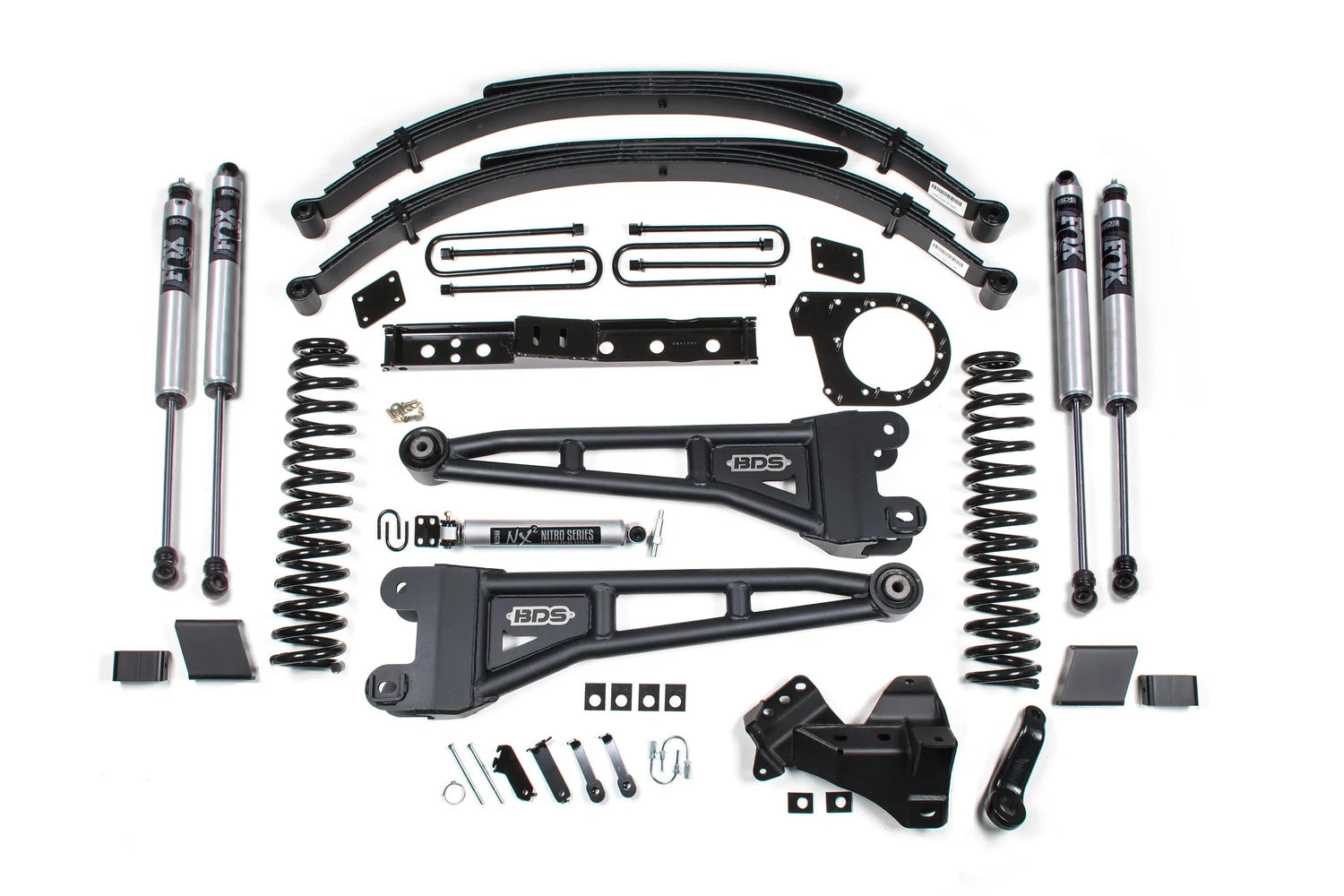

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

• Ford recommends the replacement of the pitman arm nut after each time it has been removed.

• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.

• If your truck is equipped with a factory rear sway bar add: BDS123808

• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.

• Larger tires on the stock wheels are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.

• The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing it. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.

• Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.

• Installation requires a torque wrench capable of 405 ft-lbs.

• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
