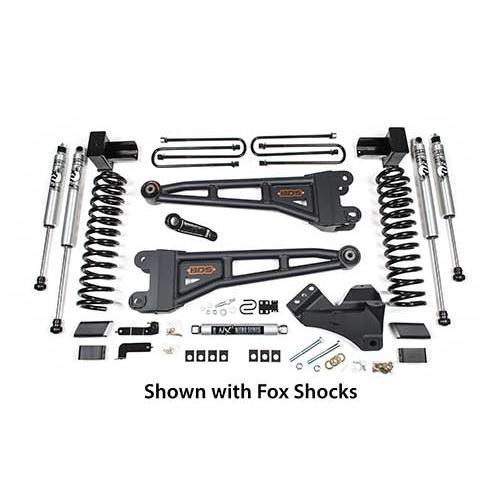

2017-2019 Powerstroke 4" Radius Arm Lift Kit (BDS1520H)
BDS 4" radius arm lift systems with NX2 or Fox 2.0 Series gas shocks for your Ford Super Duty offer improved performance, capability, ride quality, & quiet operation. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.
Tire & Wheel Combinations:
- 37 x 12.50 w/ 17 x 9 and 4.5" - 5"
- 37 x 12.50 w/ 18 x 9 and 4.5" - 5"
- 37 x 12.50 w/ 20 x 9 and 4.5" - 5"
Notes:
- Front exhaust modification may be required to clear the front driveshaft (Gas Only)
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 37 x 12.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS1520H
4" Front Coil Springs
Show more
4" Front Box Kit
This Box Kit includes the following products:
- Pitman Arm
- Driver & Passenger Side Brakeline Bracket
- Front Bump Stop Extension - 4"
- Driver & Passenger Side Sway Bar Drop
- Track Bar Bracket
- Bag Kit
- Track Bar Cam Washer
- 1/8" x 1-1/8" cotter pin
- Zip Ties
- Bolt Pack - Sway Bar Drop Bracket
- Bolt Pack - Bump Stops
Show more
Radius Arm Kit
Show more
Note:
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leafs (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option below.
https://bds-suspension.com/images-prod/reference/17_f250_r-spring_2leaf.jpg
5" Rear Block Kit w/ 2 Leaf Main
Note:
- Choose this option if your vehicle is factory equipped with a 2-leaf main rear leaf spring pack
Show more
5" Rear Block Kit w/ 3 Leaf Main
Note:
- Choose this option if your vehicle is factory equipped with a 3-leaf main rear leaf spring pack
Show more
4" Lift Rear Leaf Spring (2x)
Choose this option if you want full leaf spring replacements.
Show more
Only select this option if you have added full leaf spring replacements.
4" Rear Leaf Spring Box Kit
Show more
Features:
- Standard turn-buckle length adjustment as featured on other BDS truck track bars
- Works with 0-4" of lift using the stock track bar bracket and 4+"-8" with replacement extended track bar bracket
- 1-3/8" solid steel stock with CNC machined threads
- Greaseable, high-durometer polyurethane bushings at the frame end
- Heavy-duty, greaseable replacement ball joint pre-installed at the axle end
No Thanks
Features:
- Adjustable axle wrap control utilizing dual-stage resistance springs
- Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
- Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling)
- Traction bar ends are greaseable and rebuildable
No Thanks
Universal Recoil Traction Bar
Show more
Required if you have added the Traction Bar.
No Thanks
RECOIL Traction Bar Mounting Kit (3.5"- 4" Axle Diameter)
Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.
Note:
- Does not fit regular cab models
Show more
The kit comes with multiple shim plates for full adjustability from 1/8" to 1-1/2" of drop. Includes necessary hardware.
Note:
- For all 3"+ Lift Kits.
No Thanks
Carrier Bearing Drop Spacer
Show more
If your truck is equipped with a rear sway bar, these are recommended.
No Thanks
IMPORTANT: Will ONLY fit trucks with a 4 bolt flange style rear driveshaft mount on the axle.
When lifting the 2011-2020 model Ford Super Duty 6" or more it may be necessary to extend the rear driveshaft to ensure adequate spline engagement at full droop of the suspension. While one option is to have a custom extended length driveshaft built, BDS Suspension is now offering a more affordable solution with their new high strength rear driveshaft spacer. Built from T6061 billet aluminum and CNC machined for a precision fit, this rear driveshaft spacer mounts between the driveshaft and rear axle providing the necessary driveshaft spline engagement. Longer hardware and thread locker are also supplied complete the simple install.
No Thanks
The following kit ID's 1567H, 1567F, 1551H, 1551F - If installed on a truck with a top mount overload spring, and the overload spacer block is taller than 1-1/8" then these U-Bolts (Qty:4) are required.
Note:
- All u-bolts come with high nuts and washers.
No Thanks
Universal U-Bolt (4x)
Show more
