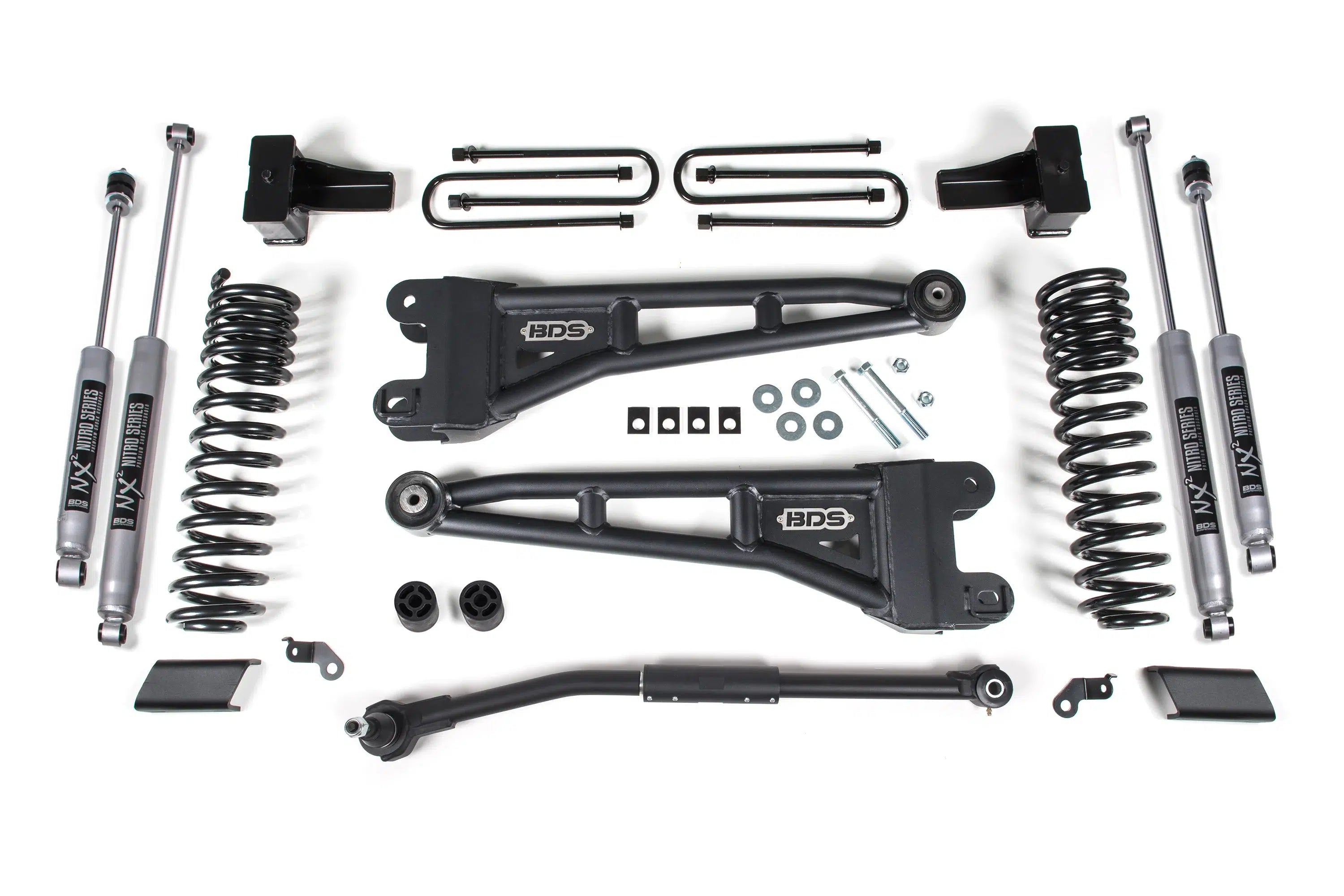

2017-2019 Powerstroke 2.5" Radius Arm Lift Kit (BDS1543H)
BDS continues to expand its suspension systems its latest addition to the 1-8" lift options with this 2.5" Radius Arm Lift Kit. Paired with NX2 or Fox Series gas shocks for your Ford Super Duty, this kit offers improved performance, capability, ride quality, & quiet operation. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.
Tire & Wheel Combinations:
- 35" x 12.50 w/ 17 x 9 and 4.5"
- 35" x 12.50 w/ 18 x 9 and 4.5"
- 35" x 12.50 w/ 20 x 9 and 4.5"
Notes:
- Mounting larger tires on factory wheels is not recommended due to potential brake line clearance issues.
- Factory track bar mounting bolt requires 405 ft-lbs of torque, plan ahead on how to achieve this torque spec
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- 37 x 12.50 tires may require minor trimming.
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS1543H
4" Front Coil Springs
Show more
4" Front Box Kit
Show more
Radius Arm Upgrade Kit
This Box Kit includes the following products:
- Driver & Passenger Side Replacement Radius Arm
- Bag Kit - Replacement Radius Arm
- Caster Cam Plates
- M18-2.50 X 150mm Bolt
- M18-2.50 Prevailing Torque Nut
- Washer
- Zip Tie - Push In
Show more
Note:
- Some F250/350 factory options increase the main leaf pack count from 2 to 3 leafs (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option below.
5" Rear Block Kit w/ 2 Leaf Main
Show more
4" Lift Rear Leaf Spring (2x)
Show more
4" Rear Leaf Spring Box Kit
Show more
Fox 2.5 Remote Reservoir Shocks
Step up from twin-tube and even 2.0 monotube shocks for next-level performance with these FOX 2.5 factory series remote reservoir shocks. These shocks offer race-proven technology specially valved and ready to bolt on and perform right of out the box. The larger 2.5 body, stronger internals, and external remote reservoir improve damper capability across any terrain.
Show more
Fox 2.5 Remote Reservoir Shocks
Show more
No Thanks
No Thanks
Features:
- Standard turn-buckle length adjustment as featured on other BDS truck track bars
- Works with 0-4" of lift using the stock track bar bracket and 4+"-8" with replacement extended track bar bracket
- 1-3/8" solid steel stock with CNC machined threads
- Greaseable, high-durometer polyurethane bushings at the frame end
- Heavy-duty, greaseable replacement ball joint pre-installed at the axle end
No Thanks
Features:
- Adjustable axle wrap control utilizing dual-stage resistance springs
- Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
- Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling)
- Traction bar ends are greaseable and rebuildable
No Thanks
Universal Recoil Traction Bar
Show more
Required if you have added the Traction Bar.
No Thanks
RECOIL Traction Bar Mounting Kit (3.5"- 4" Axle Diameter)
Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.
Note:
- Does not fit regular cab models
Show more
The kit comes with multiple shim plates for full adjustability from 1/8" to 1-1/2" of drop. Includes necessary hardware.
Note:
- For all 3"+ Lift Kits.
No Thanks
Carrier Bearing Drop Spacer
Show more
If your truck is equipped with a rear sway bar, these are recommended.
No Thanks
IMPORTANT: Will ONLY fit trucks with a 4 bolt flange style rear driveshaft mount on the axle.
When lifting the 2011-2020 model Ford Super Duty 6" or more it may be necessary to extend the rear driveshaft to ensure adequate spline engagement at full droop of the suspension. While one option is to have a custom extended length driveshaft built, BDS Suspension is now offering a more affordable solution with their new high strength rear driveshaft spacer. Built from T6061 billet aluminum and CNC machined for a precision fit, this rear driveshaft spacer mounts between the driveshaft and rear axle providing the necessary driveshaft spline engagement. Longer hardware and thread locker are also supplied complete the simple install.
No Thanks
The following kit ID's 1567H, 1567F, 1551H, 1551F - If installed on a truck with a top mount overload spring, and the overload spacer block is taller than 1-1/8" then these U-Bolts (Qty:4) are required.
Note:
- All u-bolts come with high nuts and washers.
No Thanks
Universal U-Bolts (4x)
Show more
