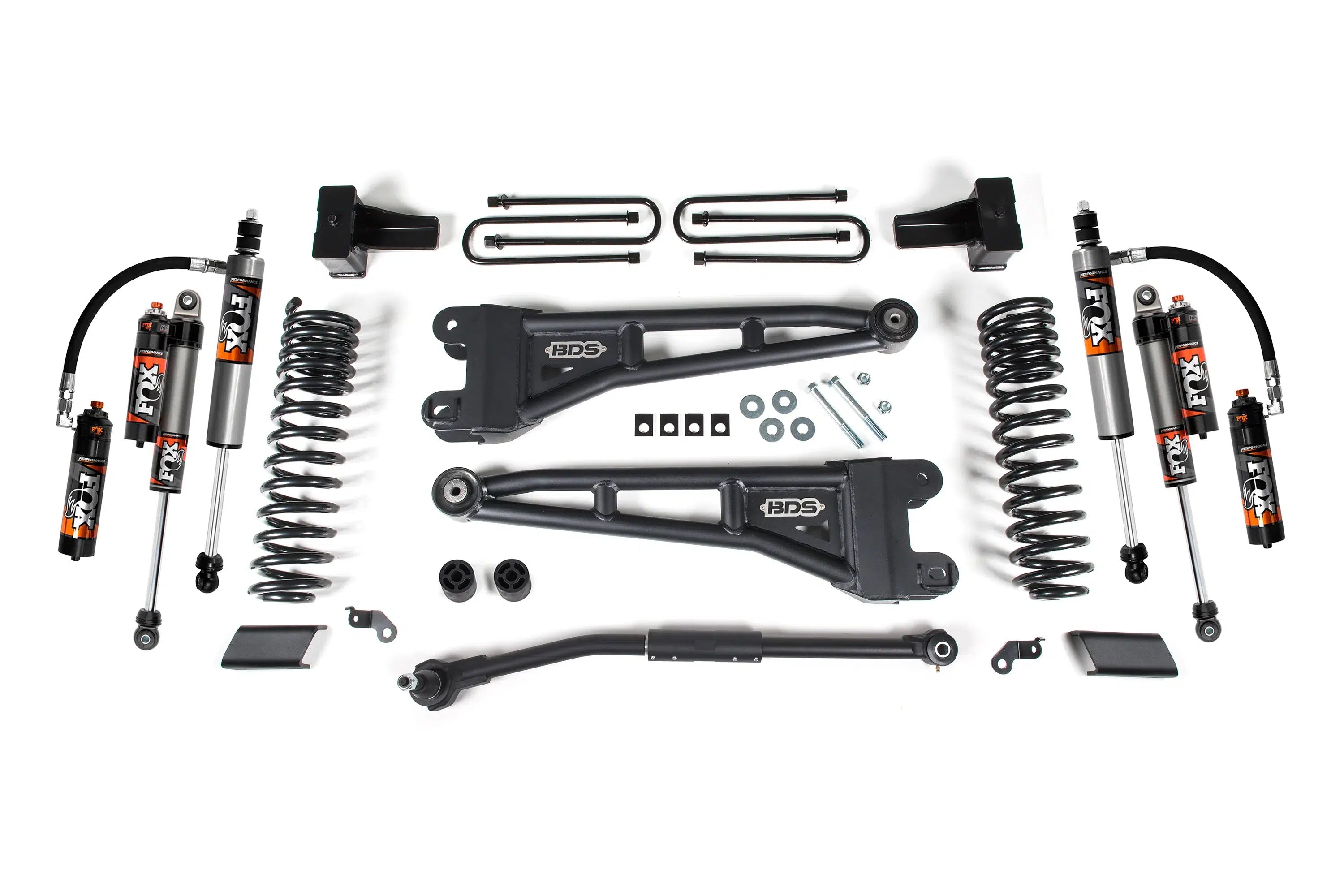

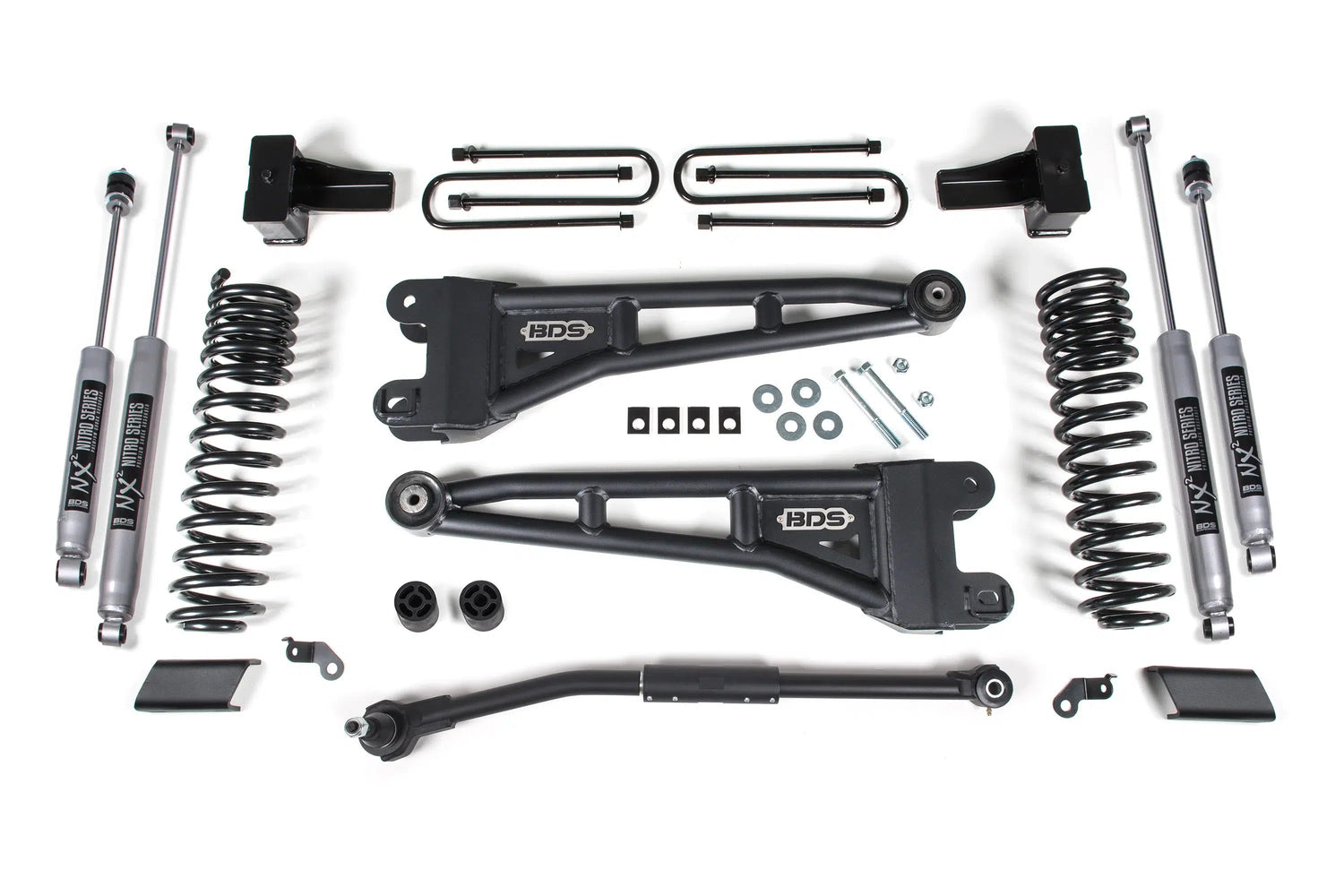

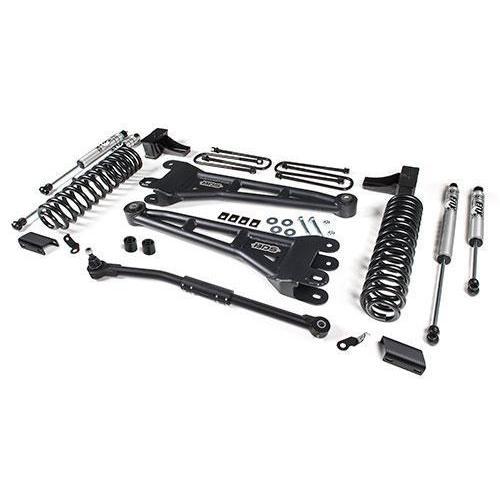

2017-2019 Powerstroke 2.5" Radius Arm Lift Kit (BDS1543H)

Click here to customize this Kit

Fits

BDS continues to expand its suspension systems its latest addition to the 1-8" lift options with this 2.5" Radius Arm Lift Kit. Paired with NX2 Series gas shocks for your Ford Super Duty, this kit offers improved performance, capability, ride quality, & quiet operation. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.

Part Number: BDS1543H

• ProRide 4" Coil Springs
• NX2 Series shocks
• HD Radius Arms
• Adjustable Track Bar
• Brake Line relocation
• Rear 5" Lift Blocks
• NX2 Series Single Steering Stabilizer
• Clearance for 35" tires

Tire & Wheel Combinations:

• 35" x 12.50 w/ 17 x 9 and 4.5"
• 35" x 12.50 w/ 18 x 9 and 4.5"
• 35" x 12.50 w/ 20 x 9 and 4.5"

• Mounting larger tires on factory wheels is not recommended due to potential brake line clearance issues.
• Factory track bar mounting bolt requires 405 ft-lbs of torque, plan ahead on how to achieve this torque spec.

• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• 37 x 12.50 tires may require minor trimming.
•  If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)


• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
