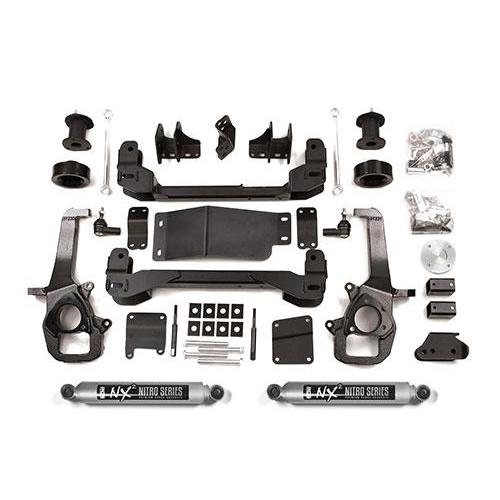

2013-2018 Ram 1500 4WD 2-4" Lift Kit (BDS670H)
BDS Suspension 2-4" Suspension Lift Kit for Dodge Ram 1500 4WD 1/2 Ton Pickup. This lift kit is based around two one-pieces, 1/4" laser cut high-clearance crossmembers, and replacement steering knuckles to give you proper ground clearance, clean installation, off-road protection, and maintain proper steering angles.
Tire & Wheel Combinations:
- 35" x 12.50" w/ 17 x 9 and 4-1/2"
- 35" x 12.50" w/ 18 or 20 x 9 and 5"
Notes:
- The rack and pinion steering system are extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. The larger the tire and the less the backspacing, the more sensitive the system becomes, causing minor steering wheel shimmy.
- Not recommended for AWD models.
- Stock 17" wheels can not be re-installed. Stock 20" can be reinstalled with factory tire.
- Will not fit adjustable air suspension-equipped models.
- This kit is FMVSS No.126 Compliant.
- This kit will bolt on Eco-Diesel models but it will require an aftermarket front driveshaft.
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS670H
Front Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side Steering Knuckle
- Tie Rod Ends
Show more
Front Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side Steering Knuckle
- Tie Rod Ends
Show more
4" Front Box Kit
This Box Kit includes the following products:
- Bolt Pack - Diff Hardware
- Bolt Pack- Main Hardware
- Bolt Pack - Driveshaft Spacer
Show more
6" Front Box Kit
This Box Kit includes the following products:
- HC Front Crossmember
- Front Driver & Passenger Side Differential Drop Bracket
- Rear Driver Side Differential Drop Bracket
- Outer Front Driver Side Differential Drop Bracket
- CV Boot Clamp
Show more
2" Rear Spacer Kit
These Box Kits include the following products:
- 2 Preload Spacers
- Rear Track Bar Bracket
- Driver Rear Bump Spacer
- Passenger Rear Bump Spacer
- Driver Side Relocation Bracket
- Passenger Side Relocation Bracket
- 2 Sway bar link
- 2 Shock Nut Tab
- 2 Nut Plate
- 1.00 x .125 x 1.360 DOM Sleeve
- 2 1.00 x .125 x 2.375 DOM Sleeve
- 4 .625 x .075 x 1.375 Sleeve
- 4 5/8 ID Hourglass Bushing - black
- 2 Brake Adapters
- 2 2" Rear Coil Spacer
Show more
3" Rear Coil Box Kit
These Box Kits include the following products:
- 2 Preload Spacers
- Rear Track Bar Bracket
- Driver Rear Bump Spacer
- Passenger Rear Bump Spacer
- Driver Side Relocation Bracket
- Passenger Side Relocation Bracket
- 2 Sway bar link
- 2 Shock Nut Tab
- 2 Nut Plate
- 2 Upper Coil Retainer
- 1.00 x .125 x 1.360 DOM Sleeve
- 2 1.00 x .125 x 2.375 DOM Sleeve
- 4 .625 x .075 x 1.375 Sleeve
- 4 5/8 ID Hourglass Bushing - black
- 2 Brake Adapters
- 1 Driver Rear Bump Spacer
- 1 Passenger Rear Bump Spacer
- 2 3" Rear Coil
Show more

NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
