Description
Fits
Year |
Make |
Model |
Type |
2013-2018 |
Dodge / Ram |
1500 Truck |
w/o Air-Ride |

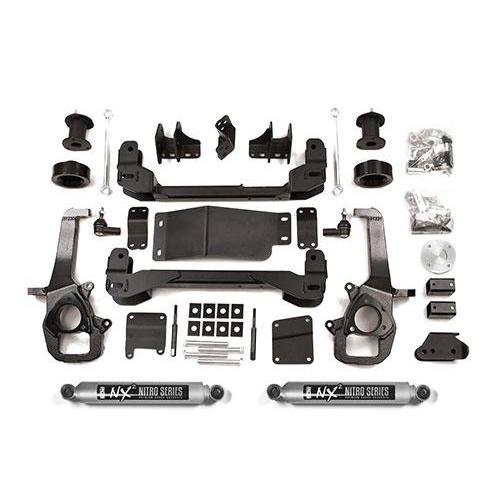

BDS Suspension 2-4" Suspension Lift Kit for Dodge Ram 1500 4WD 1/2 Ton Pickup. This lift kit is based around two one-pieces, 1/4" laser cut high-clearance crossmembers, and replacement steering knuckles to give you proper ground clearance, clean installation, off-road protection, and maintain proper steering angles.
Part Number: BDS670H
Features
- Clear up to 35" tires
- BDS 2" coil spacers
- Differential Skid Plate
- Bump Stop Drops
- Anti Sway Bar Links
- 3 point differential drop system
- Strut Relocation Brackets
- Front Stainless Steel Brake Lines
- Track Bar Bracket
- Upper Link Relocation Bracket
- 3" Rear Coil Springs
- Two one-piece, 1/4" laser cut high-clearance crossmembers
- Replacement steering knuckles
Tire & Wheel Combinations:
- 35" x 12.50" w/ 17 x 9 and 4-1/2"
- 35" x 12.50" w/ 18 or 20 x 9 and 5"
Notes
- The rack and pinion steering system are extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. The larger the tire and the less the backspacing, the more sensitive the system becomes, causing minor steering wheel shimmy.
- Not recommended for AWD models.
- Stock 17" wheels can not be re-installed. Stock 20" can be reinstalled with factory tire.
- Will not fit adjustable air suspension-equipped models.
- This kit is FMVSS No.126 Compliant.
-
This kit will bolt on Eco-Diesel models but it will require an aftermarket front driveshaft.
Installation
