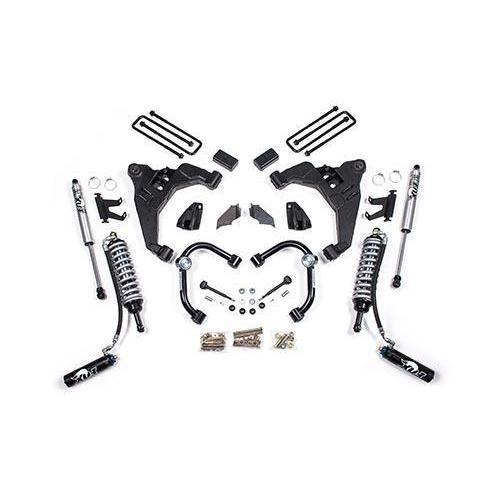

2011-2019 Duramax 2.5" Coilover Conversion Lift Kit (BDS723FDSC)
Convert the front of your Duramax to the control and strength of a Coilover setup while increasing your ride height by 2-3". BDS Suspension has introduced next-level technology in these lift kits for improved fade-free performance, strength, durability, and comfort over any terrain.
Tire & Wheel Combinations:
- 305/55R20 w/ 20 x 9 and 5"
- 35x12.50R20 w/ 20 x 9 and 5"
Notes:
- Minor metal trimming may be required with 35x12.50R20 on 20x9 w/5-5.5" BS
- Requires minor welding
- Coilovers are preset for DIESEL engine models. The use of the Coilovers on GAS engine models is not recommended due to providing too much lift. Available preload adjustment is typically not enough to achieve desired ride height.
- Factory 17" and 18" wheels cannot be reinstalled. Factory 20" wheels can be reused with stock tire size.
- Dually Models will require aftermarket 20" wheels with a max tire size of 285/60/
- Coilovers are preset to a 2" minimum lift height
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS723FDSC
When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length; designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.
Fox 2.5 Series Remote Reservoir Coilovers
Show more
Front Coilover Box Kit
Show more
Upper Control Arm Kit
Show more
Drivers Side Lower Control Arm
Show more
Passenger Side Lower Control Arm
Show more
This system is available for models equipped from the factory with or without rear top mounted overload springs. Be sure to select the correct option for your model, or choose "No Rear Box Kit" to order this system without rear blocks/ u-bolts.
No Thanks
2" Block w/ Overload Springs
Show more
2" Block wo Overload Springs
Show more
Steering stabilizer kits are available for models equipped with and without a factory mount. Be sure to select the correct option for your application. Many 2016 models did not come with a factory stabilizer mount on the frame.
No Thanks
NX2 Series Single Steering Stabilizer w/ Factory Mount
Choose this option to add an NX² series steering stabilizer that mounts in the factory frame and Centrelink locations.
Note:
- This single stabilizer is an OE replacement. This system will not fit if your vehicle was not already equipped with a stabilizer.
Show more
Required if you have selected the NX2 Steering Stabilizer w/o Factory Mount.
No Thanks
Single Steering Stabilizer Bracket Kit
Show more

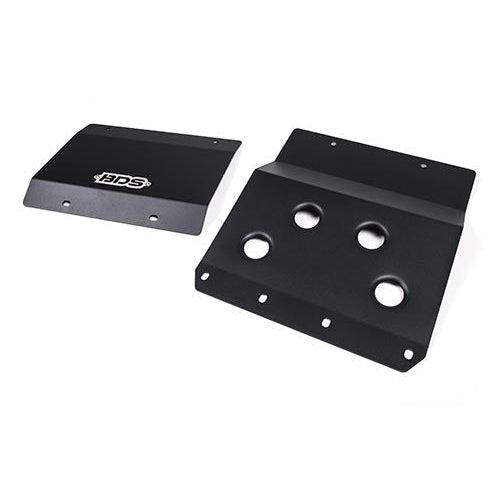

This new skid plate kit was developed as an OE upgrade to work with our 2-3 inch Coil-over Conversion System for the 2011-18 Chevy 2500HD. The kit includes a replacement skid plate and a front splash guard. These are made from 10ga steel and are much stronger than the factory components. The plates bolt to the factory skid locations with the factory hardware making installation a breeze. The front splash guard includes a stainless steel BDS nameplate. Dimple die holes in the bottom skid add rigidity.
No Thanks
Skid Plate Kit
Show more
BDS RECOIL traction bars are built to the highest standards for the ultimate performance on and off-road. The bars are fabricated from 2" OD x 3/16" wall steel tubing with a threaded bung welded in toward the axle and a CNC machined end at the frame. The axle mount uses the tried and true BDS large forged flex end and jam nut to take whatever abuse you throw at it. BDS forged flex ends use a forged housing with a large 1-1/4" -12 threaded shank, single-sided snap ring, and 1-piece flex ball for up to 15-degrees of misalignment in either direction. At the frame end, the bar uses a durometer-specific polyurethane bushing installed that free floats in the traction bar utilizing dual-stage internal compression springs and UHMW polyurethane bearings. Both ends are greaseable and rebuildable. Fully assembled the RECOIL traction bars are 60" long and mount to the vehicle using fabricated 1/4" steel brackets.
No Thanks
Universal Recoil Traction Bar
Show more
Required if you have selected the Recoil Traction Bar.
No Thanks
Traction Bar Mounting Kit
The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.
Note:
- Bracket kits are vehicle specific.
Show more
The BDS spanner wrench for BDS Fox 2.5 Coil-overs features a unique design that uses a 1/2" ratchet or 1/2" breaker bar as the handle. Using a ratchet allows the spanner wrench to function in multiple positions making it much easier to use in tight IFS suspension setups. The spanner wrench is a pin-style design that is precision machined to fit in the Fox adjustment collar holes. This precise fit provides the best grip and reduces the chance of damage to the tool, adjustment collar, and your knuckles. The tool was designed for ease of use and includes user instructions.
No Thanks
Universal Coilover Spanner Wrench
Show more
