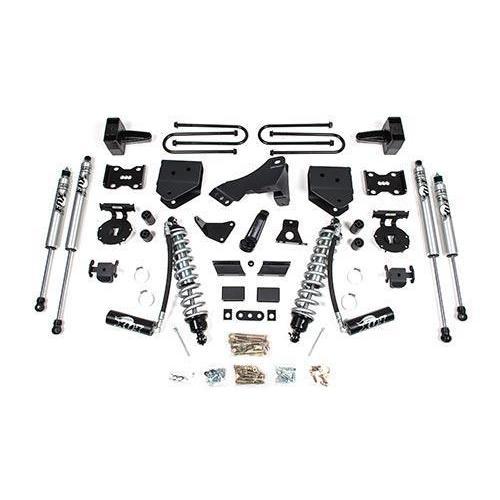

2011-2016 Powerstroke 4" Coilover Lift Kit (BDS588F)
Coilover converts your Powerstroke from the original Coil spring front end to a Coilover setup greatly increasing your control and versatility of your truck. This system is based on the standard 4" lift kit, upgraded to include the FOX 2.5 factory series Coilovers, they use a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs, 6061-T6 billet aluminum ends, and specially formulated race-proven oil. The threaded body is easily adjustable to dial in ride height to compensate for accessories like heavy winch bumpers. Designed to take your Super Duty to the next level with improved handling and shock performance over high-speed off-road terrain while still offering smooth on-road comfort.
Tire & Wheel Combinations:
- 35" x 12.50" w/ 17 x 9 and 4.5"
- 35" x 12.50" w/ 18 x 9 and 4.5"
- 35" x 12.50" w/ 20 x 9 and 4.5"
Notes:
- Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for the level to tail high stance. Single add-a-leaf kit # 113218 is recommended for a more level stance - Dual add-a-leaf kit # 113209 is recommended for tail high stance. (Add-A-Leafs do not apply to rear leaf spring equipped systems)
- If equipped with a 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required.
- Although extremely rare, front and/or rear driveline vibration may occur.
- If equipped with a rear sway bar, #123009 is required.
- U-bolts will not work on dually models.
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS588F
Fox 2.5 Series Remote Reservoir Coilover
The new coil-over conversion setup for the 2.5" & 4" lift heights utilizes the factory coil bucket and an included integrated upper and lower coil-over mount bracket system. The installation of the upper bracket requires minor modification to the factory coil mount. This system is now available as a stand-alone kit for those looking to upgrade an existing coil spring or spacer kit.
Show more
Coilover Mounting Kit
This Box Kit includes the following products:
- 2 Lower Coilover Mounts
- 2 Upper Coilover Mounting Brackets
- 6 Zip Ties
- 2 Bolt Packs
Show more
4" Front Kit
This Box Kit includes the following products:
- 2 Radius Arm Drop Brackets
- 3 Bolt Packs
- Track Bar Bracket
- Track Bar Bracket Spacer
- 2 Cam Washers
- Driver & Passenger Side Sway Bar Drop Bracket - (4" & 6" Lift)
- Driver & Passenger Side Front Brakeline Bracket - (6" Lift)
- 2 Bump Stop Spacers
- 2 8mm-1.25 x 130mm bolts
- 2 5/16" SAE Flat Washers
- Steering Stabilizer Bracket
- 2 Steel Stabilizer Spacers
- Bolt Pack - Stabilizer
- Pitman Arm
- 2 Zip Ties
Show more
5" Block Kit w/ or w/o Overloads
This Box Kit includes the following products:
- 2 5” Rear Blocks
- 2 Spring Plates
- 343581500RB 4 U-Bolts
- 8 U-Bolt Flange Nuts
Show more
3-4" Lift Leaf Spring (2x)
- BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload-equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.
Show more
Required if you have selected full Leaf Spring Replacements.
No Thanks
Leaf Spring Box Kit
Show more
IMPORTANT NOTE:
- If you chose "Rear Leaf Springs" during the Rear Lift Options selection, choose "No Rear Add-A-Leaf Kit" and continue to the next selection. This option only applies to "Rear Block Kit" equipped systems.
- When building your system with the "Rear Block Kit" option, models equipped with a factory 3-7/8" block require an optional add-a-leaf kit to achieve a level to tail high stance. On these models, we recommend adding a single add-a-leaf kit # 113218 for a more level stance - Dual add-a-leaf kit # 113209 is recommended for tail high stance.
No Thanks
Single Add-A-Leaf
Does the rear of your truck need a little extra boost? The BDS Add-a-Leaf kits are the perfect answer. This kit comes with complete instructions, new center pins, and new leaf alignment clamps. Order one kit per axle. Add-A-Leaf kits are sold as pairs except for dual add-a-leaf kits which are sold in sets of four.
U-bolts are not included in add-a-leaf purchases but are listed here for reference. The u-bolts listed may be longer than necessary for add-a-leaf installation. U-bolts sizes were based on maximum OE leaf packs which can vary widely due to towing packages, GVWR variations, etc.
Show more
Dual Add-A-Leaf
Does the rear of your truck need a little extra boost? The BDS Add-a-Leaf kits are the perfect answer. This kit comes with complete instructions, new center pins, and new leaf alignment clamps. Order one kit per axle. Add-A-Leaf kits are sold as pairs except for dual add-a-leaf kits which are sold in sets of four.
U-bolts are not included in add-a-leaf purchases but are listed here for reference. The u-bolts listed may be longer than necessary for add-a-leaf installation. U-bolts sizes were based on maximum OE leaf packs which can vary widely due to towing packages, GVWR variations, etc.
Show more
Important: With the Coilovers & the Mounting kit provided, you have the option of keeping the factory location shocks or upgrading to Fox 2.0.
No Thanks
Fox 2.0 Series Shocks (2x)
Show more
Fox 2.0 Series Shocks (2x)
Show more
No Thanks
NX2 Single Steering Stabilizer
Steering Dampers may differ from the installation image.
Note:
- Will fit stock height vehicles.
Show more
Required if you have selected Single or Dual Steering Stabilizers.
No Thanks
Single Steering Stabilizer Bracket Kit
Show more
BDS RECOIL traction bars are built to the highest standards for the ultimate performance on and off-road. The bars are fabricated from 2'' OD x 3/16'' wall steel tubing with a threaded bung welded in toward the axle and a CNC machined end at the frame. The axle mount uses the tried and true BDS large forged flex end and jam nut to take whatever abuse you throw at it. BDS forged flex ends use a forged housing with a large 1-1/4'' -12 threaded shank, single-sided snap ring, and 1-piece flex ball for up to 15-degrees of misalignment in either direction. At the frame end, the bar uses a durometer-specific polyurethane bushing installed that free floats in the traction bar utilizing dual-stage internal compression springs and UHMW polyurethane bearings. Both ends are greaseable and rebuildable. Fully assembled the RECOIL traction bars are 55'' long and mount to the vehicle using fabricated 1/4'' steel brackets.
No Thanks
Universal Recoil Traction Bar
Show more
The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.
Note:
- Required if you have selected Traction Bar Box Kit
- Bracket kits are vehicle specific
- Will Not Fit Dually Models
- Fits Short Box Models Only
No Thanks
Recoil Traction Bar Mounting Kit
Show more
This heavy-duty adjustable track bar mimics the shape of the factory track bar. The bar mounts in the factory locations or works with any aftermarket relocation bracket that was designed for use with the stock track bar. The bar is adjustable via a central turn-buckle. This means the bar length can be adjusted while still mounted in the vehicle. The turn-buckle locks with pinch bolts and not jam nuts that can sometimes work free. The bar itself is made from 1-1/2" solid steel bar stock that is precision machined, formed, and welded. Threads are massive 1-3/8"-12 for superior strength. The bar ends are fully welded and gusseted for added strength. The frame end uses high-durometer polyurethane bushings that are greaseable while the axle end utilizes the factory ball joint mount.
No Thanks
Adjustable Front Track Bar
Show more
These shims are designed to improve rear driveline angle on trucks equipped with a 2-piece rear driveshaft to eliminate any potential driveline vibrations. Not needed on trucks equipped with a 1-piece rear driveshaft.
No Thanks
Driveshaft Alignment Kit
Show more
No Thanks
Anti-Sway Bar Link Kit
Show more
Features:
- Kevlar lined Stainless Steel Braided Brake Lines
- Virtually no volumetric expansion Firmer brake pedal feel with less pedal effort.
- Hose assemblies comply with D.O.T. Federal regulations (MVSS-106) Legal for street use in all 50 States.
- Teflon inner core (chemically inert) Approved for use with all brake fluids, including D.O.T. 5 Silicone.
- Resists moisture, Very flexible.
- Five-layer construction Rugged construction that resists road shock and hazards.
- Higher fitting pull-off than other D.O.T. assemblies.
- Standard SAE female fittings and ends Utilize standard brake fittings and hardware.
- PN# 102009 - Will NOT work on 2012+ trucks.
No Thanks
23" Front Brake Line
Show more
Features:
- Kevlar lined Stainless Steel Braided Brake Lines
- Virtually no volumetric expansion Firmer brake pedal feel with less pedal effort.
- Hose assemblies comply with D.O.T. Federal regulations (MVSS-106) Legal for street use in all 50 States.
- Teflon inner core (chemically inert) Approved for use with all brake fluids, including D.O.T. 5 Silicone.
- Resists moisture, Very flexible.
- Five-layer construction Rugged construction that resists road shock and hazards.
- Higher fitting pull-off than other D.O.T. assemblies.
- Standard SAE female fittings and ends Utilize standard brake fittings and hardware.
- PN# 102009 - Will NOT work on 2012+ trucks.
No Thanks
23" Rear Brake Line
Show more
Need a little extra bumper clearance to fit those new tires? This kit will move your front bumper forward 3/4".
No Thanks
Front Bumper Spacer
Show more
IMPORTANT: Will ONLY fit trucks with a 4 bolt flange style rear driveshaft mount on the axle.
When lifting the 2011-2020 model Ford Super Duty 6" or more it may be necessary to extend the rear driveshaft to ensure adequate spline engagement at full droop of the suspension. While one option is to have a custom extended length driveshaft built, BDS Suspension is now offering a more affordable solution with their new high strength rear driveshaft spacer. Built from T6061 billet aluminum and CNC machined for a precision fit, this rear driveshaft spacer mounts between the driveshaft and rear axle providing the necessary driveshaft spline engagement. Longer hardware and thread locker are also supplied complete the simple install.
