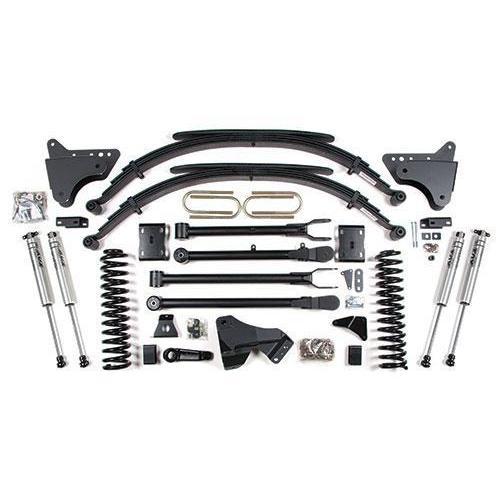

2011-2016 Powerstroke 4" 4 Link BDS Conversion Lift Kit (BDS590H)

This BDS system converts your truck to a 4" lifted 4-Link setup monster! The full replacement 4-Link system is centered around 4 massive control arms featuring greaseable ends and is set up to correct the alignment tire placement inside the wheel well, while reducing caster change through wheel travel creating a more controlled feel both on and off-road.

Tire & Wheel Combinations:

  • 35" x 12.50" w/ 17 x 9 and 4.5"
  • 35" x 12.50" w/ 18 x 9 and 4.5"
  • 35" x 12.50" w/ 20 x 9 and 4.5"

Notes:

  • Removal of factory block required. Net rear lift height will vary depending on the height of the factory block but will result in a level stance.
  • Front exhaust modification may be required to clear the front driveshaft (gas only).
  • If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
  • Although extremely rare, front and/or rear driveline vibration may occur.
  • If equipped with a rear sway bar, #123009 is required.
  • U-bolts will not work on dually.

Installation:

Part Number: BDS590H

Base Kit


2005-2017 Powerstroke 4" Front Coil Springs (Pair) (BDS033411)-Coil Springs-BDS-BDS033411-Dirty Diesel Customs

4" Front Coil Springs


Show more

2005-2019 Powerstroke 4" Lift Front Fox 2.5 Remote Reservoir Coilovers (Pair) (FOX88402149)-Shocks-BDS-FOX88402149-Dirty Diesel Customs

Fox 2.5 Series Remote Reservoir Coilovers

The new coil-over conversion setup for the 2.5" & 4" lift heights utilizes the factory coil bucket and an included integrated upper and lower coil-over mount bracket system. The installation of the upper bracket requires minor modification to the factory coil mount. This system is now available as a stand-alone kit for those looking to upgrade an existing coil spring or spacer kit.

Show more

BDS 05-20 Ford F250/F350 Front Coilover, 2.5 Series, R/R 4" Lift, DSC (FOX88406149)-BDS-FOX88406149-Dirty Diesel Customs

Fox 2.5 Series Remote Reservoir Coilovers w/ DSC

The new coil-over conversion setup for the 2.5" & 4" lift heights utilizes the factory coil bucket and an included integrated upper and lower coil-over mount bracket system. The installation of the upper bracket requires minor modification to the factory coil mount. This system is now available as a stand-alone kit for those looking to upgrade an existing coil spring or spacer kit.

Show more

Coilover Mounting Kit

Required if you have selected Coilovers for the Front Lift.

2005-2016 Powerstroke 2.5-8" Lift Coilover Mount kit (BDS123212)-Shock Mount-BDS-BDS123212-Dirty Diesel Customs

Coilover Mounting Kit


Show more

Rear Lift Option


5" Rear Block Kit


Show more

2008-2016 Powerstroke 3-4" Lift Rear Leaf Spring (BDS003629)-Leaf Springs-BDS-BDS003629-Dirty Diesel Customs

3-4" Lift Leaf Spring (2x)

Show more

Leaf Spring Box Kit

Required if you have selected full Leaf Spring Replacements

Rear Leaf Spring Box Kit

Show more

Add A Leaf

IMPORTANT NOTE: If you chose "Rear Leaf Springs" during the Rear Lift Options selection, choose "No Rear Add-A-Leaf Kit" and continue to the next selection. This option only applies to "Rear Block Kit" equipped systems.


When building your system with the "Rear Block Kit" option, models equipped with a factory 3-7/8" block require an optional add-a-leaf kit to achieve a level to tail high stance. On these models, we recommend adding a single add-a-leaf kit # 113218 for a more level stance - Dual add-a-leaf kit # 113209 is recommended for tail high stance.

No Thanks
