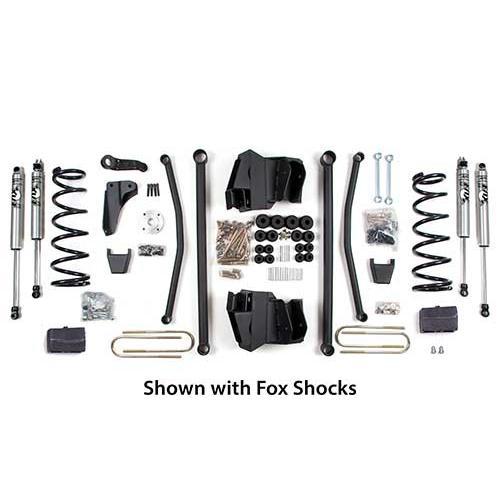

2008 Cummins Long Arm 8" 4-Link Lift Kit (BDS641H)
Lifting your truck with some lift kits can sometimes make the driving dynamics like walking on stilts after a couple of wobbly pops. This is unfortunate because you want your lift kit to give you the stance while not sacrificing drivability! That's where the BDS Suspension 8" Long Arm Kit for the 2008 Cummins comes in. All components in this kit aid in reducing caster change, increasing control, stability, steering angles, & are powder coated for long-term performance.
Tire & Wheel Combinations:
- 38" x 14.0" w/ 17 x 9 and 4.5"
Notes:
- Measure rear axle tube before ordering. Some models with dual overloads will require 406
- Rear lift options will not fit dually applications.
- Exhaust modification will be required for dual rear shock kit 12200
- 2500 Gas models will require modification to the front exhaust crossover pipe on the driver side for proper clearance when a transfer case indexing ring kit is installed
- Will not fit Cab and Chassis models
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS641H

8" Front Coil Springs
Show more
Long Arm Box Kit
This Box Kit includes the following products:
- Pitman Arm
- Track Bar Bracket
- 3 Bolt Packs
- 2 Sway Bar Links
- 2 Driver & Passenger Side Sway Bar Mounts
- 2 Driver & Passenger Brakeline Adaptors
- 2 Bump Stop Brackets
- 2 Urethane Bumps Stops
- 2 Steering Stop - Weld On
- 2 Sway Bar Link U-Brackets
- 2 5/8” ID Hourglass Bushings
- 2 3/4” ID Wide Hourglass Bushings
- 2 .625 x .109 x 1.375 Sleeves
- 2 .750 x .090 x 1.575 Sleeves
- Bolt Pack - Sway Bar Hardware
- Bolt Pack - Misc. Hardware
- Bolt Pack - Bumper Spacer
- Rear Brakeline Bracket
- Front Driveshaft Spacer
- Bolt Pack - Driveshaft
Show more
Control Arm Box Kit
This Box Kit includes the following products:
- Driver & Passenger Upper Control Arm
- 2 Lower Control Arm
- 8 UCA Bushing - 3/4” ID
- 4 LCA Bushing - Axle
- 4 LCA Bushing - Frame
- 4 UCA Sleeves .750 x .095 x 2.33
- 2 LCA Sleeves 1.00 x .1875 x 2.60
- 2 LCA Sleeves 1.00 x .120 x 3.25
- 8 90 Degree Grease Zerks
Show more
Control Arm Mounting Kit
This Box Kit includes the following products:
- Driver & Passenger Side Long Arm Bracket
- Bolt Pack
Show more
5" Rear Block Kit - (4" Axle Tube)
This Box Kit includes the following products:
- 2 5" Bump Stop Blocks
- 2 Leaf Pins
- 4 9/16 x 4 x 16-1/4 Round U-Bolts
- 8 9/16 SAE Flat Washers
- 8 9/16 Fine High Nuts
Show more
5" Rear Block Kit - (3.5" Axle Tube)
This Box Kit includes the following products:
- 2 5" Bump Stop Blocks
- 4 9/16 x 3-1/2 x 14-1/2 Round U-bolts
- 8 9/16 SAE Flat Washers
- 8 9/16 Fine High Nuts
- 2 Leaf Pins
Show more

5" Lift Leaf Spring - (3.5" & 4" Axle Tube) (2x)
BDS Glide-Ride leaf springs will reduce axle wrap and create a more controlled and stable feel when towing. The actual leaf spring may not be exactly as shown in the photo. Includes OE-style bushings installed.
Show more
Required if you have selected full Leaf Spring Replacements.
Important: Measure your rear axle & select the appropriate kit.

U-Bolts - (3.5"X12.5") (4x)
Show more

U-Bolts - (4"X12.5") (4x)
Show more
