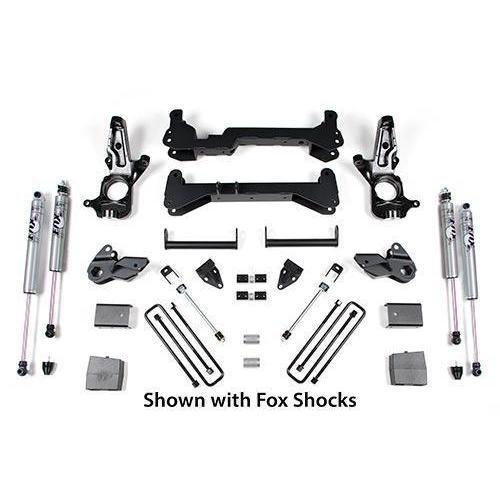

2001-2010 Duramax 2WD 7" Lift Kit (BDS149H)

Take your Duramax to a whole new level with this 7" Lift kit from BDS Suspension. Whether you're building a Pre-Runner setup or a work truck you want to make sure the parts you get for your truck are the best in the business. This lift kit is based around two one-pieces, 1/4" laser cut high clearance crossmembers, and replacement steering knuckles.

Tire & Wheel Combinations:

  • 35" x 12.50" w/ 16 x 8 and 4.5"
  • 35" x 12.50 w/ 17 or 18 x 9 and 5.5"
  • 35" x 12.50" w/ 20 x 9 and 5.75"

Notes:

  • A special tool is required to unload/load the torsion bars.
  • Will not fit non-HD applications.
  • The 2WD HD was produced with two different styles of carrier-bearing crossmembers; If the carrier bearing is mounted above the crossmember, use 12161. If the carrier bearing is mounted below the crossmember, use 121612.

Installation:

Part Number: BDS149H

Carrier Bearing Drop Kit


Carrier Bearing Drop Kit

Choose this option if your rear driveshaft carrier bearing is mounted above the crossmember.


Show more

2011-2017 GMC/ Chevrolet Carrier Bearing Drop Kit (BDS121612)-Carrier Bearing Drop-BDS-BDS121612-Dirty Diesel Customs

Carrier Bearing Drop Kit

Choose this option if your rear driveshaft carrier bearing is mounted below the crossmember.

Show more

Front Box Kit (1 of 3)


Front Box Kit


Show more

Front Box Kit (2 of 3)


Front Box Kit

This Box Kit includes the following products:

  • Driver & Passenger Side Torsion Bar Bracket
  • 2 Brace Tubes
  • Front Crossmember

Show more

Front Box Kit (3 of 3)


Front Box Kit

This Box Kit includes the following products:

  • Rear Crossmember
  • Bag Kit
  • 5 Bolt Packs
  • Bag Kit
  • 2 Aluminium Spacer
  • Loctite
  • 6 Zip Ties
  • 2 Front & Rear Bump Stops
  • 2 Bump Stops
  • 2 Sway Bar Links
  • Bag Kit - Sway Bar Kit
  • 2 Sway Bar Link Brackets
  • 6 Bushings
  • 2 Sleeves
  • 4 Washers

Show more

Rear Lift


5" Rear Box Kit


Show more

Front Shocks


NX2 Series Shocks (2x)

The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.


Show more

2001-2010 Duramax 7" Lift Front Fox 2.0 Series Shock Absorber (FOX98224606)-Shocks-BDS-FOX98224606-Dirty Diesel Customs

Fox 2.0 Series Shocks (2x)

Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.

Show more

Rear Shocks
