Description
Fits
| Year |
Make |
Model |
| 2001-2010 |
Chevy / GMC |
1 Ton Truck 2WD |
| 2001-2010 |
Chevy / GMC |
3/4 Ton Truck 2WD |

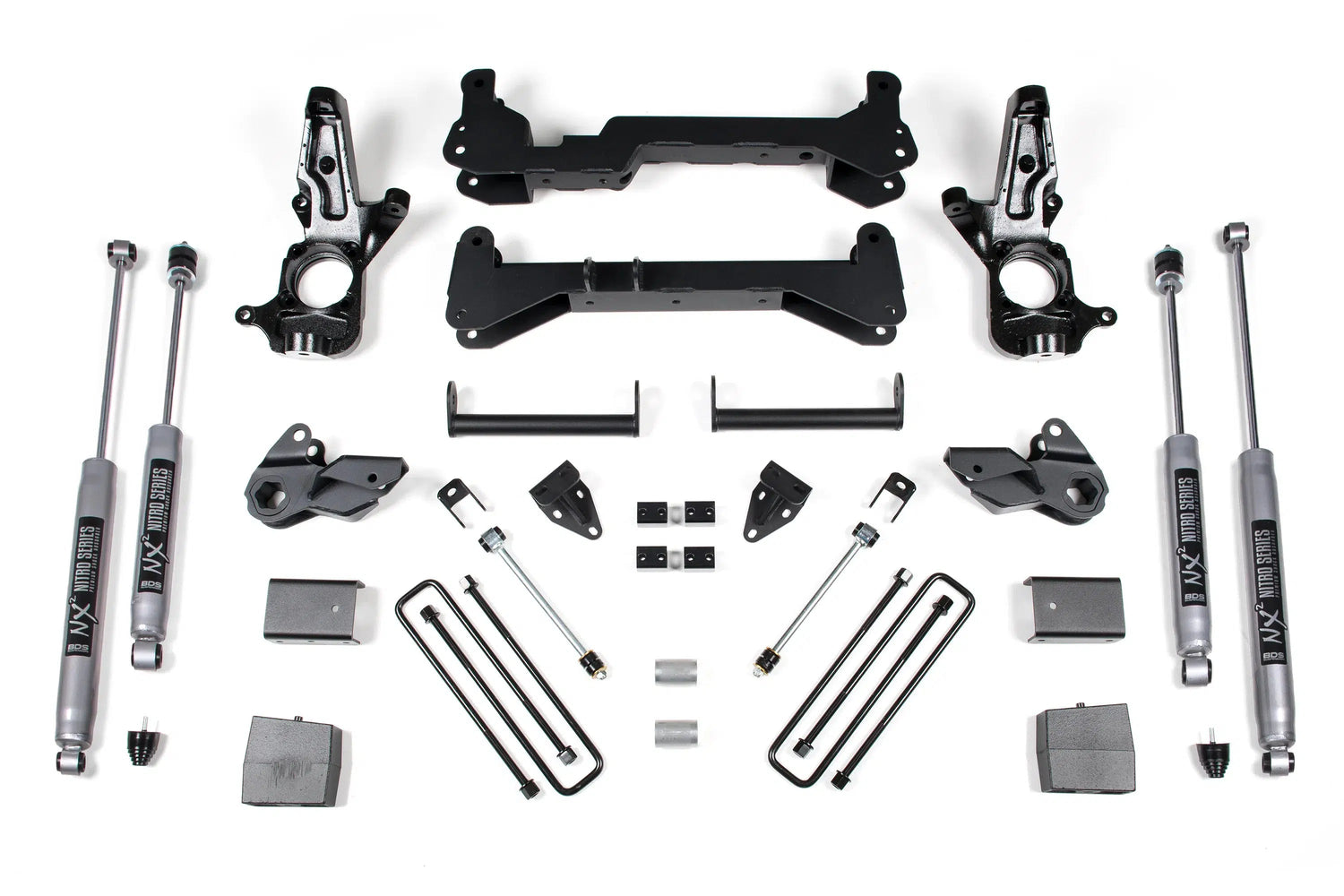

Take your Duramax to a whole new level with this 7" Lift kit from BDS Suspension. Whether you're building a Pre-Runner setup or a work truck you want to make sure the parts you get for your truck are the best in the business. This lift kit is based around two one-pieces, 1/4" laser cut high clearance crossmembers, and replacement steering knuckles.
Part Number: BDS149H
Features
-
1/4" laser cut High Clearance crossmembers
- Compression Struts
- Replacement Steering Knuckles
- 5" Rear Block Kit
- NX2 Series Shocks
- Up to 35" Wheels
Tire & Wheel Combinations:
- 35" x 12.50" w/ 16 x 8 and 4.5"
- 35" x 12.50 w/ 17 or 18 x 9 and 5.5"
- 35" x 12.50" w/ 20 x 9 and 5.75"
Notes
- A special tool is required to unload/load the torsion bars.
- Will not fit non-HD applications.
- The 2WD HD was produced with two different styles of carrier-bearing crossmembers; If the carrier bearing is mounted above the crossmember, use 12161. If the carrier bearing is mounted below the crossmember, use 121612.

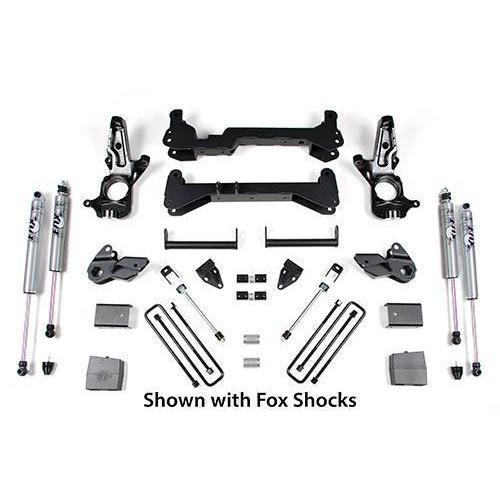

- Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
Installation
