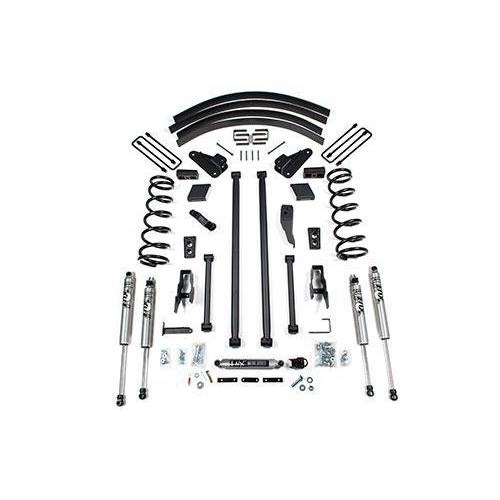

1994-1999 Cummins 4.5" Long Arm Lift Kit (BDS213H)
Keep it riding tall and true with this BDS Suspension 4.5" Long Arm Kit. This lift kit will greatly improve your truck's stance on the road, but it won't leave your truck unpleasant to drive. Longarm kits are a great design because they reduce caster change as the wheel travels up and down. This might not make the biggest difference on a perfectly smooth main street, but on the heaves and droops of a highway and taking your truck out on the trails, you'll appreciate the added control!
Tire & Wheel Combinations:
- 35" x 12.50" w/ 16 x 8 and 4"
Notes:
- For models built after February 9, 1994, due to track bar stud size.
- May require exhaust modification
- A dual stabilizer may be substituted for the single stabilizer that comes in the kit.
- These vehicles were produced with and without a top-mounted overload spring. You will need to identify which your vehicle has before ordering.
- Pictured with an additional rear spring option. Rear spring option NOT included
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS213H
6" Front Coil Springs
Show more
Long Arm Kit
This Box Kit includes the following products:
- 2 Bump Stops
- Upper & Lower Control Arms
- Driver & Passenger Sway Bar Drop Brackets
Show more
Long Arm Kit
This Box Kit includes the following products:
- Pitman Arm
- Driver & Passenger Long Arm Bracket
- Track Bar Bracket
- Driver & Passenger Side UCA Relocation Bracket
- 8 7/8” ID LCA Bushings
- 8 UCA Bushings
- 2 1/4”-28 Grease Zerks
- 6 90° 1/4-28 Grease Zerks
- Flat Brake Line Drop
- 2 Brake Line Drop w/ Tabs
- Brake Line U Drop Bracket
- Track Bar Washer
- Loctite
- 2 3/4” x .120” x 2-3/8” Sleeves
- 4 7/8” x .120” x 2-1/2” Sleeves
- 4 3/4” x .134” x 2-1/4” Sleeves
- 5 Bolt Packs
Show more
The system is available with either the standard block & add-a-leaf kit or replacement BDS Glide-Ride Springs. If choosing the rear block & add-a-leaf option, be sure to check if your vehicle is equipped with a top-mounted overload spring or not. The top-mounted overload spring requires a different rear block & add-a-leaf kit.
Please make the appropriate selection.
4.5" Rear Block & Add-A-Leaf Kit w/o Overload
Show more
4.5" Rear Block & Add-A-Leaf Kit w/ Overload
Show more
4.5" Lift Leaf Spring (2x)
Show more
No Thanks
Rear Block Kit
Show more
NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
NX2 Series Single Steering Stabilizer
Show more
Fox 2.0 Series Dual Steering Stabilizer (2x)
A dual steering stabilizer greatly increases control and reduces unwanted steering wheel shimmy. Choose this option to add dual Fox 2.0 series steering stabilizers.
Note:
- Some 2500 trucks came with a heavy-duty front axle with a larger diameter axle. Measure 2500s first before ordering.
- 1994-2002 Ram 1 Ton trucks MUST HAVE 3" Front Axle. MEASURE BEFORE ORDERING.
Show more
Required if you have selected Dual Steering Stabilizers.
Dual Steering Stabilizer Bracket Kit
Show more
No Thanks
Carrier Bearing Drop Kit
Show more
No Thanks

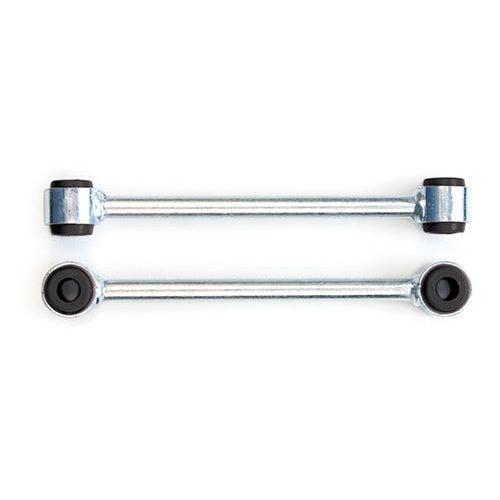

Sway Bar Links
Show more
