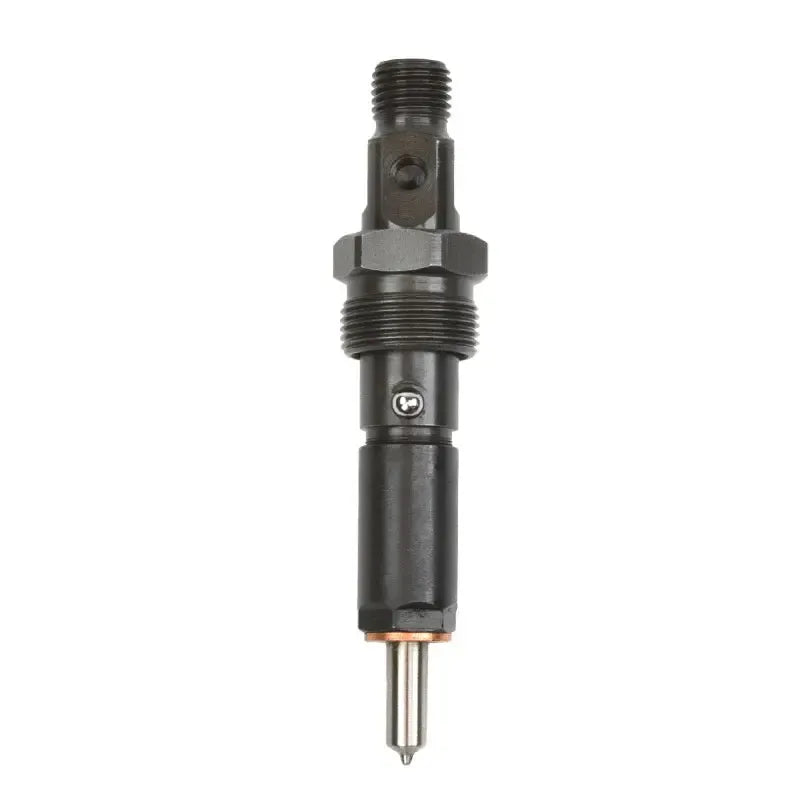

1994-1998 Cummins R6 6 x. 022 140° Injector (SAC) (0432131715-R6)

Bosch R6 SAC race injector for 1994-1998 Dodge Ram 2500/3500 5.9L 12V Cummins. 6 x .022 nozzle with a 140° spray angle — the largest in the R-series progression, built for extreme race and pulling builds in the 1200-1400 HP window where even the R5 6x.020 is leaving fuel on the table.

Built strictly for competition. The 6x.022 nozzle delivers the fuel volume a 1400 HP build needs at race RPM, with the SAC tip geometry and 140° spray angle holding atomization together at the rail pressure these builds run. This is the end of the 12V P7100-style injector line — beyond this, builds typically move to common-rail platforms.

Requires a 13mm Dragon Flow Pump to feed properly — the supporting fueling has to be there to make this injector size useful. Sold individually so you can buy six for a full set or one for a single replacement.

• Bosch R6 SAC Performance Injector
• 6 x .022 Nozzle Size
• 140° Spray Angle
• Supports Up to ~1400 HP with Matched Pump & Turbo
• SAC Tip Geometry for High-Pressure Atomization
• Sold Individually — Six Required for Full Set
• For 1994-1998 Dodge Ram 5.9L 12V Cummins
• Part Number: 0432131715-R6

• Extreme race and pulling use only — not legal for road use.
• Requires a 13mm Dragon Flow Pump. Supporting fueling must be in place — this injector size is wasted on stock or undersized pumps.
• Optional .5mm nozzle washer for fine timing tune sold separately — see D3930324.
• Injector dust seal sold separately — see D3909356.

Don't see your question? Ask us anything about this product.

• ?

  Is the injectors sold individual?

  These are sold individually. The price listed is per injector.
