1989-1998 Cummins Injector Copper Washer (D3930324)
Purchase to earn 2 Dirty Dollars Learn More
Description
Description

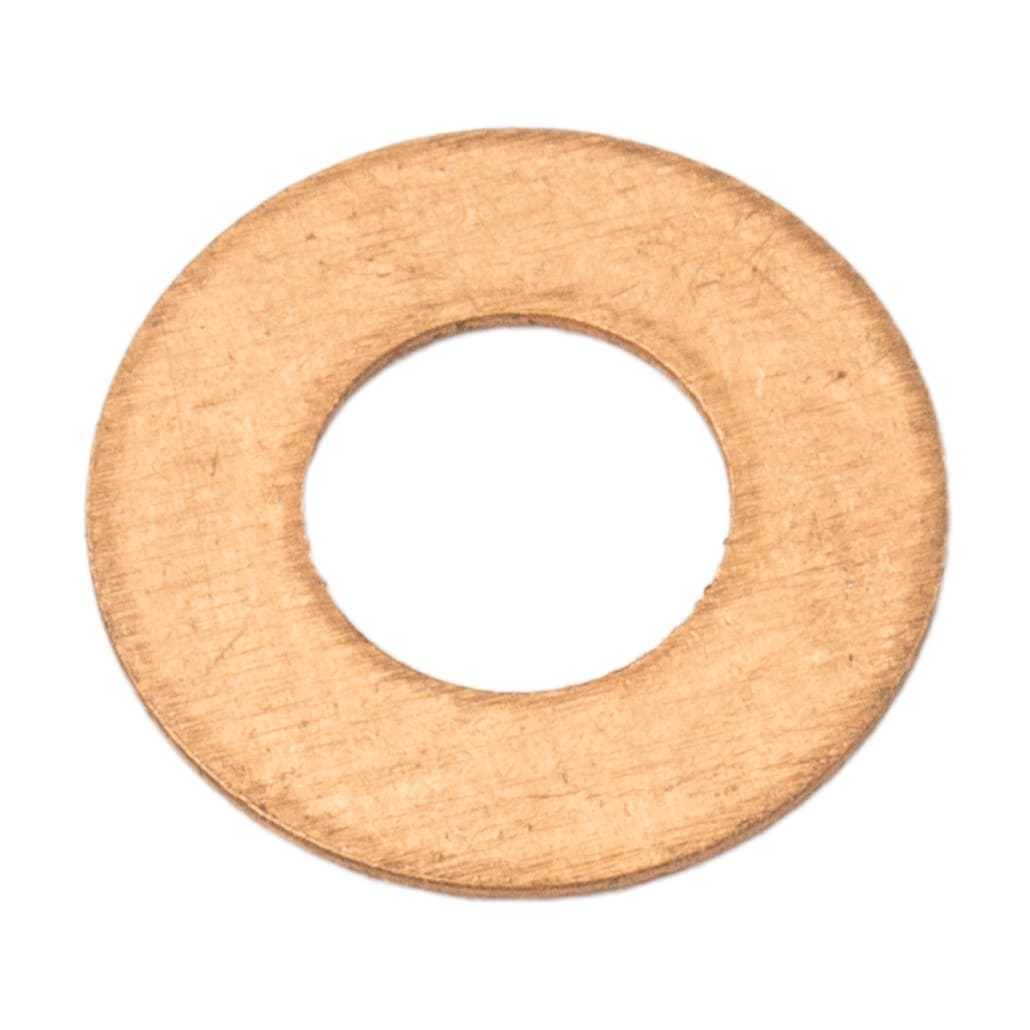

Copper injector seal washer for 1994-1998 Dodge 5.9L 12V Cummins engines (P7100 era). Single-use crush washer that seats between the injector body and the cylinder head — replace every time an injector is pulled, regardless of whether the injector itself is reused.
OE thickness is 0.5mm. A 1.5mm version (PAI-CUM3930324 / D3920174) is available separately for builds where the head has been decked or the injector tip needs additional shimming for proper protrusion.
Features
Features
- 0.5mm Copper Injector Seal Washer
- Single-Use Crush Design
- For 12V P7100-Era Cummins Injectors
- Part Number: D3930324 (1.5mm variant: D3920174 / PAI-CUM3930324)
Notes
Notes
- Replace on every injector R&R. Reusing a crushed copper washer will cause combustion leaks past the injector seat.
- If the head has been decked, use the 1.5mm variant (D3920174) to restore correct injector protrusion.
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
Looking to order 6 of these. I would like just stock thickness washers. Would that be the 1.5mm?
Correct!
