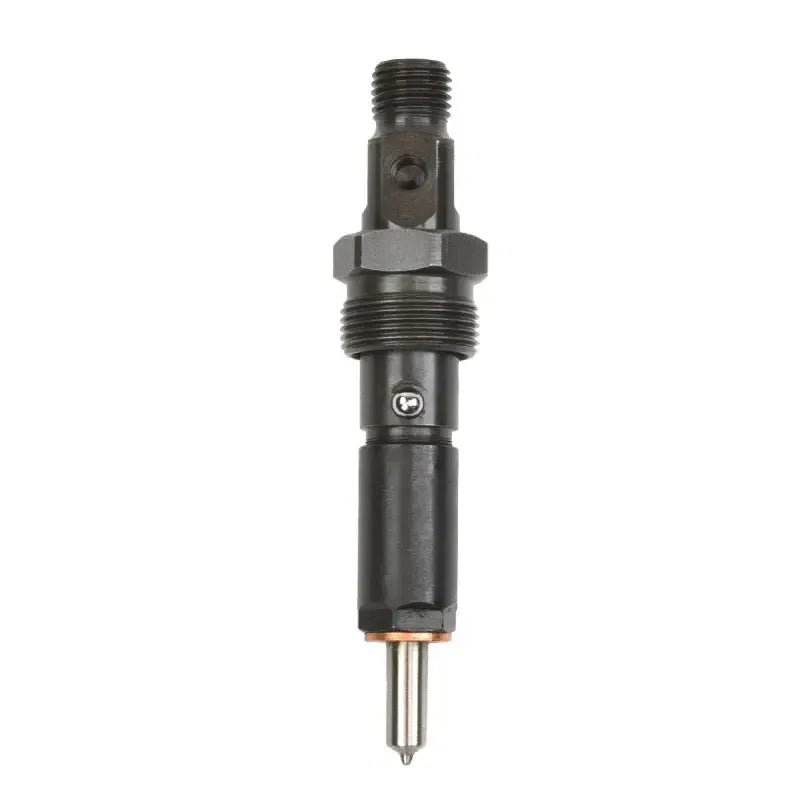

1994-1998 Cummins R5 6x.020 140° Injector (SAC) (0432131715-R5)

Bosch R5 SAC race injector for 1994-1998 Dodge Ram 2500/3500 5.9L 12V Cummins. 6 x .020 nozzle with a 140° spray angle — a step above the R4 6x.018 for high-output race and pulling builds in the 1000-1200 HP window, with the larger nozzle area to support the increased fuel volume.

Built for extreme race and pulling use. The 6x.020 nozzle and 140° spray angle keep atomization tight at high rail pressures while delivering the fuel volume a 1200 HP build needs. This is not a daily driver injector — both idle quality and emissions go out the window above the R2/R3 line.

Requires a 13mm Dragon Flow Pump to feed properly — even the 12mm Dragon Fly cannot keep up with the R5's fuel demand at race RPM. Sold individually so you can buy six for a full set or one for a single replacement.

• Bosch R5 SAC Performance Injector
• 6 x .020 Nozzle Size
• 140° Spray Angle
• Supports Up to ~1200 HP with Matched Pump & Turbo
• SAC Tip Geometry for High-Pressure Atomization
• Sold Individually — Six Required for Full Set
• For 1994-1998 Dodge Ram 5.9L 12V Cummins
• Part Number: 0432131715-R5

• Extreme race and pulling use only — not legal for road use.
• Requires a 13mm Dragon Flow Pump. Even the 12mm Dragon Fly cannot keep up with this injector size at race RPM.
• Optional .5mm nozzle washer for fine timing tune sold separately — see D3930324.
• Injector dust seal sold separately — see D3909356.
