2020-2021 Powerstroke DRW 6" Radius Arm Suspension Lift System - Fox 2.5 C/O (BDS1573F)-Lift Kit-BDS-BDS1573F-Dirty Diesel Customs

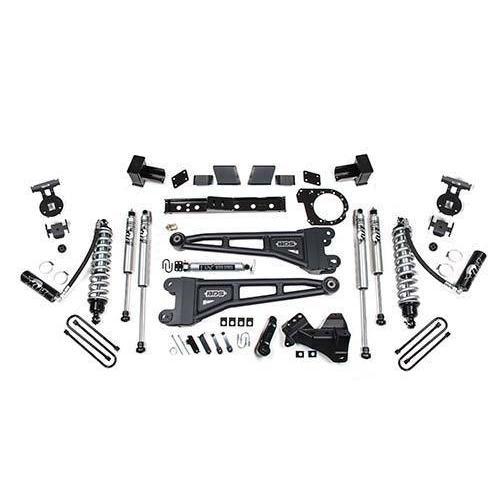

2020-2021 Powerstroke DRW 6" Radius Arm Suspension Lift System - Fox 2.5 C/O (BDS1573F)

BDS

Part Number: BDS1573F

Sale price$6,038.16 CAD

Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model
2020-2021 Ford F350 Super Duty DRW



BDS 6" radius arm lift systems with FOX 2.0 Series gas shocks & Remote Reservoir coilovers for your Ford Super Duty offer improved performance, capability, vastly superior damping capability to soak up the harshest terrains offroad while offering comfort for your daily commute, & quiet operation. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.

Part Number: BDS1573F

Features
  • High strength replacement Radius Arms to correct caster & control suspension
  • Forged Pitman arm
  • High clearance transmission crossmember
  • HD track bar bracket
  • Transfer case indexing ring to improve front driveline operating angle
  • Bump stop extensions
  • Mounting brackets
  • HD Trackbar relocation bracket
  • Brake line relocation brackets
  • Sway bar drop brackets
  • E-coated u-bolts
  • 5" Rear block
  • FOX 2.0 IFP performance gas shocks to improve ride & offroad performance
  • FOX 2.5 factory series remote reservoir coilovers
  • Allows clearance for 38" tires

Tire & Wheel Combinations:

  • 38x13.50 w/ 20x9 and 4.5-5"
  • 38x13.50 w/ 20x10 and 5"
Notes
  • Due to taller factory ride height, Tremor models will not net the full advertised lift height. The final right height will be the same as standard models.
  • Dually Diesel Models Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
  • 38 x 13.50 tires may require minor trimming.
  • The indexing ring has not been designed to work on manual-shift transfer case models. Modification to the shift cable mount will be required.
Installation
Warranty
  • Supplemental Drivetrain Limited Protection - 5 Year/60,000 Miles on Ford, Nissan, & Toyota vehicles and 5 Year/100,000 Miles on Dodge/Ram, GMC, & Jeep vehicles.
  • Free, no cost protection for BDS customers
  • Could save thousands of dollars on possible repairs
  • An easy online registration process
  • Available for most late-model vehicles
