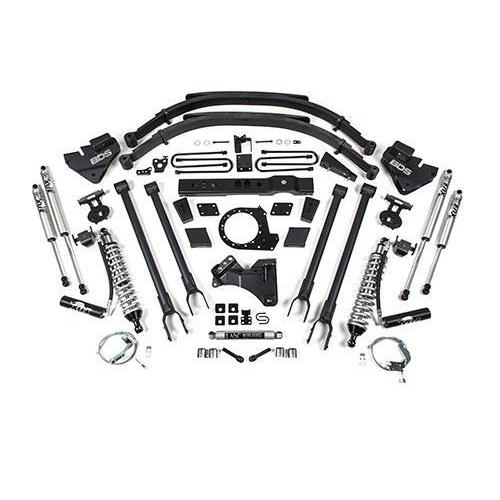

2017-2019 Powerstroke 8" 4-Link Coilover Lift Kit (BDS1541F)

Description

Click here to customize this Kit

Fits

BDS Suspension expands its lineup of suspension systems for the late model 2017-2019 Ford Super Duty 4wd trucks with new 8" 4-Link Coilover Conversion Systems designed to take your truck to the next level for improved performance, capability, comfort, and curb appeal. Paired with FOX's 2.5 factory series coilovers to enhance performance while allowing clearance for up to 40" tires.

Part Number: BDS1541F

Features

• FOX 2.5 Remote Reservoir Coilovers for next-level performance
• These new systems join the existing 1" - 2" - 2.5" - 4" - 6" - 8" lift options
• Pitman arm/trackbar bracket for steering correction
• 4-link conversion for improved strength/performance
• T-case indexing ring to improve front driveline angle
• Glideride replacement rear leaf springs
• Allows fitment of up to 40" tires

Tire & Wheel Combinations:

• 38 x 15.50 w/ 20x10 and 5"
• 40 x 13.50 w/ 20x10 and 5"

Notes

• Designed for diesel models only, the transfer case indexing ring will not fit gas models equipped with the 6R100 transmission.
• If equipped with a 2-piece rear driveshaft, a carrier bearing drop kit may be required (BDS123402)
• 40x13.50 tires WILL require trimming.
• If your truck is equipped with a factory rear sway bar add BDS123009
• The indexing ring has not been designed to work on manual-shift transfer case models. Modification to the shift cable mount will be required.

Installation

• Click Here For Installation Instructions
• Difficulty: 4 (where 1 = easiest and 5 = complicated)
