Description
Fits
Year |
Make |
Model |
2015-2020 |
Ford |
F150 4WD |

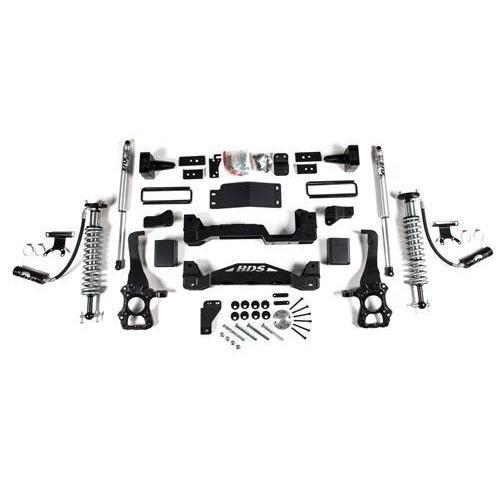

Take your F150 up a notch in strength, control, and stance with the BDS 6" Coilover lift kit! This Performance Coilover system brings together the safety and capability of BDS's 6'' lift kits with the uncompromising performance of Fox factory series 2.5 remote reservoir Coilovers and rear Fox 2.0 IFP shocks for a true blend of on-road comfort and off-road performance.
Part Number: BDS1532F
Features
- Fox factory series 2.5 remote reservoir Coilovers (pre-tuned to provide 6" of lift out of the box)
- Fox 2.0 IFP shocks
- Eibach coil springs
- HD differential skid plate
- 5" offset pin block kit
- Sway bar relocation brackets
- Alignment cam bolts
- CNC-machined ductile iron steering knuckles
- HD replacement ball joints
- Multipoint differential relocation brackets
- Billet aluminum driveshaft spacer
- Rear brake line extensions
- Clears 37's
- High clearance one-piece laser cut 1/4" steel cross members
- Retains OE driving dynamics
- Works with your factory stability control
Tire & Wheel Combinations:
- 37" x 12.50" w/ 18 x 9 and 5"
- 35" x 12.50" w/ 18 x 9 and 5"
- 37 x 12.50 w/ 20 x 9 and 5-5.5"
Notes
- Requires frame bracket modification.
- 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle.
- 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.
- The 4" blocks will net a level/tail LOW stance. And the 5" blocks will net a level/tail HIGH stance.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122405
- This kit is FMVSS No.126 Compliant with the NHTSA's Federal Motor Vehicle Safety Standard (FMVSS)
