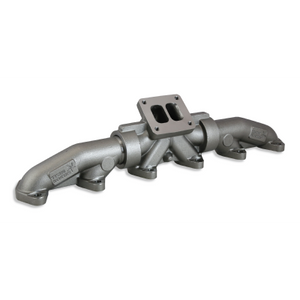

2013-2018 Cummins S400 Second Gen Turbo Kit w/ Manifold

Smeding Diesel LLC

Part Number: SMED-0263

Mfr Part Number:

Sale price$3,627.24 CAD

This product ships for free to most Canadian locations! Learn more.
(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Exhaust Housing Size:0.9
Turbocharger Size:S464/83 Cast
Quantity:
Addons



Description

Fits

 Year Make Engine
2013-2018
Dodge Ram
6.7L Cummins

All Smeding Diesel Parts are Built To Order in Texas and are special order which can take longer than normal for fulfillment. If you're in a rush, contact us and we can make special arrangements.

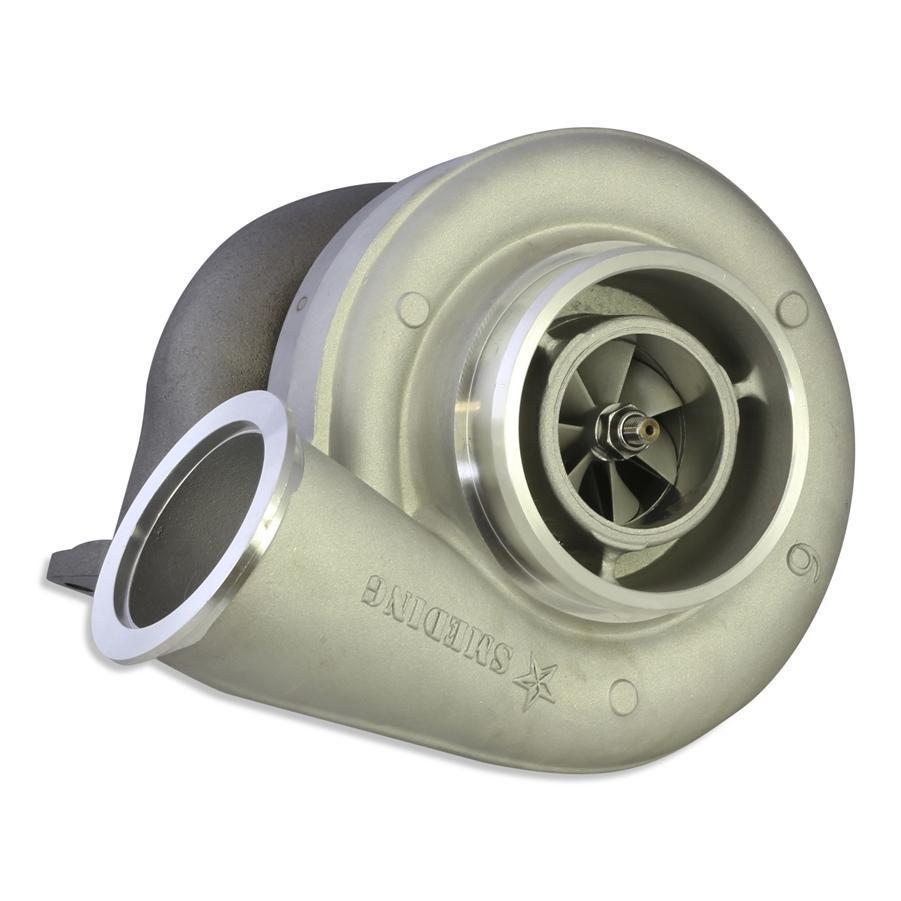

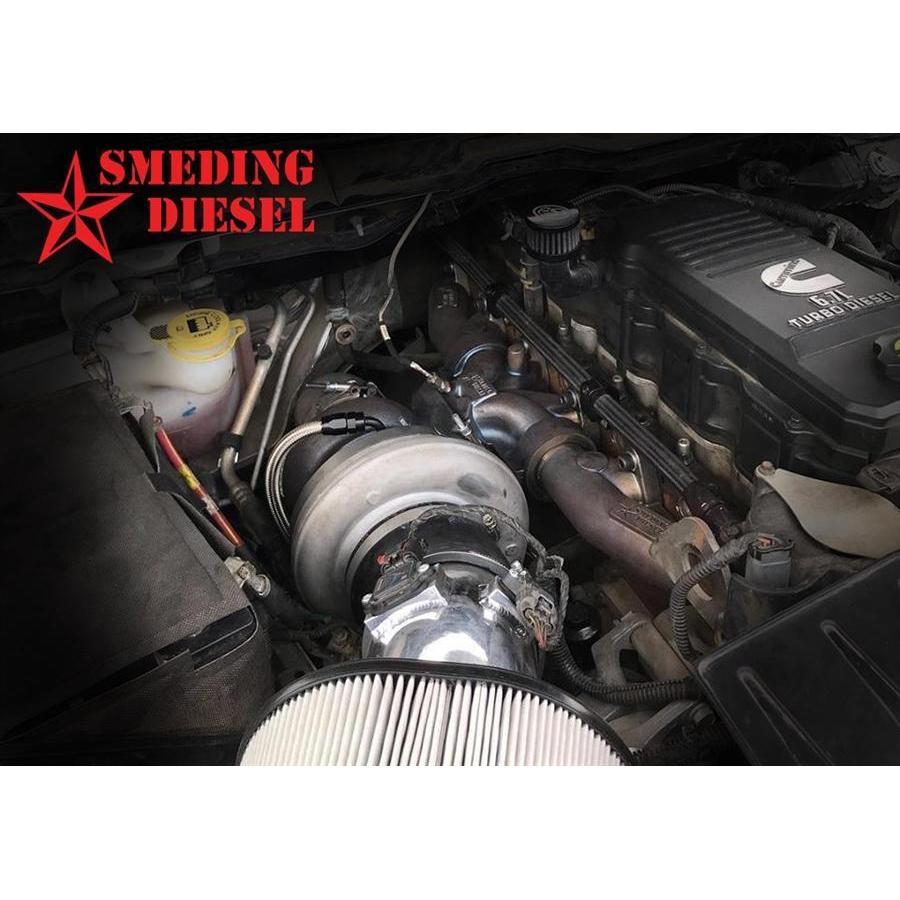

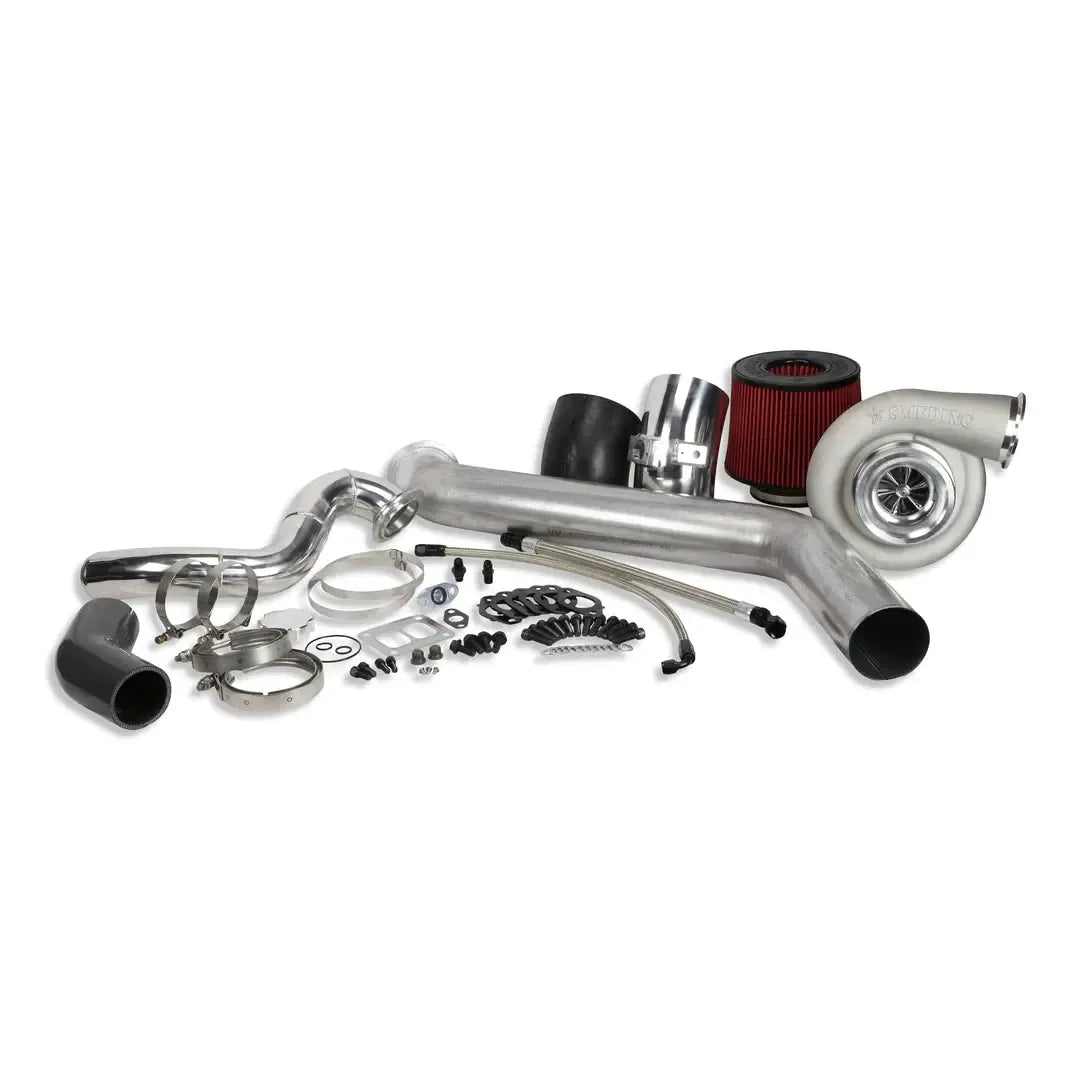

The Smeding Diesel S400 Second Gen Piping Kit comes with everything needed to install an S400 series turbo on your Cummins.

Features
  • Aluminum hot side intercooler pipe and boots for the 13-18 trucks
  • Low Mount
  • S400 Down Pipe
  • 5" Air Intake kit w/S&B filter
  • Coolant plugs
  • Oil Feed Line
  • Oil Drain Line,
  • Intercooler piping
  • Other misc parts for a complete install
Cast vs Billet vs SXE-R

When you go from cast to billet, you get a lighter wheel. A lighter wheel means there is less rotational mass on the shaft, therefore you have a faster spool up. Peak horsepower will stay the same but you will gain a little bit better driveability.

The SXE-R (competition or race series wheel) is similar in the fact that it is even lighter than the standard billet, but it also has other geometrical differences. The hub itself is smaller, so although you have the same outside to outside diameter, you have a wider blade which means you have more surface area on the blade to move more air. The blades are also arched to provide more surface area as well. The nut on the wheel is also integrated into the wheel, as opposed to using a steel nut on the rest of the wheels. All of these differences provide a faster spooling wheel that pushes more air.

Thrust Bearing Upgrade

This is for an upgrade only and must be purchased with a turbo.

One of the more underappreciated components of a turbocharger is its thrust bearing assembly. The thrust bearing is located at the compressor end of the turbine shaft within the center cartridge and is tasked with controlling axial motion as well as providing support for the shaft. It receives oil supply from the center cartridge, and ports present in the thrust washer allow the turbine shaft to essentially float on a layer of oil during operation. In extreme conditions such as high drive pressure or excessive shaft speed, this layer of oil can be displaced enough that the shaft comes into contact with the thrust washer (i.e. metal-to-metal contact), leading to premature wear and eventual failure.

What Is A 360-Degree Thrust Bearing, And What Does It Do?

Most conventional journal-bearing turbochargers leave the assembly line with what is known as a 270-degree thrust bearing. This means that the thrust washer only encircles ¾ of the shaft. A 360-degree thrust washer completely encircles the shaft and has been a common, cost-effective aftermarket turbo upgrade for years now. The added surface area a 360-degree thrust washer provides improves durability in high drive pressure, high boost situations, along with offering added protection against surging (surge being a common side-effect of hanging a larger or heavier compressor wheel on the same shaft). This is why we offer a 360-degree thrust-bearing upgrade option for every turbo we sell. The upgrade also comes standard on all chargers equipped with their SXE-R competition billet compressor wheels.

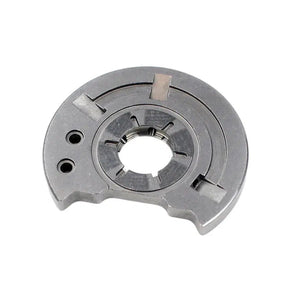

The Smeding Diesel Extreme Duty 360-Degree Thrust Bearing Option

Smedings extreme duty, 360-degree thrust bearing is made from steel rather than conventional brass. By starting with a superior material, Smedings thrust bearing washer won’t wear as easily or extensively as a brass unit will—even if an inordinate amount of oil displacement occurs. In addition to its steel construction and the aforementioned complete cushion of oil surrounding the shaft, Smedings 360-degree thrust washer features more oil ports to help mitigate oil displacement. Finally, Smedings extreme duty thrust bearing boasts hydraulic ramping, which allows the bearing to resist the thrust forces (from both the compressor and turbine side) placed upon it. Simply put, it’s built to handle abuse.

 Is A 360-Degree Thrust Bearing Mandatory?

To answer the question above: No. The brass, 270-degree thrust bearing that comes standard in Smedings turbos works perfectly fine for the average daily driver or tow rig—so long as the turbo is properly sized for your specific setup (engine size, fuel system mods, tuning). However, when pushed out of its engineered limit (displaced oil due to overspeeding, or overloading of the shaft), a 270-degree thrust bearing is much more susceptible to allowing the turbine shaft to come into contact with the thrust washer, which (again) leads to immediate wear and shortens the turbo’s life. Smedings extreme duty 360-degree thrust bearing is specifically designed to guard against premature wear, and for $175 offers customers affordable peace of mind.

Applications Where The 360-Degree Thrust Bearing Is Recommended

For competition applications such as sled pullers, where turbo size is limited and you’re forced to spin an undersized charger faster than you ordinarily would, the 360-degree thrust bearing is highly advised. Likewise, in a dedicated drag racer or even a weekend warrior, where big fuel and nitrous is often used to earn that target E.T. or high trap speed (and where excessive drive pressure, boost, and shaft speed are all in the mix), the 360-degree thrust bearing upgrade is highly suggested. For other applications, and namely high horsepower street trucks, there is nothing wrong with a little overkill. If, even periodically, you think you’ll be exposing your turbo to extreme conditions, it pays to have the 360-degree thrust bearing onboard to protect your investment.

Notes

    QUESTIONS & ANSWERS

    Ask a Question
    • Does this kit come with a turbo? The other kit I looked specifies that it doesn’t not. Thank you

      This comes with turbo correct
