2013-2016 VW/Audi/Porsche 3.0L TDI FlashZilla Stage 3 2260 Turbo Tune File

TuneZilla
$1,006.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stage 3 - 2260 Turbo tune: pick any add-ons, then the FlashZilla Pro if you need one. Add-on prices on this page apply when ordered with this tune.

Cold Climate Idle

Optional

Cold Climate Idle raises the idle RPM (between 1150-1200RPM) on engine start up to reach operating temperature (approx 70C/158F) quicker in cold climates. This feature works when vehicle is in Park and on initial engine start. If vehicle is moved out of Park, the feature will turn off.

Glow Plug Extension

Optional

Increases glow plug strength and duration if it's cold enough. Improves cold starting performance (reduced chance of startup smoke and reduced engine stumbling).

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

Dynamic EGR

Optional

Dynamic EGR keeps EGR operating stock like until the engine reaches "warmed up" temperature, usually about 60deg C. Then it closes so there is no EGR flow. All EGR hardware must be functional to use this feature. This feature is ideal for customers who want the advantages of the EGR system while prolonging component life. Incompatible with Emissions-Off.

Transmission Tune

Optional

Touareg, Q7 and Cayenne (Aisin 8-speed): TuneZilla requires transmission tuning for Stage 3; choose Aisin Stage 1 or Aisin Custom. A6, A7, A8 and Q5 (ZF 8-speed): choose the ZF8 transmission tune.

FlashZilla Pro

Optional

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 1006  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

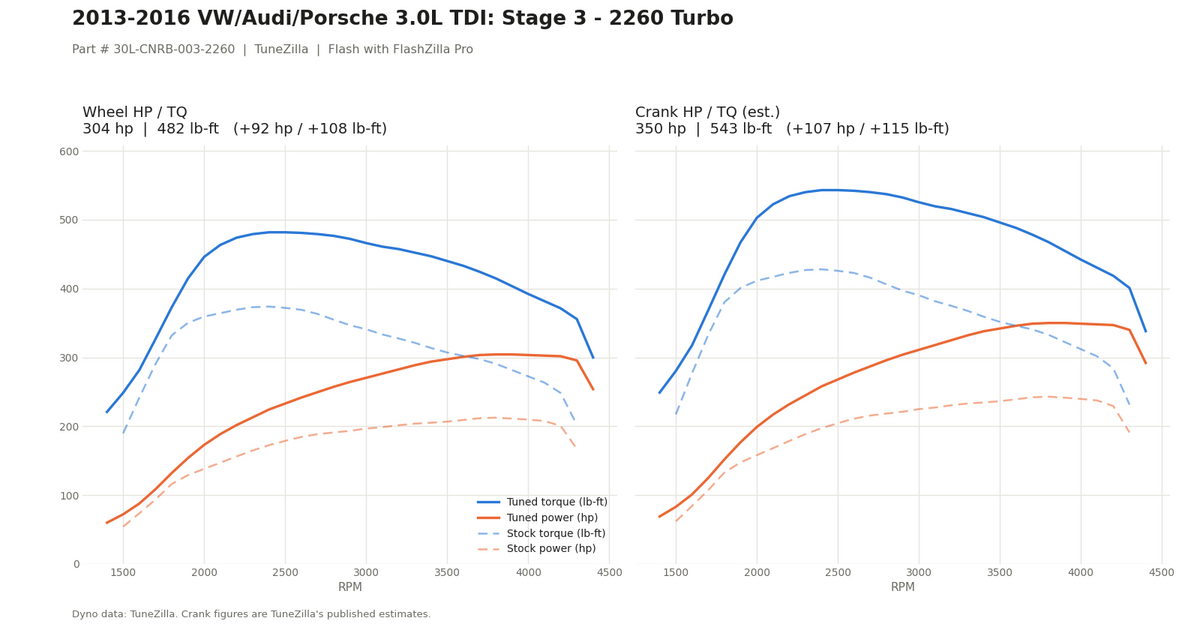

TuneZilla engine (ECU) tuning for the VW/Audi/Porsche 3.0L V6 TDI, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level above. The dyno graph for this power level is in the photo gallery. Add the FlashZilla Pro below if you do not already own one.

Part Number: 30L-CNRB-003-2260

Emissions-Off: included free with this tune. Select it in the TuneZilla Portal when you flash.

Tune Options

Stock baseline: 212 hp / 373 lb-ft at the wheel, 243 hp / 428 lb-ft crank (est.)

Tune Part # Wheel HP / TQ Crank HP / TQ (est.) Gain (crank) Requires
Stage 1 30L-CNRB-001 235 hp / 422 lb-ft 312 hp / 476 lb-ft +69 hp / +48 lb-ft None listed
Stage 2 30L-CNRB-002 241 hp / 425 lb-ft 320 hp / 480 lb-ft +77 hp / +52 lb-ft None listed
Stage 2.5 30L-CNRB-025 246 hp / 444 lb-ft 327 hp / 501 lb-ft +84 hp / +73 lb-ft None listed
Stage 3 - 2260 Turbo 30L-CNRB-003-2260 304 hp / 481 lb-ft 350 hp / 543 lb-ft +107 hp / +115 lb-ft Garrett 2260VZK OEM: 059 145 874 L, 059 145 874 T Garrett: 810822-5003S, 819968-51001S
Stage 3 - 2566 Turbo 30L-CNRB-003-2566 318 hp / 499 lb-ft 366 hp / 574 lb-ft +123 hp / +146 lb-ft GTB2566VZK (Part Number: #DSD2375)
Stage 3 - 2872 Turbo 30L-CPNB-CNRB-003-2872 342 hp / 513 lb-ft 393 hp / 590 lb-ft +150 hp / +162 lb-ft GTD 2872

Crank figures are TuneZilla's published estimates.

Transmission Tuning

Available Add-Ons

Free Add-Ons

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash. Where two options cover the same part (such as the 2200 and 2700 rail pressure sensors), pick only the one you installed.

  • Emissions-Off (DPF, AdBlue, EGR & Swirl Flap) (CR-TDI-3L-MISC)
  • Deep Idle (TDI-Deep-Idle)
  • Left Foot Brake (LFBF-EDC17-2.0-3.0-TDI)
  • Oil Pressure Increase (Oil-Pressure-increase-CPNB-CNRB)

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

Requirements

Turbo Upgrades

Additional Upgrades

Garrett 2260VZK
OEM: 059 145 874 L, 059 145 874 T
Garrett: 810822-5003S, 819968-51001S

  • TCU Tune | Required (Q7, Touareg, Cayenne Only)

  • 4 Bar MAP Sensor upgrade | Required

  • Upgraded Intercooler | Required (A6, A7, Q5 Only)

  • 3.0 BiTurbo TDI MAF Upgrade | Recommended

Notes

It is important to note that we do not remove or modify factory readiness monitors or force readiness for any factory-installed components. If you are installing aftermarket hardware that is for off-road use only, please double-check with your state requirements prior to flashing.

Installation

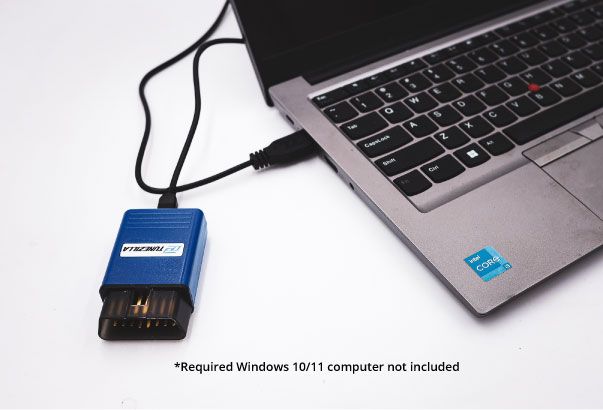

  • Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
  • Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
  • Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
  • Clear all fault codes and warning messages before flashing.
  • TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

Radiator fan: the radiator fan can run during flashing and drain the battery. TuneZilla recommends a battery charger or unplugging the two radiator fan control unit fuses while flashing.

Supported ECU Hardware Numbers

4G0907401N 0016, 4H0907401F 0016, 4H0907401N 0002, 4L2910401A 0008, 4L2910401A 0012, 4L2910401A 0014, 7P0907311C 0002, 7P0907311C 0003, 7P0907311C 0004, 7P0907401F 0003, 7P0907401F 0005, 7P0907401G 0002, 7P0907401K 0004, 7P0907401K 0011, 7P0907401K 0013, 7P1907401C 0002, 7P1907401C 0007, 7P1907401C 0010, 7P1907401D 0001, 7P1907401F 0004, 7P5907401D 0002, 7P5907401D 0003, 7P5907401D 0004, 7P5907401H 0004, 7P5907401H 0006, 7P5907401H 0011, 7P5907401H 0014, 7P5907401L 0009, 7P5907401Q 0002, 7P5907401Q 0007, 7P5907401Q 0010, 8K5907401AC 0002

Manufacturer Description

Stage 3 tuning offers customers off-the-shelf tuning solutions for various hardware combinations. TuneZilla has partnered with Malone Tuning to develop tried and tested hardware upgrade combinations to deliver reliable tune files for the 3.0 TDI CPNB and CNRB engine. If you are simply looking to do a simple turbo upgrade to replace a worn turbo, or want to maximize your power potential, we have a tune file for you.

Our Stage 3 tune for the Garrett 2260VK turbo upgrade increases peak torque substantially while utilizing most of the factory fuelling system. As these turbos were a factory equipped in ROW models, the only required hardware upgrade is a 4 bar MAP sensor .Our tune files have been tested to produce the most power without unnecessary upgrades.

Any Time, Any Place

Flash your vehicle in the comfort of your own driveway or garage using our TuneZilla Portal App and FlashZilla Pro dongle. Download your tune directly to your laptop and flash your vehicle anywhere.

Tune files can be modified through our InstaTune server so that you can upgrade your tune anytime.

For more information on how to use the FlashZilla Pro, you can see the guide here: Tuning with FlashZilla Pro
