2013-2016 VW/Audi/Porsche 3.0L TDI FlashZilla Stage 2.5 Tune File

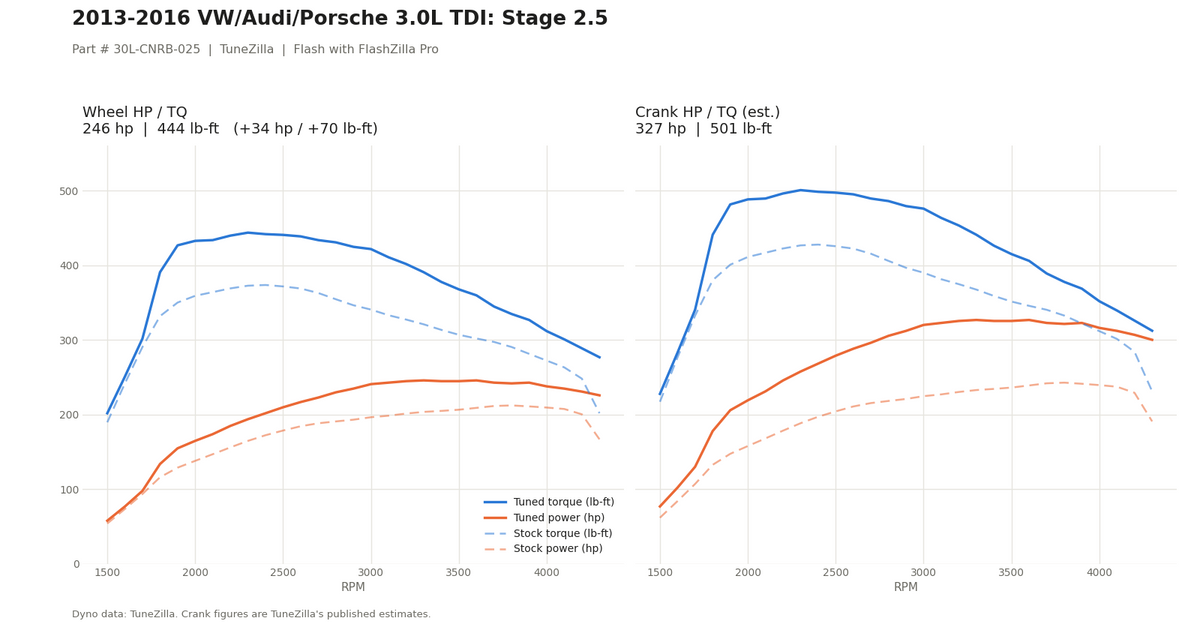

TuneZilla engine (ECU) tuning for the VW/Audi/Porsche 3.0L V6 TDI, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level above. The dyno graph for this power level is in the photo gallery. Add the FlashZilla Pro below if you do not already own one.

Part Number: 30L-CNRB-025

Emissions-Off: included free with this tune. Select it in the TuneZilla Portal when you flash.

Stock baseline: 212 hp / 373 lb-ft at the wheel, 243 hp / 428 lb-ft crank (est.)

Crank figures are TuneZilla's published estimates.

• 2011-2016 VW/Audi/Porsche 3.0L TDI Aisin FlashZilla Transmission Tune File
• 2014-2016 Audi 3.0L TDI ZF8 FlashZilla Transmission Tune File

• Cold Climate Idle (3.0L-TDI-DYNIDL)
• Dynamic EGR (CR-TDI-3L-DYNEGR)
• Hardcut Rev Limiter (CR-TDI-3L-HRDCT)
• Glow Plug Extension (CR-TDI-G-GLOW)

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash. Where two options cover the same part (such as the 2200 and 2700 rail pressure sensors), pick only the one you installed.

• Emissions-Off (DPF, AdBlue, EGR & Swirl Flap) (CR-TDI-3L-MISC)
• Deep Idle (TDI-Deep-Idle)
• Left Foot Brake (LFBF-EDC17-2.0-3.0-TDI)
• Oil Pressure Increase (Oil-Pressure-increase-CPNB-CNRB)

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

It should be noted that the Stage 2.5 tune may affect drivability during towing due to the higher EGTs. We recommend that if you are using your vehicle for towing, it is best to use Stage 1. If you plan to run the 2.5 tune, we recommend a thorough maintenance and mechanical once over. Due to the extreme demands of this tune, it can uncover any deficiencies in your powertrain.

It is important to note that we do not remove factory readiness monitors or force readiness for any factory installed components. If you are installing aftermarket hardware that is for off-road use only, please double check with your state requirements prior to flashing.

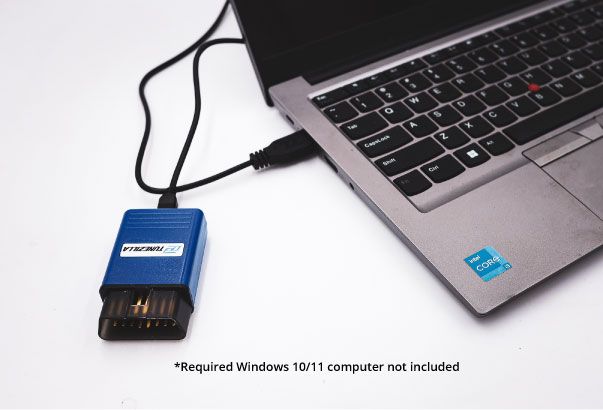

• Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
• Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
• Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
• Clear all fault codes and warning messages before flashing.
• TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

Radiator fan: the radiator fan can run during flashing and drain the battery. TuneZilla recommends a battery charger or unplugging the two radiator fan control unit fuses while flashing.

4G0907401N 0016, 4H0907401F 0016, 4H0907401N 0002, 4L2910401A 0008, 4L2910401A 0012, 4L2910401A 0014, 7P0907311C 0002, 7P0907311C 0003, 7P0907311C 0004, 7P0907401F 0003, 7P0907401F 0005, 7P0907401G 0002, 7P0907401K 0004, 7P0907401K 0011, 7P0907401K 0013, 7P1907401C 0002, 7P1907401C 0007, 7P1907401C 0010, 7P1907401D 0001, 7P1907401F 0004, 7P5907401D 0002, 7P5907401D 0003, 7P5907401D 0004, 7P5907401H 0004, 7P5907401H 0006, 7P5907401H 0011, 7P5907401H 0014, 7P5907401L 0009, 7P5907401Q 0002, 7P5907401Q 0007, 7P5907401Q 0010, 8K5907401AC 0002

Our Stage 2.5 ECU tune for the 3.0 CNRB TDI demonstrates our unwavering pursuit of power while still retaining the factory safeties and drivability.

At TuneZilla, we're dedicated to pushing the boundaries of performance and ECU tuning. We believe that innovation is a continuous journey, and today, we're thrilled to reintroduce our Stage 2.5 tune for the 3.0 TDI, to uncork the most from your vehicle. Working with the Malone Tuning calibrators, we've squeezed out all of the potential from the factory turbo and fueling system.

The Stage 2.5 tune does not require DPF off, but it is recommended for optimal performance.

Harnessing the Power of Progress

With advancements in logging equipment and tool improvements, we've taken a fresh look at some of our older catalog items, and the results are nothing short of extraordinary. The new Stage 2.5 tune for the 3.0TDI is a testament to our commitment to staying on the cutting edge of technology and innovation and bringing our customers the most reliable power compared to our competitors.

More Horsepower, More Torque

The star feature of this new tune is its impressive power boost. We've pushed the limits to ensure the absolute most power in a reliable tune using factory hardware.

Smooth Operator

This new tune is not just about raw power; it's about precision, efficiency, and drivability. We've fine-tuned every aspect of the tune to ensure it outperforms in every way. From more efficient fueling to smoother power delivery, this product is designed to take your driving experience to the next level.

Get ready to experience the thrill of superior performance and take your vehicle to new heights with the new Stage 2.5 ECU tune for your 3.0 TDI. It's a testament to our commitment to innovation and our dedication to providing you with the very best in the world of Diesel Performance.
Customize your ECU tune with our library of tune add-ons to match your choice of hardware changes.
