2012-2014 VW Passat 2.0L TDI FlashZilla Stock Emissions-Off Tune File

TuneZilla
$718.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stock Emissions-Off tune: add any add-ons you want, then the FlashZilla Pro if you need one.

Dynamic Idle

Optional

Speed up engine-warm up with a 1,100 RPM (or another RPM of your choice) idle. The idle will return to stock state (approximately 830RPM) by 70C (158F) coolant temperature. Results may vary. Example Idle RPM vs. coolant temperature progress chart below: Most factory ECUs actually already has Dynamic Idle, especially at higher elevation or very cold temperatures. We typically do not set a higher idle RPM etc. than the maximum that's set by the factory. An engine that gets warmer sooner means that you get interior heat sooner (more comfort during cold weather) and reach optimal efficiency (fuel economy) sooner. If you want a permanently raised idle (e.g. 950-1000 RPM) to reduce vibrations, especially with a stiffer aftermarket engine mount, then we also can do that.

Glow Plug Extension

Optional

Increases glow plug strength and duration if it's cold enough. Improves cold starting performance (reduced chance of startup smoke and reduced engine stumbling).

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

Manual Transmission Conversion

Optional

Reflash your transmission using factory software after swapping to a manual transmission. ECU will need to be recoded separately using VCDS to complete the process, make note of the current transmission coding before you flash the ECU.

High Pressure Fuel Pump Upgrade

Optional

Pick the calibration that matches your fuel pump upgrade. Only one can be used. Only required if you swap to a CP3 fuel pump . This requires custom tuning work for best results. We will not add this to other brand tunes.

FlashZilla Pro

Optional

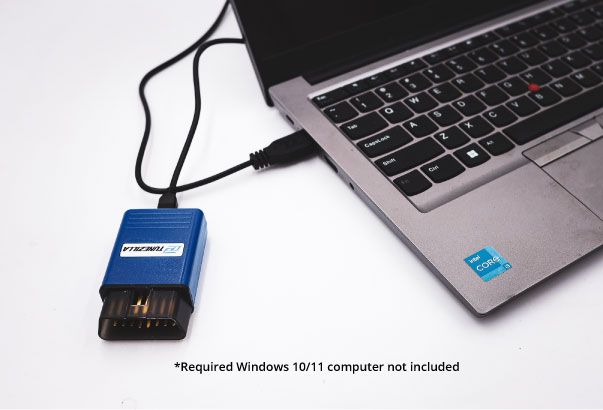

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 718  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

TuneZilla stock calibration for the 2012-2014 VW Passat 2.0L TDI. It keeps factory power, includes the TuneZilla emissions-off calibration (DPF, AdBlue, EGR, ASV and swirl flap), and carries any add-ons you choose below, flashed at home through the OBD port with the TuneZilla FlashZilla Pro.

Want more power? See the Stage 0.5 Tune File, which costs the same and also includes Emissions-Off at no charge.

Part Number: CR-TDI-CKRA-STK + CR-TDI-2L-MISC

Includes: TuneZilla stock calibration with the emissions-off calibration (DPF, AdBlue, EGR, ASV and swirl flap).

Tune Options

Stock: Not published by TuneZilla.

Free Add-Ons

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash. Where two options cover the same part (such as the 2200 and 2700 rail pressure sensors), pick only the one you installed.

  • 2200 Rail Pressure Sensor (CR-TDI-2200RPS)
  • Deep Idle (TDI-Deep-Idle)
  • Left Foot Brake (LFBF-EDC17-2.0-3.0-TDI)

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

Notes

TuneZilla does not remove factory readiness monitors or force readiness for factory-installed components.

Installation
  • Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
  • Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
  • Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
  • Clear all fault codes and warning messages before flashing.
  • TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

Supported ECU Hardware Numbers

03L906012 2157, 03L906012 7444, 03L906012BM 4824, 03L906012BN 4804, 03L906012BN 5558, 03L906012BP 7445, 03L906012DD 6072, 03L906012DD 8400, 03L906012DE 6073, 03L906012DE 8401, 03L997009H 9981, 03L997009J 9978, 03L997009J 9981, 03L997009J 9982
