2012-2014 VW Passat 2.0L TDI FlashZilla Stage 0.5 Tune File

TuneZilla
$718.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stage 0.5 tune: pick any add-ons, then the FlashZilla Pro if you need one. Add-on prices on this page apply when ordered with this tune.

Dynamic Idle

Optional

Speed up engine-warm up with a 1,100 RPM (or another RPM of your choice) idle. The idle will return to stock state (approximately 830RPM) by 70C (158F) coolant temperature. Results may vary. Example Idle RPM vs. coolant temperature progress chart below: Most factory ECUs actually already has Dynamic Idle, especially at higher elevation or very cold temperatures. We typically do not set a higher idle RPM etc. than the maximum that's set by the factory. An engine that gets warmer sooner means that you get interior heat sooner (more comfort during cold weather) and reach optimal efficiency (fuel economy) sooner. If you want a permanently raised idle (e.g. 950-1000 RPM) to reduce vibrations, especially with a stiffer aftermarket engine mount, then we also can do that.

Glow Plug Extension

Optional

Increases glow plug strength and duration if it's cold enough. Improves cold starting performance (reduced chance of startup smoke and reduced engine stumbling).

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

Manual Transmission Conversion

Optional

Reflash your transmission using factory software after swapping to a manual transmission. ECU will need to be recoded separately using VCDS to complete the process, make note of the current transmission coding before you flash the ECU.

High Pressure Fuel Pump Upgrade

Optional

Pick the calibration that matches your fuel pump upgrade. Only one can be used. Only required if you swap to a CP3 fuel pump . This requires custom tuning work for best results. We will not add this to other brand tunes.

Dynamic EGR

Optional

Dynamic EGR allows the function of EGR to be retained to help the vehicle get up to operating temp. Once operating temp is reached, EGR is switched off to prolong the life of the EGR system. This feature is for Off-Road Use Only. EGR components must be functional. Incompatible with Emissions-Off.

FlashZilla Pro

Optional

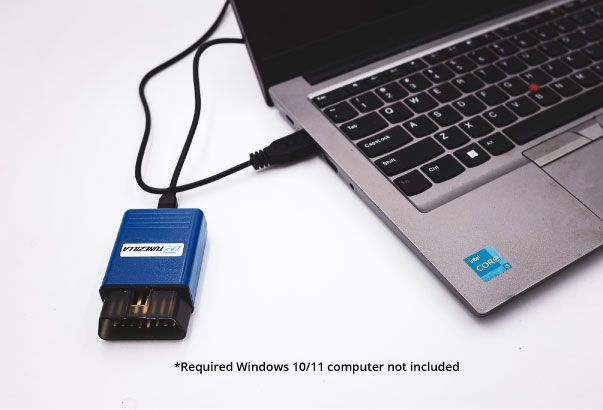

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 718  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

TuneZilla engine (ECU) tuning for the VW Passat 2.0L TDI CKRA, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level above. Add the FlashZilla Pro below if you do not already own one.

Part Number: CR-TDI-CKRA-000.5

Emissions-Off: included free with this tune. Select it in the TuneZilla Portal when you flash.

Tune Options

Stock baseline: 132 hp / 226 lb-ft at the wheel, Not published crank (est.)

Tune Part # Wheel HP / TQ Crank HP / TQ (est.) Gain (crank) Requires
Stage 0.5 CR-TDI-CKRA-000.5 150 hp / 226 lb-ft Not published +18 hp / +0 lb-ft (wheel) None listed
Stage 1 CR-TDI-CKRA-001 150 hp / 287 lb-ft Not published +18 hp / +61 lb-ft (wheel) DSG Tune
Stage 2 CR-TDI-CKRA-002 160 hp / 296 lb-ft Not published +28 hp / +70 lb-ft (wheel) DSG Tune
Stage 3 CR-TDI-CKRA-003 Not published Not published Not published Turbo Upgrade - CR190, CR190 Hybrid or GTC1556vz, DSG Tune, or Clutch Upgrade, 4 Bar MAP Sensor

Crank figures are TuneZilla's published estimates.

Available Add-Ons

Free Add-Ons

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash. Where two options cover the same part (such as the 2200 and 2700 rail pressure sensors), pick only the one you installed.

  • 2200 Rail Pressure Sensor (CR-TDI-2200RPS)
  • Emissions-Off (DPF, AdBlue, EGR, ASV & Swirl Flap) (CR-TDI-2L-MISC)
  • Deep Idle (TDI-Deep-Idle)
  • Left Foot Brake (LFBF-EDC17-2.0-3.0-TDI)

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

Notes

No hardware upgrades are required for the Stage .5 tune. However, tune add-ons to accommodate hardware changes can be purchased. It is important to note that we do not remove factory readiness monitors or force readiness for any factory installed components. If you are installing aftermarket hardware that is for off-road use only, please double check with your state requirements prior to flashing.

Installation
  • Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
  • Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
  • Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
  • Clear all fault codes and warning messages before flashing.
  • TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

Supported ECU Hardware Numbers

03L906012 2157, 03L906012 7444, 03L906012BM 4824, 03L906012BN 4804, 03L906012BN 5558, 03L906012BP 7445, 03L906012DD 6072, 03L906012DD 8400, 03L906012DE 6073, 03L906012DE 8401, 03L997009H 9981, 03L997009J 9978, 03L997009J 9981, 03L997009J 9982

Manufacturer Description

Stage 0.5 is the perfect starting point for CKRA TDI owners who want a noticeable increase in performance while retaining the factory DSG calibration.

It delivers improved horsepower and torque, quicker throttle response, and smoother power delivery for a more enjoyable driving experience, all without requiring any additional hardware. The added low-end torque makes the car feel stronger in everyday driving, improving acceleration and passing performance while maintaining the refinement expected from a daily-driven TDI.

Like all TuneZilla calibrations, Stage 0.5 supports optional tune add-ons and includes access to future tune revisions / updates, making it easy to customize your tune as your needs evolve.

*DSG tuning is not required for Stage 0.5
