Description
Fits
Year |
Make |
Model |
Type |
2001-2010 |
Chevy / GMC |
1 Ton Truck |
4WD
|
2001-2006 |
Chevy / GMC |
1/2 Ton Truck |
1500 HD 4WD |
2001-2010 |
Chevy / GMC |
3/4 Ton Truck |
2500 HD 4WD |
2001-2006 |
Chevy / GMC |
3/4 Ton Truck |
2500 NON-HD 4WD |
2001-2006 |
Chevy / GMC |
Avalanche 2500 |
4WD
|
2001-2010 |
Chevy / GMC |
Suburban 3/4 Ton |
4WD
|
2001-2010 |
Chevy / GMC |
Yukon XL 3/4 Ton |
4WD
|

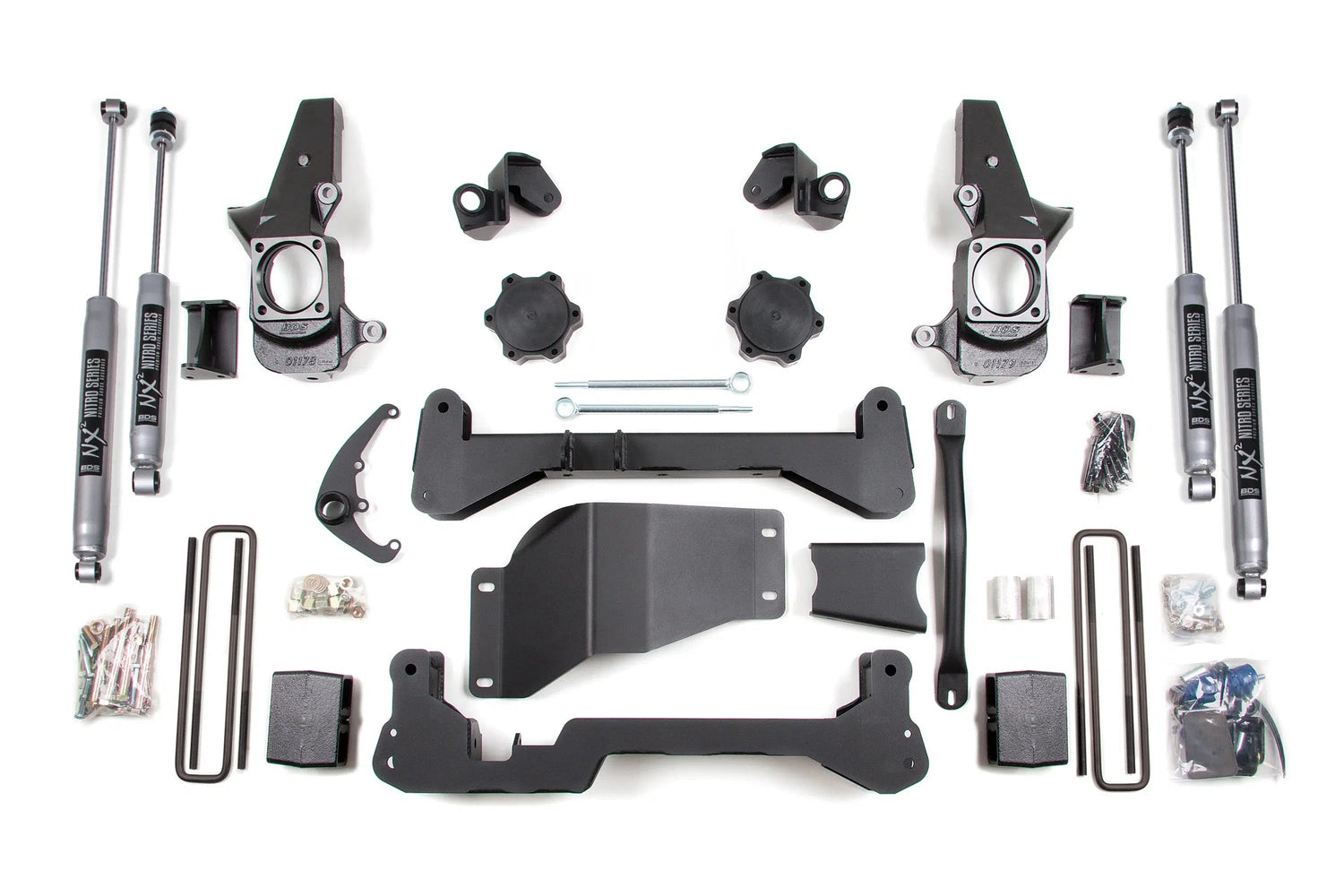

Lift up your GM truck or SUV with this BDS suspension 4.5" Lift kit. This kit utilizes high arched crossmembers that blend perfectly with the angle of the factory-installed lower control arms for a completely integrated look while lifting your vehicle a full 4-1/2" dramatically increasing ground clearance at the front crossmembers and improving operating geometry. A front differential skid plate comes standard, for increased off-road protection.
Part Number: BDS192H
Features
- 3" Tapered Rear Block Kit
- NX2 Series Shocks
- High Clearance cross-member
- 4.5" High Clearance IFS
- Front differential skid plate
Tire & Wheel Combinations:
- 33" x 12.50" w/16 x 8 and 4-1/2" back spacing
- 35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing
- 35" x 12.50" w/20 x 9 and 5.75" back spacing
Notes
- Torsion Bar Tool required to load/unload the torsion bars.
- Some welding is required.
- Requires frame bracket modification and differential mount modification.
- Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift.
- 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
- Gas models require exhaust modification.
- A narrow track knuckle will slightly increase the turning radius.
- For tail high stance use #119157 add-a-leaf with the block kit.
- Not Recommended for Suburban / Yukon models with AutoTrac Transfer Case.
- Does NOT work with rear Autoride equipped SUV's

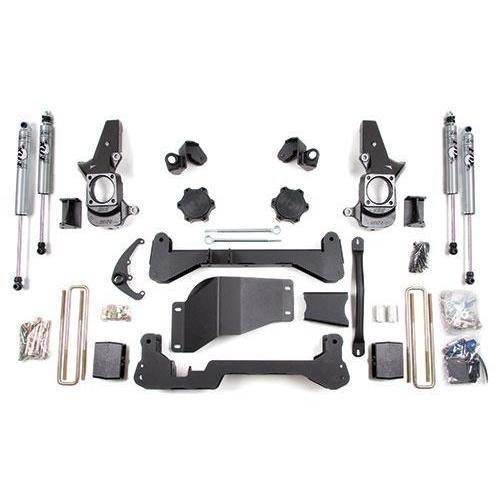

- Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
Installation
