2001-2010 Duramax 4.5" Lift Kit (BDS192H)
Lift up your GM truck or SUV with this BDS suspension 4.5" Lift kit. This kit utilizes high arched crossmembers that blend perfectly with the angle of the factory-installed lower control arms for a completely integrated look while lifting your vehicle a full 4-1/2" dramatically increasing ground clearance at the front crossmembers and improving operating geometry. A front differential skid plate comes standard, for increased off-road protection.
Tire & Wheel Combinations:
- 33" x 12.50" w/16 x 8 and 4-1/2" back spacing
- 35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing
- 35" x 12.50" w/20 x 9 and 5.75" back spacing
Notes:
- Torsion Bar Tool required to load/unload the torsion bars.
- Some welding is required.
- Requires frame bracket modification and differential mount modification.

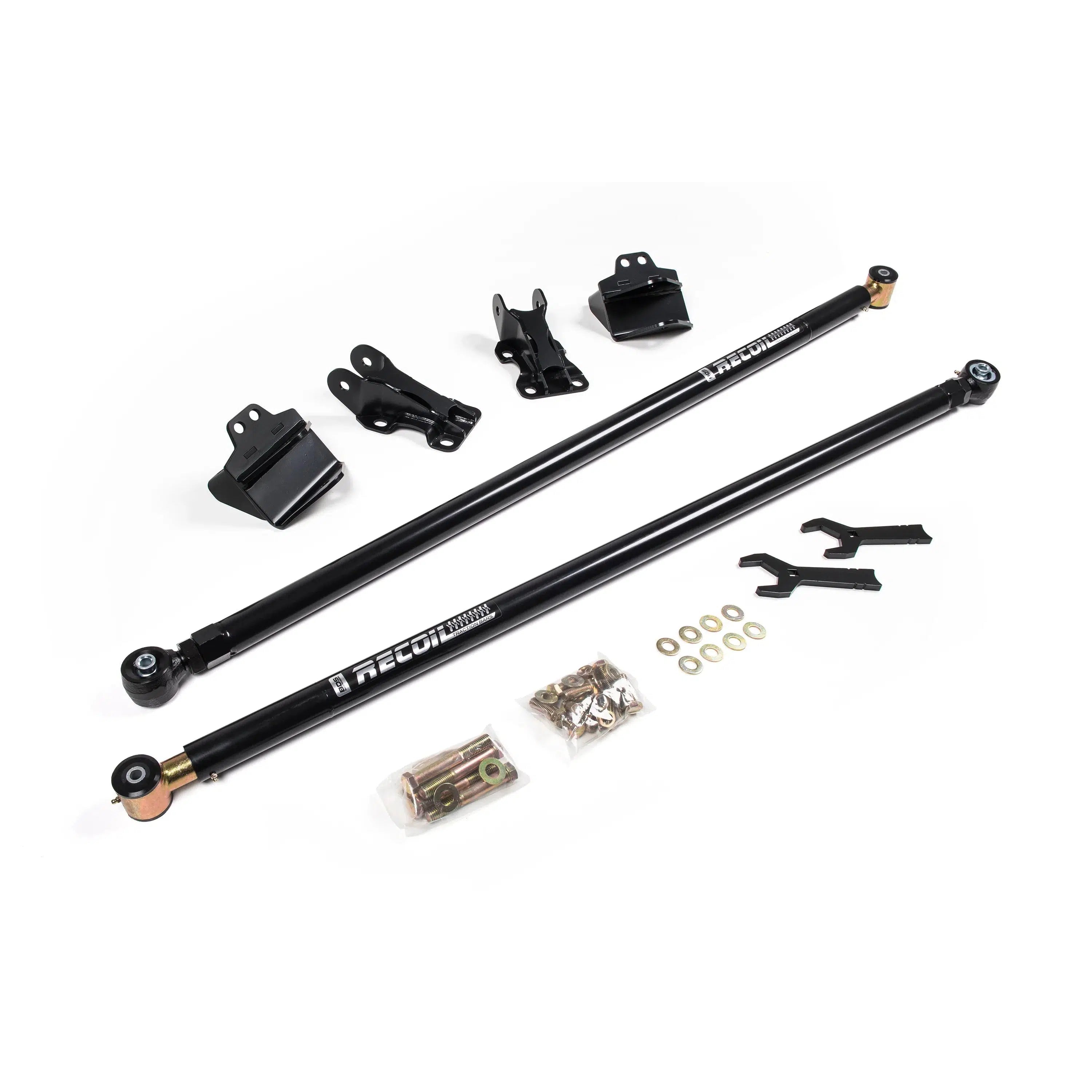

- Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift.
- 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
- Gas models require exhaust modification.
- A narrow track knuckle will slightly increase the turning radius.
- For tail high stance use #119157 add-a-leaf with the block kit.
- Not Recommended for Suburban / Yukon models with AutoTrac Transfer Case.
- Does NOT work with rear Autoride equipped SUV's
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS192H
Note: This selection is just for reference purposes
This system is available with two different knuckle designs. The standard knuckle widens the track but does not affect the turning radius. The narrow track knuckle reduces the total track width change by about 1.5" overall but does increase the turning radius slightly.
Standard Knuckle
Show more
Narrow Track Knuckle
Show more
HD Standard Knuckle Kit
Show more
4.5" Box Kit
This Box Kit includes the following products:
- 2 Sway Bar Link
- Bolt Pack - Sway Bar Links
- Bolt Pack - Torsion Bar Brackets
- Driver & Passenger Side Differential Drop Bracket
- Differential Skid Plate
- 2 Bump Stop Brackets
- Bolt Pack - Bump Stops/Misc
- Bolt Pack - Main
- Bag Kit
- 2 Sway Bar Link Brackets
- 2 Bushings - Differential Bracket
Show more
4.5" Box Kit
This Box Kit includes the following products:
- Front & Rear Crossmember
- Differential Tube
- 2 Torsion Bar Drop Bracket
- Boot Extension
- Boot Extension O-rings
Show more
3" Rear Block Kit
This Box Kit includes the following products:
- 4 9/16 x 2-9/16 x 12-1/2 Square U-bolts
- 2 3” Block - 5/8” Pins
- Bag Kit
- 8 9/16” high nuts
- 8 9/16” flat washers
Show more
Does the rear of your truck need a little extra boost? The BDS Add-A-Leaf kits are the perfect answer. This kit comes with complete instructions, new center pins, and new leaf alignment clamps. Order one kit per axle. Add-A-Leaf kits are sold as pairs except for dual add-a-leaf kits which are sold in sets of four.
Note:
- U-bolts are not included in add-a-leaf purchases
- U-bolts sizes are based on maximum OE leaf packs which can vary widely due to towing packages, GVWR variations, etc.
No Thanks

Rear Add-A-Leaf
Show more
NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
