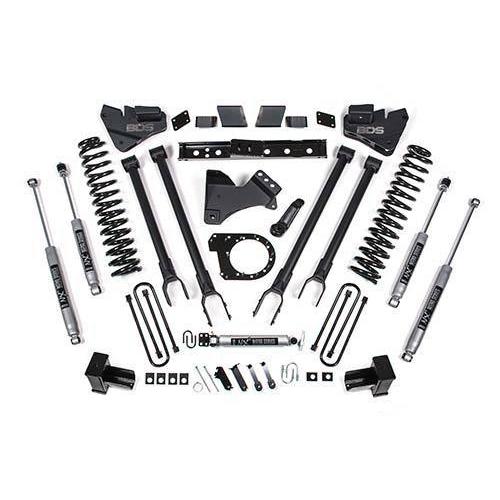

2020-2021 Powerstroke DRW 4-Link 6" Lift Kit (BDS1574H)
Take your new Super Duty to the next level with the tried and true BDS 4-link conversion system. A big upgrade from the factory stamped steel radius arms, these high-strength 4-link conversions offer improved handling, stability, strength, and caster control during wheel travel. Full-length 6" ProRide diesel or gas-specific coil springs are used for the additional ride height paired with BDS NX2 series gas shocks for a smooth ride on any terrain and all-around impressive performance.
Tire & Wheel Combinations:
- 38x13.50 w/ 20x9 and 4.5" - 5"
- 38x13.50 w/ 17x10 and 5"
- 38x13.50 w/ 20x10 and 5"
Notes:
- Ford recommends the replacement of the pitman arm nut after each time it has been removed
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper
- If your truck is equipped with a factory rear sway bar add: BDS123808
- If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402
- Due to taller factory ride height, Tremor models will not net full advertised lift height
- Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specs listed in the wheel and tire fitment section
- This indexing ring is only compatible with 2020 10 speed transmission trucks. Please verify your truck's equipment before installing
- Indexing Ring has not been designed to work on manual-shift transfer case models. Modification to the shift cable mount will be required
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS1574H
5" Dually Block Kit
This Box Kit includes the following products:
- Driver & Passenger Side 5" Rear Tapered 3/4" Pin
- 4 5/8 x 3-1/8 x 19 Semi-Round U-Bolt
- Bag Kit
- 5/8 washers
- 5/8 high nuts
- E-Brake Relocation Bracket
- E-Brake Clamp Bracket
- Bolt Pack
Show more
6" 4-Link Box Kit
This Box Kit includes the following products:
- Upper & Lower 4-Link Arm
- Bolt Pack - 4-Link Arm Hardware
- Bag Kit - Upper & Lower Arm
- 4 90 degree grease fittings
- 4 1.0 x 0.120 x 3.25 DOM Sleeves
- 8 Bushings
- Cam Lock Plate
Show more
6" 4-Link Box Kit
This Box Kit includes the following products:
- Pitman Arm
- Front Bump Stop Extension
- Track Bar Bracket
- Driver & Passenger Side Sway Bar Drop
- Driver & Passenger 4-Link Bracket
- BDS Badge
- Rivet Bolt Packs
- Track Bar Cam Washer
- 4-Link Bracket Shim
- Driver & Passenger Side Front Brake Line Bracket - (4" & 6" Box Kit)
- U-Hardline Extension (6" Box Kit)
- 4-Link Bracket Nut Tab
- M8-1.25 x 130mm Bolt
- 5/16" SAE Flat Washer
- Zip Ties
- Drive Shaft Boot Clamp
- 1/8" x 1-1/4" Cotter Pin
- Bolt Pack - 4-Link Bracket
- Bolt Pack - ABS Wire Clamp (4" Box Kit)
- Bolt Pack - Sway Bar Drop Bracket
Show more
DSL Transfer Case Indexing Kit
Show more
NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
NX2 Series Single Steering Stabilizer
This NX2 Series single steering stabilizer is included in the base kit.
Show more
- Adjustable axle wrap control utilizing dual-stage resistance springs
- Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
- Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling)
- Traction bar ends are greaseable and rebuildable
No Thanks
Universal Recoil Traction Bar Box Kit
Show more
Required if you have added the Traction Bar.
No Thanks
RECOIL Traction Bar Mounting Kit (3.5"- 4" Axle Diameter)
Show more
If your truck is equipped with a rear sway bar, these are recommended.
No Thanks
These shims are designed to improve rear driveline angle on trucks equipped with a 2-piece rear driveshaft to eliminate any potential driveline vibrations.
Note:
This is not needed on trucks equipped with a 1-piece rear driveshaft.
No Thanks
Driveshaft Alignment Kit
