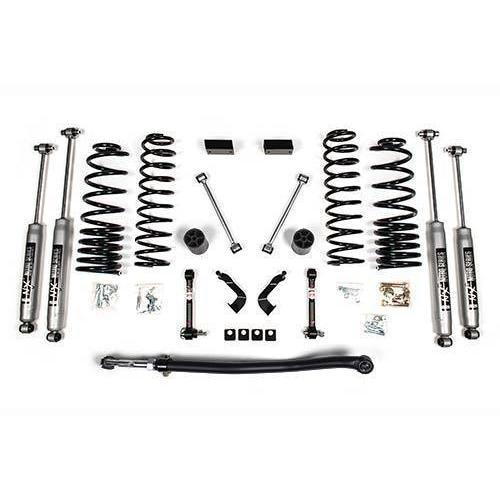

2020-2021 Jeep JT Gladiator 3"-3.5" Lift Kit (BDS1439H)
BDS Suspension now offers 3" lift systems and accessories for the Jeep Gladiator, specially designed for improved on-road ride quality, handling, level out stance, increase suspension travel, improve load capacity while taking offroad capability to the next level; everything you need in one kit to upgrade the overall strength and adjustability of your Jeep.
Tire & Wheel Combinations:
- 33x12.50 w/ 17x8 and Stock
- 35x12.50 w/ 17x8 and 4.5-5"
- 37x12.50 w/ 17x8 and Stock
Notes:
- Non-Rubicon comes from factory at lower ride height, will net slightly more lift final stance the same for all models
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS1439H
This Box Kit includes the following products:
- Front Bump Stop Block
- Driver & Passenger Side Disconnect Bracket Tall
- 2” Rear Bump Stop Block
- Rear Sway Bar Link
- Sway Bar Disconnect - Long
- Adjustable Track Bar
- 4 Bushings
- 4 Spacer Sleeves
- Quick Pin
- Offset Polyurethane Spacer
- 2 Studs with Nuts
- 1/4” Spacer
- .75 x 1.255 Sleeve
- .75 x 1.650 Sleeve
- .81 x 1.62 Sleeve
- Alignment Cams
- Bolt Pack- Front Bump Stop
- Bolt Pack - Front Disconnects
- Bolt Pack- Rear Bump
- Bolt Pack
3-3.5" Box Kit
Show more
Rear Coil Spring Box Kit
Show more
Rear NX2 Series Shocks (2x)
Show more
No Thanks

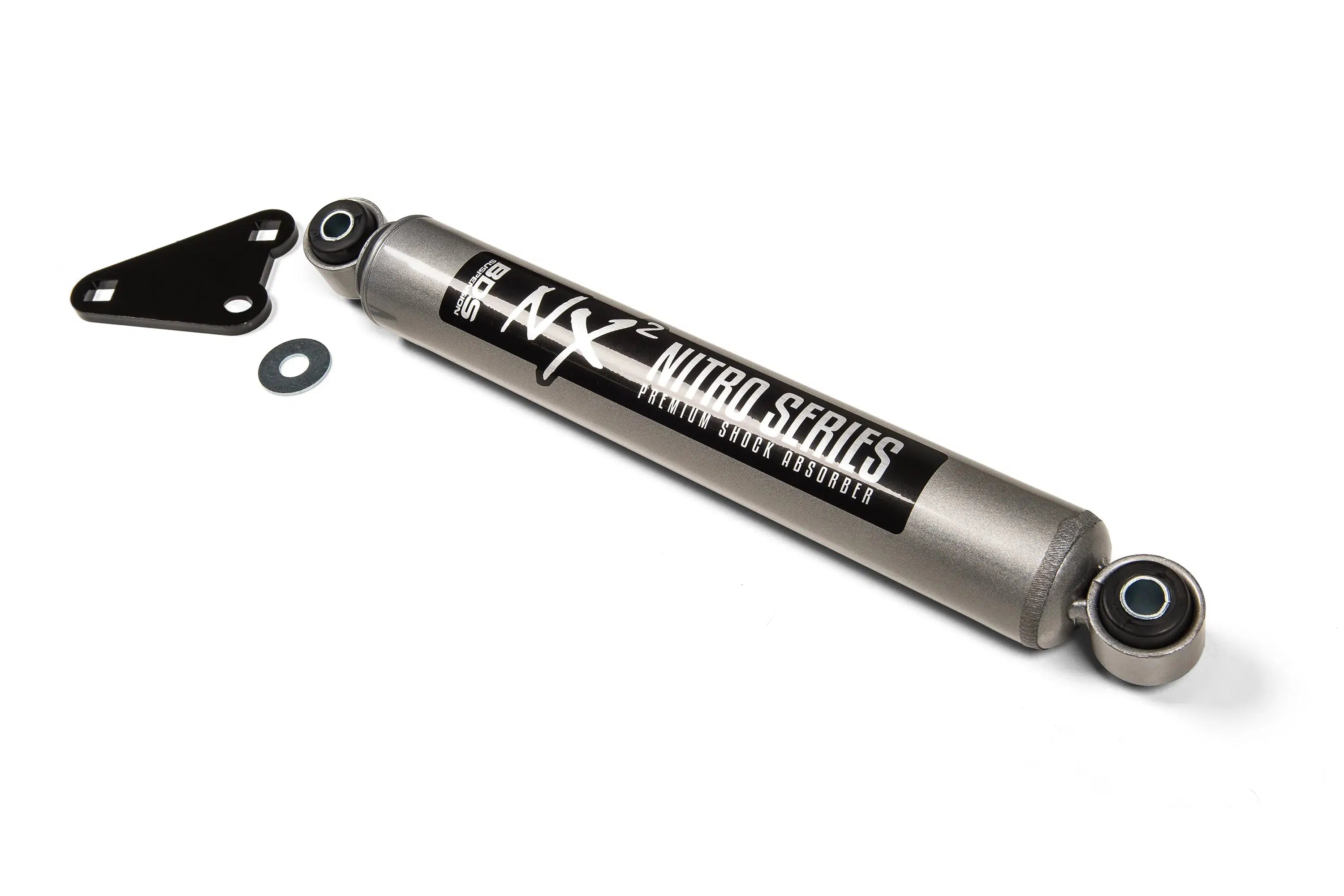

NX2 Series Single Steering Stabilizer
Show more
Fox 2.0 Series TS Single Steering Stabilizer
The Performance Series 2.0 IFP steering stabilizer helps take the load off your steering components and keep your tires tracking straight and true. Oversized off-road tires have a tendency to seek out traction in any direction. The large knobs and open tread pattern can cause your front end to wander on or off the road.
The Performance Series 2.0 IFP stabilizer uses the same advanced damping technology contained in our Performance Series shocks to tame steering feedback from even the most aggressive tires.
Show more
No Thanks

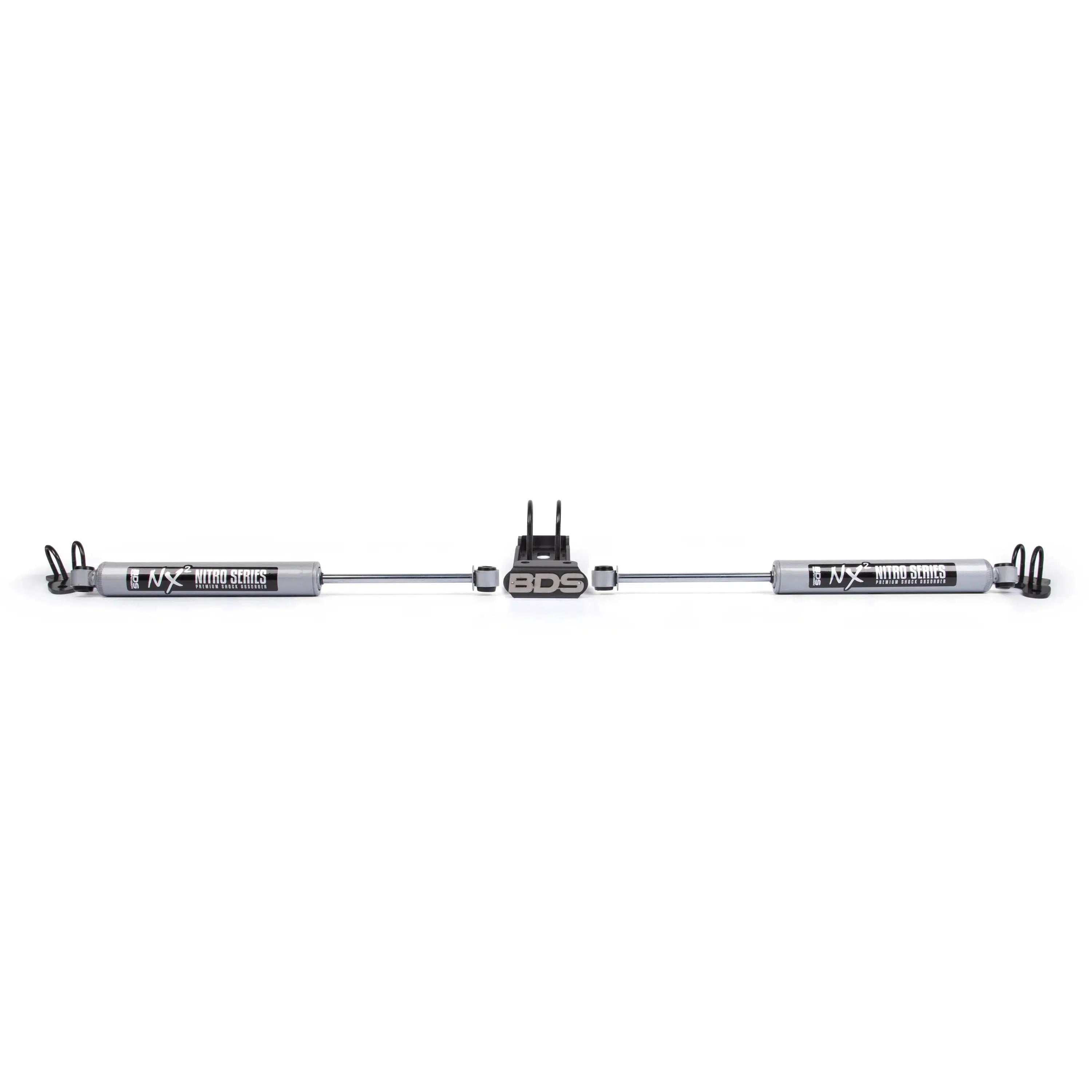

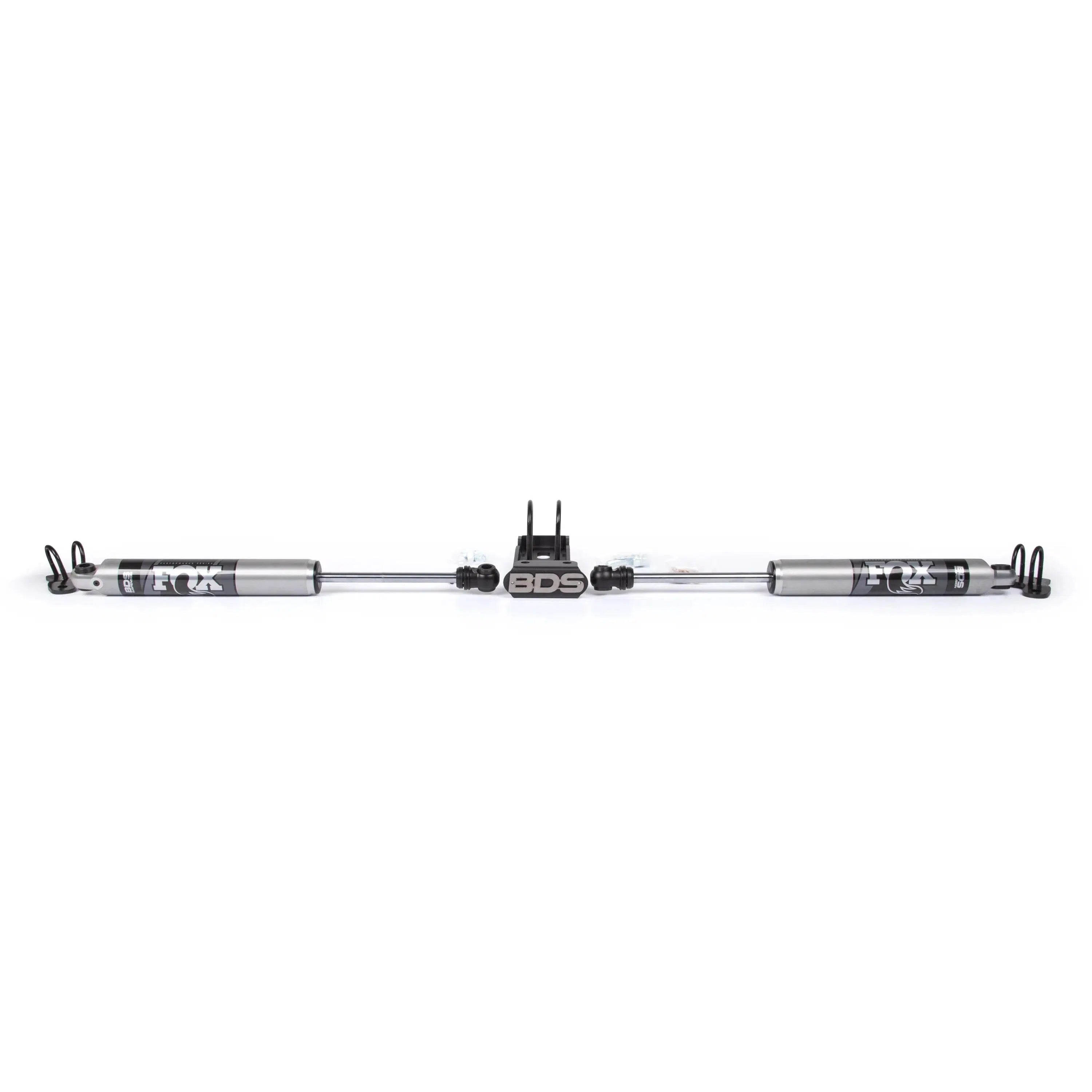

Dual Steering Stabilizer Bracket Kit
Show more
If you select "No Thanks", you will have to use your Stock Front Upper Control Arms.
No Thanks

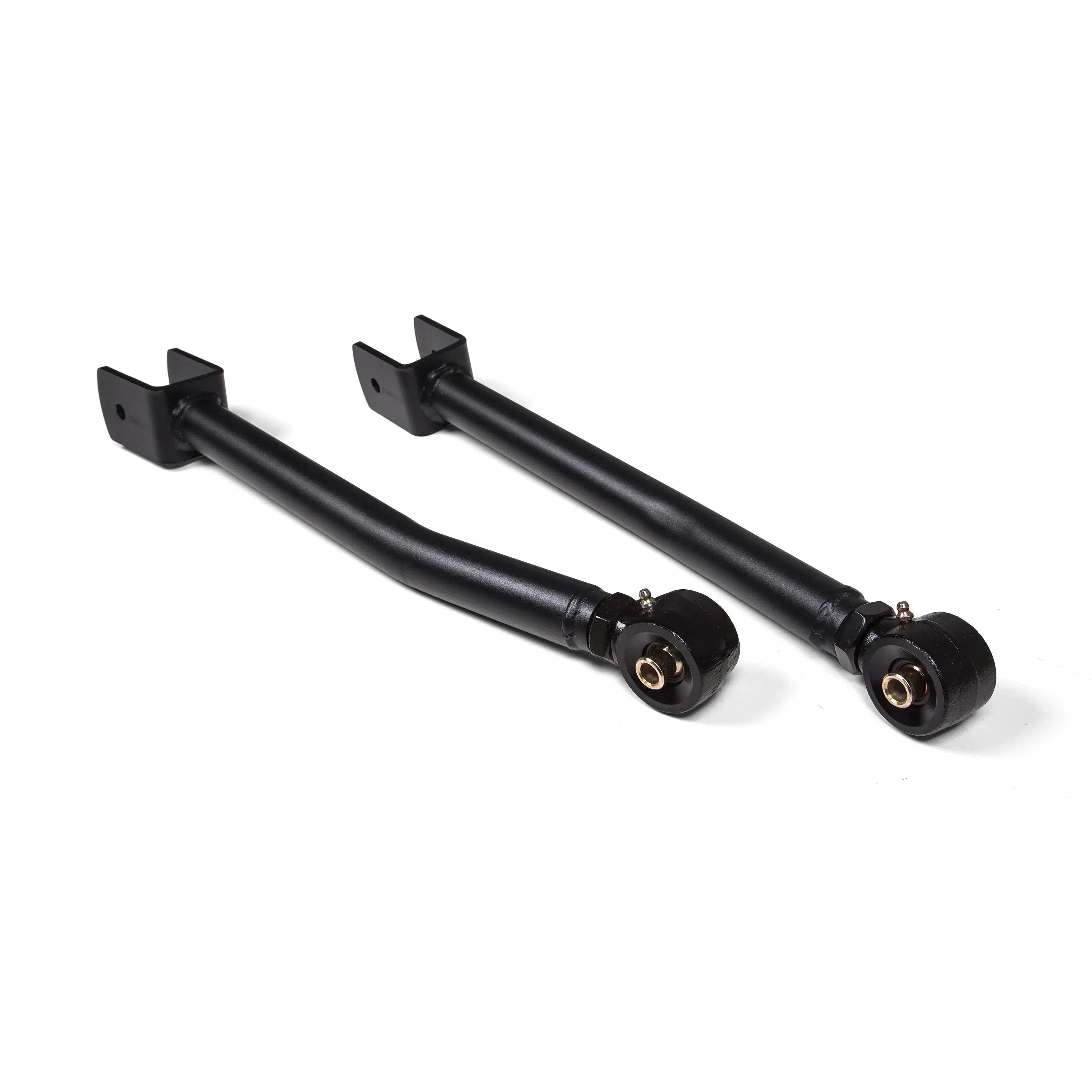

Adjustable Front UCA
Upgrade the weak factory control arms on your Jeep Wrangler JL with these new heavy duty replacements from BDS Suspension.
Designed as a bolt-in upgrade these rear upper control arms add strength and adjustability to your stock or lifted Jeep JL. These arms are built from high strength 1.75" OD x .250-wall tubing. At the axle end they utilize a OE-style rubber bushing for long service-free operation and better isolation of NVHs. At the frame mount they feature a large forged flex end for strength, durability and offroad articulation. The forged flex ends allow length adjustments to correctly positon the rear axle pinion angle. They are capable of 15-degrees of misalignment in either direction for more flex out on the trail and are finished in a durable textured black powdercoat.
As with all BDS products, these arms are backed by the No Fine Print Warranty so you can use it abuse it. Upgrade your JL control arms with BDS Suspension
Show more
If you select "No Thanks", you will have to use your Stock Front Upper Control Arms.
No Thanks
Fixed Front Lower Control Arms
Features:
- Heavy-Duty construction
- Increased length to correct caster with a suspension lift
Show more
Front Adjustable Lower Control Arm Kit
Upgrade the weak factory control arms on your Jeep Wrangler JL or Gladiator JT with these new HD replacements from BDS Suspension. Designed as a bolt-in upgrade these front lower control arms add strength and adjustability to your stock or lifted Jeep JL/JT. These arms are built from thick wall tubing and specially formed to maximize tire clearance. At the axle end, they utilize an OE-style rubber bushing for long service-free operation and better isolation of NVH's. At the frame mount, they feature a large forged flex end for strength, durability, and offroad articulation. The forged flex ends allow length adjustments to correctly position the front axle and correct caster. They are capable of 15-degrees of misalignment in either direction for more flex out on the trail and are finished in a durable textured black powder coat.
Show more
If you select "No Thanks", you will have to use your Stock Front Upper Control Arms.
No Thanks
If you select "No Thanks", you will have to use your Stock Front Upper Control Arms.
No Thanks
Lower Rear Control Arms
Upgrade the weak factory control arms on your Jeep Gladiator JT with these new HD replacements from BDS Suspension.
Designed as a bolt-in upgrade these rear lower control arms (LCAs) add strength and adjustability to your stock or lifted Jeep JT. These arms are built from thick wall tubing with an OE-style rubber bushing for long service-free operation and better isolation of NVH's. At the frame mount, they feature a large forged flex end for strength, durability, and offroad articulation. The forged flex ends allow length adjustments to correctly position the rear axle in the wheel well while correcting the pinion angle. They are capable of 15-degrees of misalignment in either direction for more flex out on the trail and are finished in a durable textured black powder coat.
Show more
