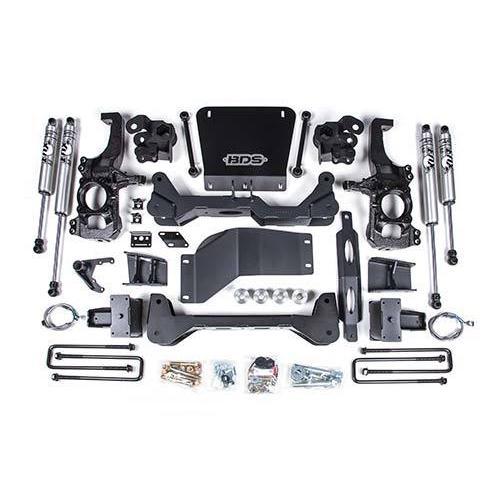

2020-2021 Duramax 6.5" NTBD Suspension Lift Kit (BDS753H)
BDS Suspension is now shipping 6.5" high clearance lift systems for the Chevy Silverado and GMC Sierra 2500HD and 3500 HD trucks. Based on the tried and true high clearance technology that has made BDS the go-to for GM suspension lifts, these systems have been designed from the ground up for the 2020 HDs to get more out of these trucks with the most ground clearance on the market. This new 6.5" lift systems are the first of many new BDS options to come available for the new trucks bringing you on-road comfort, off-road capability, and clearance for 38" tires.
Tire & Wheel Combinations:
- 37x12.50 w/ 17x9 and 4.5" - 4.625"
- 37x12.50 w/ 18x9 and 4.5" - 4.625"
- 38x13.50 w/ 20x9 or 22x9 and 5.5" - 6.18"
Notes:
- For DRW models, use the w/ overload rear lift option
- Requires frame bracket modification.
- Torsion Bar Tool required to load/unload torsion bars, The GM specified tool is #CH4880
- Models with two-piece rear driveshafts will require a carrier-bearing drop kit.
- Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire.
- In some cases, vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
- Do not install this suspension system in conjunction with any type of torsion bar lift keys to achieving more than the tested 6.5" lift height.
- Compatible with gas or diesel models.
- Compatible with standard models as well as AT4 models.
- Some minor trim will be required with a certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally include the bottom edge of the inner fender shrouds and/or lower corner of the front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate the amount of trimming required. Further trimming tips are included at the end of this instruction sheet.
- Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS753H
This Box Kit includes the following products:
- Driver & Passenger Side Torsion Bar Bracket
- Front Track Bar Bracket Spacer
- Rear Track Bar Bracket Spacer (Grooved)
- Torsion Bolt Retaining Bracket
- Bolt Pack - Torsion Bar Brackets
6.5" Box Kit
Show more
5-6.5" Front Box Kit
This Box Kit includes the following products:
- Front Cross Member
- Cross Member Brace
- Driver & Passenger Side Front Brake Line
- Brake Line Clip
- Brake Line Crush Washer
- .750 x .134 x 1.650 DOM Sleeve
- 0.750 x 0.134 x 1.255 Sleeve
- Offset Polyurethane Spacer
- Front Sway Bar Links
- Bolt Pack
- Bolt Pack - Front Brake Lines
Show more
5-6.5" Front Box Kit
This Box Kit includes the following products:
- Rear Cross Member
- Driver, Passenger & Center Differential Bracket
- Thread locker
- Sleeve - Center Differential Bracket
- Bushing - Center Differential Bracket
- Cable Ties
- Bolt Pack - Lower Control Arms
- Bolt Pack - Differential Drop
Show more
Driver's Side 6.5" Knuckle Box Kit
Show more
Passenger Side 6.5" Knuckle Box Kit
Show more
6.5" Skid Plate Box Kit
Show more
This Box Kit includes the following products:
- Cable Ties
- 8 3/4"-10 Serrated Flange Nuts
- Bolt Pack - Rear Brackets
- Driver & Passenger Side Rear Blocks
- 4 3/4 x 3-1/4 x 15-1/2 Square U-Bolt Black (Non-Overload Only)
- 4 3/4 x 3-1/4 x 15-1/2 Square U-Bolt Black (Overload Only)
5" Rear Lift Block w/o Overloads
5" lift blocks and u-bolts designed for trucks NOT factory equipped with a separate overload leaf in the rear spring pack
Show more
5" Rear Lift Blocks w/ Overloads
5" lift blocks and u-bolts designed for trucks factory equipped with a separate overload leaf in the rear spring pack. (Includes DRW)
Show more

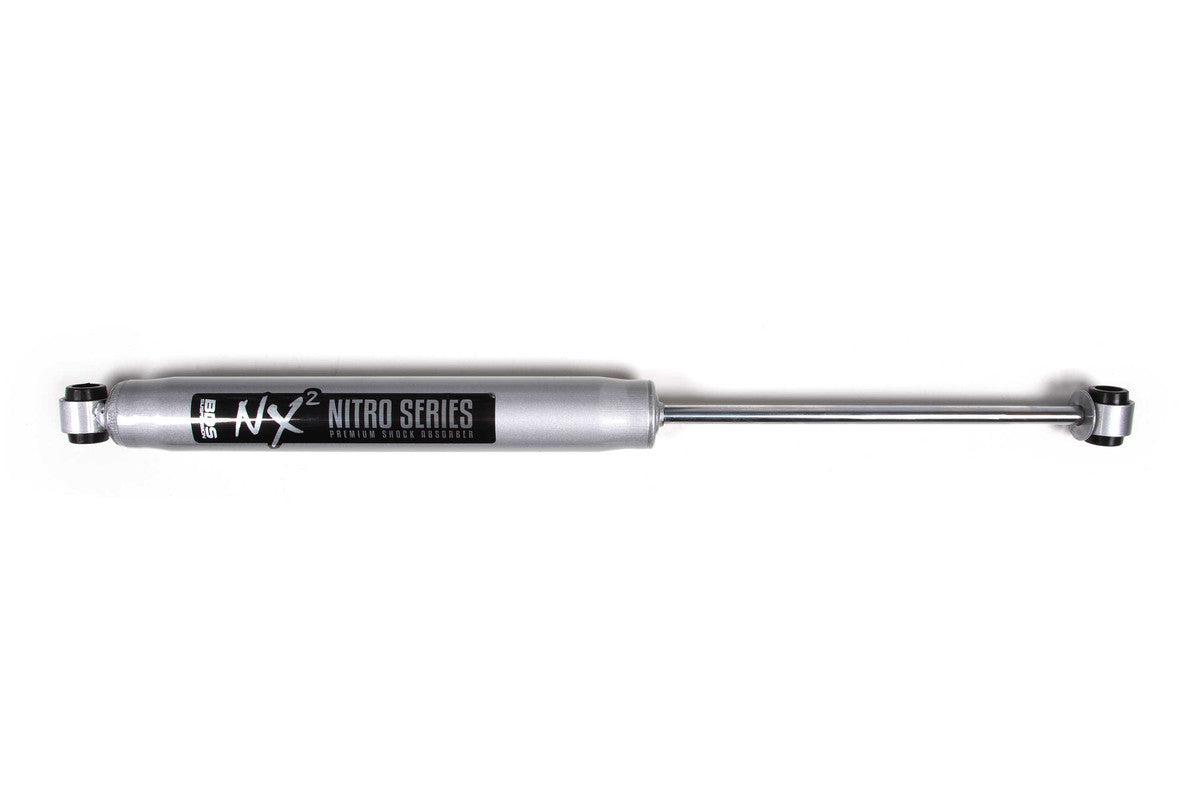

Front NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
