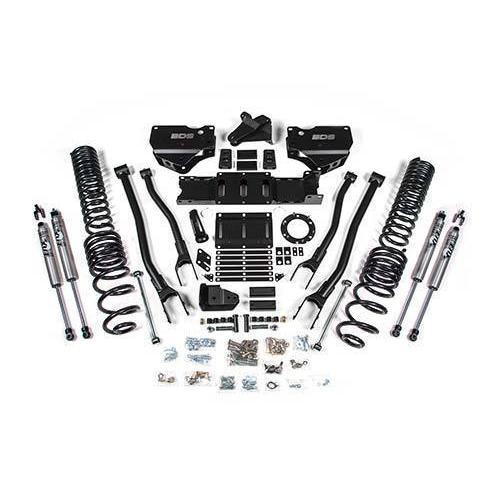

2019-2021 Cummins 2500 4WD 4" 4-Link Lift Kit (BDS1674H)
BDS Suspension expands its listings for the late model 2019+ Cummins 2500 4WD diesel trucks with new 4" 4-link conversion systems. Designed to improve the looks and performance of your new RAM, these new kits join existing radius arm variants to offer improved strength and handling on/off-road. This kit includes everything necessary to correctly lift them for improved offroad capability with room for larger tires while improving overall vehicle handling.
Tire & Wheel Combinations:
- 37x13.50 w/ 20x9 or 18x9 and 5.625"
- 37x12.50 w/ 20x9 or 18x9 and 5"
Notes:
- Will not fit air-ride equipped Models
- Will not fit PowerWagon Models
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS1674H

4" Front Coil Springs
Show more
4-Link Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side 4-Link Brackets
- Driver & Passenger Side Brakeline Brackets
- 2 Bump Stops
- Front Track Bar Bracket
- Pitman Arm
- 2 Weld in Bungs
- 2 Machined 4-link Sleeves
- 2 Sway Bar Drop Brackets
- 2 3-1/4” Sleeves
- 4 Cam Plates
- 2 BDS Badges
- CV Boot Large
- CV Boot Small
- 2 1/2-13 Rivet Nut
- 2 Bolt Pack (Badge)
- 3 1/8” SS Rivets
- Bolt Pack (Cam Plates)
- Bolt Pack (4-Link Bracket)
- Bolt Pack (Brake Line Bracket)
- Bolt Pack (Track Bar Bracket)
- Bolt Pack (Sway Bar)
- Bolt Pack (Rivet Nut)
Show more
4-Link Box Kit
This Box Kit includes the following products:
- Upper & Lower Control Arm
- 4 Bushings (Large - Lower Control Arm)
- 2 1.00 x .120 x 3.25 Sleeves
- 2 Straight Grease Zerks
- 4 Bushing (Small - Upper Control Arm)
- 2 .875 x .156 x 2.62 Sleeves
- 2 90 Degree Grease Zerks
Show more

6-Bolt Transfer Case Indexing Kit
Show more
2.5" Rear Coil Box Kit
Show more

NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more

Fox 2.0 Series Shocks (2x)
Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.
Show more

NX2 Series Shocks (2x)
Show more
