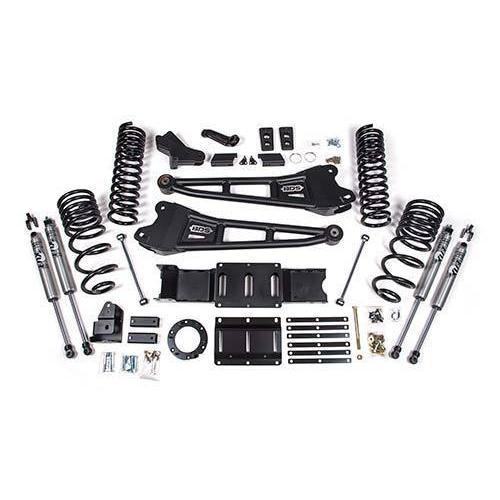

2019-2021 Cummins 2500 4" Radius Arm Lift Kit (BDS1660H)
BDS Suspension is now shipping complete 4" Radius Arm Suspension Lift Kits. These kits have been engineered for improved on-road comfort and offroad capability. This kit includes high-strength tubular radius arms, front, and rear progressive rate coil springs, your choice of gas shocks, steering correction; everything you need to properly lift your Cummins.
Tire & Wheel Combinations:
- 37x12.50 w/ 17x9/18x9/20x9 and 5.625"
- 35x12.50 w/ 17x9/18x9/20x9 and 4.5"
Notes:
- T-case indexing ring designed for vehicles with 6-bolt design only, will not fit trucks with 8-bolt
- Will not fit rear air-ride equipped models
- Will not fit Power Wagon models
- Kit designed for diesel models only
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS1660H
4" Front Coil Springs
Show more
4" Front Box Kit
This Box Kit includes the following products:
- Pitman Arm
- Trackbar bracket
- Fish Wire
- Driver & Passenger Side Brakeline Bracket
- Zip Ties
- 2 CV Joint Boot Clamp
- Driver & Passenger Side Sway Bar Drop
- 3 Bolt Packs
Show more
6--Bolt Transfer Case Indexing Kit
Show more
2-4" Radius Arm Upgrade Kit
Show more
NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
Fox 2.0 Series Shocks (2x)
Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.
Show more
NX2 Series Shocks (2x)
Show more
Fox 2.0 Series Shocks (2x)
Show more
No Thanks
NX2 Single Steering Stabilizer
Show more
If you have selected a dual steering stabilizer, this kit is required.
No Thanks
These new track bars are a massive upgrade to the factory unit, constructed from 1-3/8 solid steel stock reinforced with gusseted ends to handle whatever on-road and off-road abuse you can through at it. Adjustments are made at the 1-3/8-12 fine threaded center turnbuckle with pinch bolt ends to allow easy tuning to properly recenter the front axle for a range of lift heights. The track bar is formed for proper clearance around critical front-end components and is designed to easy installation without the need to clear the factory frame and axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and reliability. Parts come with a high-quality textured black powder coat finish for a great look and excellent corrosion resistance. They are designed for use on 0-3" of lift and can be used in combination with most aftermarket track bar brackets to be used on taller lift heights.
No Thanks
The kit comes with multiple shim plates for full adjustability from 1/8" to 1-1/2" of drop. Includes necessary hardware.
For all 3"+ Lift Kits.
No Thanks
Universal Carrier Bearing Drop Spacer
Show more
