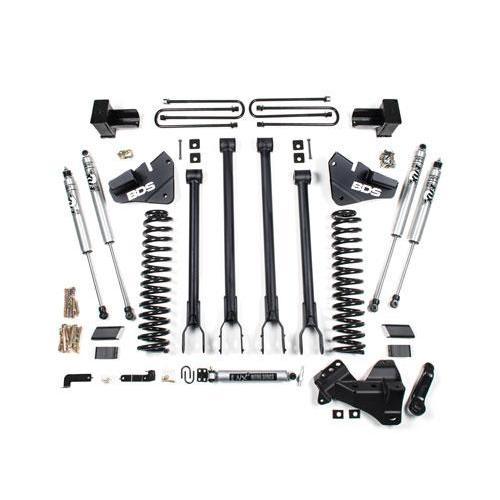

2017-2019 Powerstroke 4" 4-Link Lift Kit (BDS1537H)
Take your new Super Duty to the next level with the tried & true BDS 4-link conversion system. A big upgrade for your truck, these high-strength 4-link conversions offer improved handling, stability, strength, & caster control during wheel travel. In the rear of these 4" systems, BDS offers multiple lift options for both the OE 2-leaf main spring pack & OE 3-leaf main spring pack equipped trucks. With BDS NX2 or Fox 2.0 Series shocks to compliment the front setup for all-around impressive performance.
Tire & Wheel Combinations:
- 37 x 12.50 w/ 17 x 9 and 4.5" - 5"
- 37 x 12.50 w/ 18 x 9 and 4.5" - 5"
- 37 x 12.50 w/ 20 x 9 and 4.5" - 5"
Notes:
- Front exhaust modification may be required to clear the front driveshaft (Gas Only)
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 37 x 12.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- If your truck is equipped with a factory rear sway bar add: 123005
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS1537H
4" Front Coil Springs
Show more
6" 4-Link Box Kit
This Box Kit includes the following products:
- Upper & Lower 4-Link Arm
- Bolt Pack - 4-link Arm Hardware
- Bag Kit - Upper & Lower Arms
- 4 90 degree grease fittings
- 4 1.0 x 0.120 x 3.25 DOM Sleeves
- 8 Bushings
- Cam Lock Plates
Show more
4" 4-Link Box Kit
This Box Kit includes the following products:
- Pitman Arm
- Front Bump Stop Extension
- Track Bar Bracket
- Driver & Passenger Sway Bar Drop
- Driver & Passenger 4-Link Bracket
- BDS Badge
- Rivet Bolt Packs
- Track Bar Cam Washer
- Driver & Passenger Side Front Brake Line Bracket (4" & 6" Box Kit)
- U-hardline extension (6" Box Kit)
- 4-Link Bracket Nut Tab
- M8-1.25 x 130mm Bolts
- 5/16" SAE Flat Washers
- Zip Ties
- Drive Shaft Boot Clamp
- 1/8" x 1-1/4" Cotter Pin
- Bolt Pack - 4-Link Bracket
- Bolt Pack - ABS Wire Clamp (4" Box Kit)
- Bolt Pack - Sway Bar Drop Bracket
Show more
Note:
- Some F250/350 factory options increase the main leaf pack count from 2 to 3 leafs (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option below.
5" Rear Block Kit w/ 2 Leaf Main
Show more
4" Lift Rear Leaf Spring (2x)
Show more
Choose this option if you have selected full leaf spring replacements.
This Box Kit includes the following products:
- 4 5/8 x 3-1/8 x 11 U-Bolts
- 7/8 washers
- E-Brake Relocation Bracket
- E-Brake Relocation Clamp Bracket
- Bolt Pack - E-Brake Relocation
- 5/8 washers
- 5/8 high nuts
- 7/16 x 4 Pin w/Nut
4" Rear Leaf Spring Box Kit
Show more
