2017-2019 3.0L Powerstroke 4" Lift Kit (BDS1533H)
Take your F150 up a notch in strength, control, and stance with the BDS 4" lift kit! This Performance system brings together safety and capability with uncompromising on and off-road performance. All BDS kits have everything you need to properly lift or level your truck without the hassle of searching for the proper parts.
Tire & Wheel Combinations:
- 35" x 12.50" w/ 18 x 9 and 5"
- 35" x 12.50" w/ 18 x 9 and 5 - 5.5"
- 35 x 12.50 w/ 20 x 9 and 5-5.5"
Notes:
- 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle.
- 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122405
- Kits manufactured after July 1st WILL WORK on Diesel Models.
- Requires frame bracket modification.
- This kit is FMVSS No.126 Compliant The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers.
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS1533H
This Box Kit includes the following products:
- 2 4" Strut Spacers
- Bag Kit
- 2 Bolt Packs
4" Spacer Box Kit
Show more
Front Box Kit
This Box Kit includes the following products:
- Drive Shaft Spacer
- Front & Rear Cross Member
- Differential Support Bracket
- 8 Eccentric Cams
- 4 Eccentric Bolts
- 4 M18-2.5 prevailing torque nuts
- Strap w/stud
- Bolt Pack - Drive Shaft Spacer
Show more
Front Box Kit
This Box Kit includes the following products:
- Driver & Passenger Differential Drop Bracket
- Differential Support Bracket
- Differential Skid Plate
- Sway Bar Drop
- 5/16” x 10” Hose
- Bolt Pack - Differential Drop
- Bolt Pack
Show more
Drivers Side Knuckle Box Kit
Show more
Passenger Side Knuckle Box Kit
Show more
4" Rear Block Kit
Show more
Rear NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
Rear Fox 2.0 Series Shocks (2x)
Show more
Features:
- Adjustable axle wrap control utilizing dual-stage resistance springs
- Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
- Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling)
- Traction bar ends are greaseable and rebuildable
No Thanks

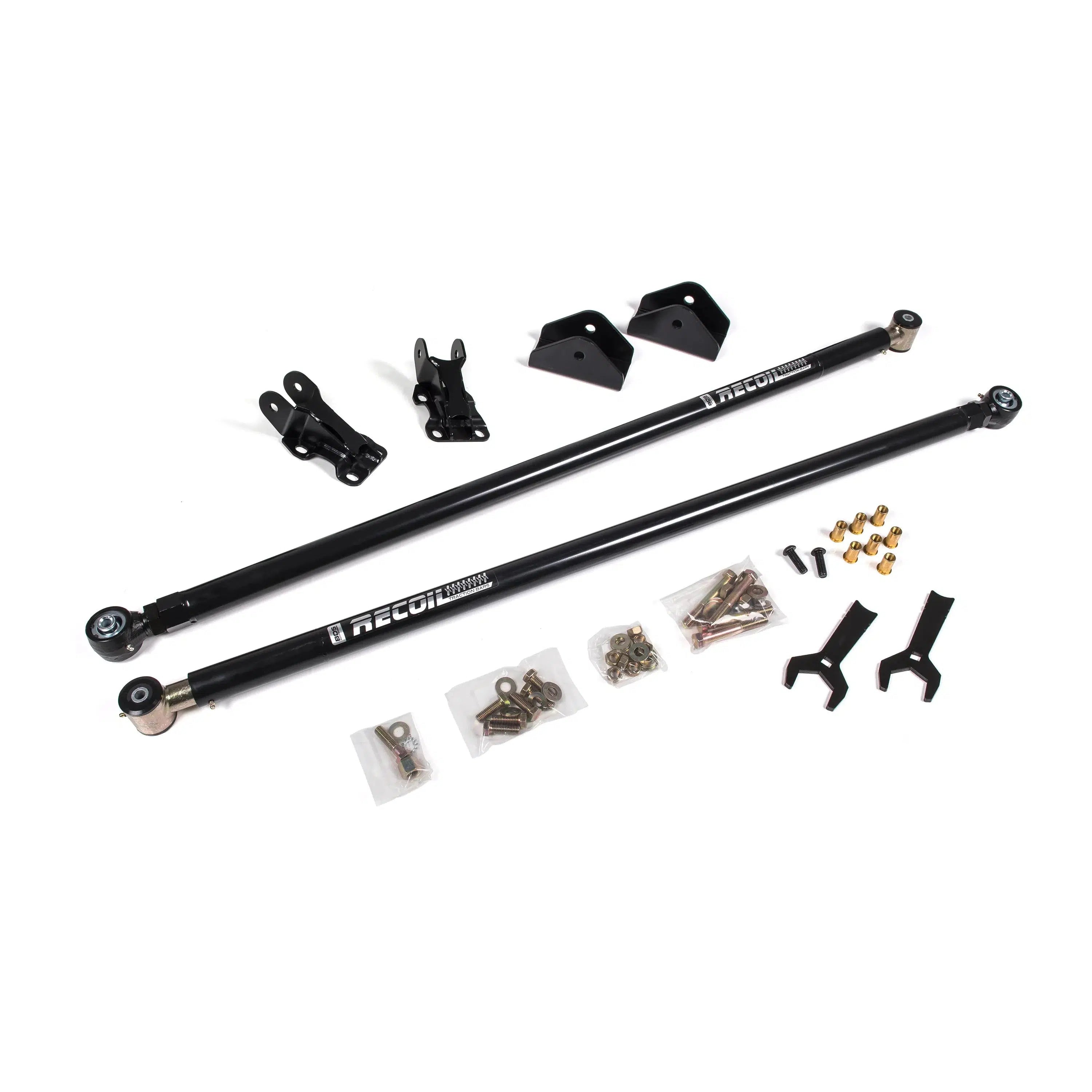

Universal Recoil Traction Bar
Show more
Required if you have selected the Traction Bar.
No Thanks
Recoil Traction Bar Mounting Kit
Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.
Note:
- Does not fit regular cab models
- Must measure axle - this kit fits trucks with 3-5/8" axle tube diameter
Show more
These performance control arms are built from high strength 1.5" OD x .120-wall tubing, fully welded for strength and durability. They use an indexed ball joint cup to correct the ball joint positioning for use with leveling kits and most full IFS lift kits on the market. The frame mounting ends feature durometer-specific rubber bushings. At the other end, they use an indexed ball joint cup with premium Moog brand ball joints for smooth, quiet operation and superior durability to arms that feature uniballs, poly bushings, or heims. These control arms come finished in a durable black powder coat and include a billet aluminum machined ball joint dust cap as well as proper brake line attachment points to ensure a factory-like fit. The control arms come fully assembled for easy installation right out of the box.
No Thanks
Upper Control Arm Box Kit
Show more
The kit comes with multiple shim plates for full adjustability from 1/8" to 1-1/2" of drop. Includes necessary hardware.
Note:
- For all 3"+ Lift Kits.
No Thanks
Carrier Bearing Drop Spacer
Show more
