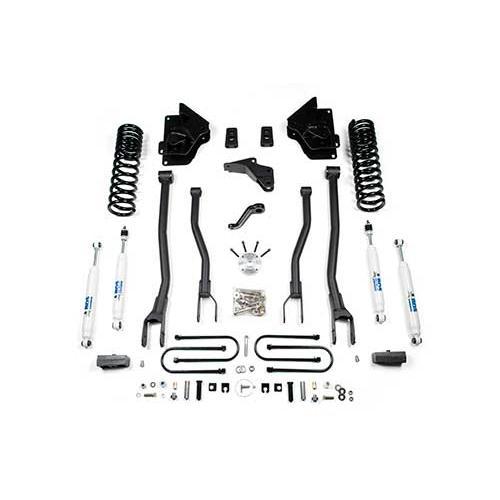

2013-2018 Cummins 4" 4 Link Lift Kit (BDS697H)
Convert your Cummins away from the problematic factory radius arm suspension setup to the custom BDS Suspension 4-Link system. The design starts with 2 massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets locate off of the factory radius arm brackets, no factory bracket removal is required. The new 4-Link brackets mount is similar to the current radius arm relocation brackets, wrapping the frame and nesting in the factory radius arms mounts. As with the radius arm brackets, there is a minor amount of welding required to install the threaded frame insert (1 per side). This insert is necessary to provide the strongest possible mount.
Tire & Wheel Combinations:
- 37" x 12.50 w/ 17" x 9" and 5.625"
- 35" x 12.50" w/ 18" x 9" and 4.5
- 35" x 12.50" w/ 20" x 9" and 4.5
Notes:
- For rear leaf spring equipped models only.
- The carrier bearing drop kit (122405) is necessary for models equipped with a two-piece rear driveshaft.
- Minor amount of welding required
- Will not fit Cab and Chassis models
- Not for use with factory rear airbag suspensions
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS697H
4" Front Coil Springs
Show more
4-Link Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side 4-Link Brackets
- 2 Weld-In Bungs
- 2 Machined Spacer Sleeves
- Rivet Nut Installation Bolt Pack
- 2 1/2" Rivet nuts
- 2 1.00 x .120 x 3.25 Sleeves
- 2 1.250 x 0.312 x 0.875 Sleeves
- 2 Brake line Relocation Brackets
- 2 5/16"-18 x 3/4" Type 23 Self Threading Bolts
- 2 1/16” Shims
- 2 1/8” Shims
- Pitman Arm
- 4/6" Track Bar Bracket
- 2 Track Bar Cam Washers
- Fish Wire
- 1/2" Bolt Tab
- 1/4” Spacer
- Front Driveshaft Spacer
- 2 Bump Stops
- 2 BDS Badges
- 2 Rivet Bolt Packs
- Bolt Pack
- Bolt Pack - 4 Link Brackets
- Bolt Pack Driveshaft Spacer
Show more
4-Link Box Kit
This Box Kit includes the following products:
- Upper & Lower Control Arm 4-Link Conversion
- 2 Straight Grease Zerks
- 2 1.00 x .120 x 3.25 Sleeves
- 4 Bushing (Large - Lower Control Arm)
- 4 Bushing (Small - Upper Control Arm)
- 2 .875 x .156 x 2.62 Sleeves
- 2 90Deg Grease Zerks
Show more
2" Rear Box Kit
Show more
3" Rear Box - (4" Axle)
This system comes standard with a 3" rear block kit that will typically produce a slightly tail-high stance.
Show more
NX2 Series Shocks | Single (2x)
Note:
- Select this option if you would like Single NX2 Series front shocks.
- DO NOT select this option if you would like dual shocks in the front. If you would like dual front shocks, skip to the rear shock selection and select (6).
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
Fox 2.0 Series Shocks (2x)
Show more
BDS NX2 Series | Single or Dual Shock
Note:
- Select 2 if you would like Single Rear Shocks
- Select 6 if you would like Dual Shocks
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
Fox 2.0 Series | Single or Dual Shock
Note:
- Select 2 if you would like Single Rear Shocks
- Select 6 if you would like Dual Shocks
Show more
Required if you have selected Dual Front Shocks.
No Thanks
Dual Shock Mounting Bracket
Show more
No Thanks
Required if you have selected Dual Steering Stabilizers.
No Thanks
Dual Steering Stabilizer Bracket Kit
Show more
Ram trucks have an optional Aisin heavy-duty 6-speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). The 8-bolt kit also includes an internal shaft seal extension and a new shaft seal.
No Thanks
6-Bolt Transfer-Case Indexing Ring
Show more
8-Bolt Transfer-Case Indexing Ring
Show more
This upgrade kit includes everything needed to convert the base links included in the lift system to a disconnecting link. It is a simple conversion that does not require removing the links from the sway bar.
No Thanks
Sway Bar Disconnects
Show more
No Thanks
Universal Recoil Traction Bar
Show more
Standard Series Traction Bar
Show more
The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.
Note:
- Required if you selected the Recoil Traction Bar
- Bracket kits are vehicle specific.
No Thanks
Recoil Traction Bar Mounting Kit - (4" Axle/ SRW)
Show more
BDS is now offering an HD adjustable front track bar for the RAM 2500 and 3500 trucks. These new track bars are a massive upgrade to the factory unit, constructed from 1-3/8 solid steel stock reinforced with gusseted ends to handle whatever on-road and off-road abuse you can through at it. Adjustments are made on the 1-3/8-12 fine threaded center turnbuckle with pinch bolt ends to allow easy tuning to properly recenter the front axle for a range of lift heights. The track bar is formed for proper clearance around critical front-end components and is designed to easy installation without the need to clear the factory frame and axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and reliability. Parts come with a high-quality textured black powder coat finish for a great look and excellent corrosion resistance. They are designed for use on 0-3" of lift and can be used in combination with most aftermarket track bar brackets to be used on taller lift heights.
No Thanks
No Thanks
Rear Driveshaft Spacer
Show more
The kit comes with multiple shim plates for full adjustability from 1/8" to 1-1/2" of drop. Includes necessary hardware.
Note:
- For all 3"+ Lift Kits.
No Thanks
Carrier Bearing Drop Spacer
Show more
