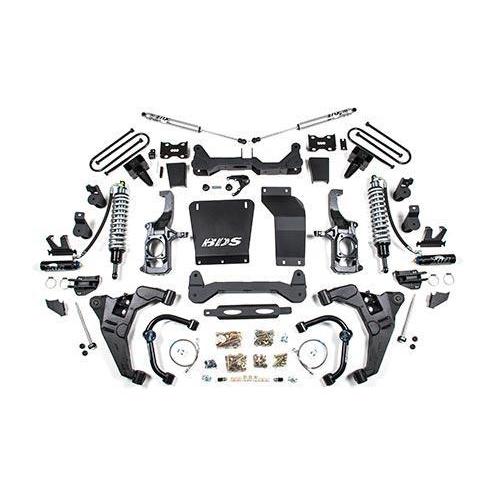

2011-2019 Duramax 6.5" Coilover Lift Kit (BDS727FDSC)
Coilovers aren't just to lower your vehicle! If you're serious about performance then BDS offers this conversion kit for your GMC/ Chevrolet. With high-quality parts, this kit will improve handling at high speeds & overall ride quality. FOX 2.5 Coilovers w/ Remote DSC Adjustment, BDS LSCs to Improve Travel, Fully Boxed & Gusseted HSCs offer Next Level Performance On & Off-road. Compatible with existing 4.5" & 6.5" BDS Lifts Easy Installation.
Tire Fitment:
- 6.5” Kit: 37 x 12.50 on 17” x 9” w/ 4-1/2 to 4-5/8” Backspacing
- 37 x 12.50 on 18” x 9” w/ 4-1/2 to 4-5/8” Backspacing
- 37 x 12.50 on 20” x 9” w/ 5 to 5.5” Backspacing
- Larger than 20”, use 20” wheel specs
Notes:
- For use with 6.5" high clearance lift kits only.
- Not approved for use with other brand lift kits or as a stand-alone upgrade.
- This System cannot be set lower than 6.5" as it will cause alignment issues.
- Stock 20” x 8.5” wheels are not recommended, however, they can be reinstalled if necessary.
- Stock 17” and 18” wheels will not fit back on the vehicle once this suspension system is installed.
Installation:
- Click Here For Installation Instructions
- Difficulty Level (easy 1 - 5 complicated): 4
Part Number: BDS727FDSC
Fox 2.5 Series Coilovers
When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.
Show more
Coilover Conversion Mounting Kit
This Box Kit includes the following products:
- Driver & Passenger Side Upper Mounts
- Driver & Passenger Side Weld-in Support Gusset
- Driver & Passenger Side Reservoir Mounts
- 2 Sway Bar Links
- 2 Wide Eb1 Bushings
- 4 Sway Bar Link Stem Bushings
- 2 3/4" OD x 1.575" x 9/16" ID Sleeve
- 2 1/4"-20 x 3/4" Self-tapping Bolt CZ
- Zip Ties
- Bolt Pack - Mounting Hardware
- Bolt Pack - Sway Bar Links
- Front & Rear Stop Extensions
- 2 Nut Tabs
- 3 1/2" Rivet Nuts
- 3 3/8" Short Rivet Nuts
- 3 3/8" Tall Rivet Nuts
- Bolt Pack - Bump Stop Hardware
Show more
Front Skid Plate
Show more
Upper Control Arm Kit
This Box Kit includes the following products:
- Driver Side UCA Assembly & HD UCA
- Passenger Side UCA Assembly & HD UCA
- 2 Ball Joints
- 4 Bushings
- 2 Aluminum Cap - Anodized
- 2 O-rings (#139)
Show more
Drivers Side Lower Control Arm
This Box Kit includes the following products:
- Driver Side LCA Assembly & HD LCA
- Lower Ball Joint (Moog)
- Front & Rear Lower Bushing
- 2 BDS Large Logos
- 2 Stainless Button Head Bolt
Show more
Passenger Side Lower Control Arm
This Box Kit includes the following products:
- Passenger Side LCA Assembly & HD LCA
- Lower Ball Joint (Moog)
- Front & Rear Lower Bushing
- 2 BDS Large Logos
- 2 Stainless Button Head Bolt
Show more
4.5-6.5" System
This Box Kit includes the following products:
- Driver & Passenger Side Steering Knuckles
Show more
4.5-6.5" System
This Box Kit includes the following products:
- Driver & Passenger Side Steering Knuckles
Show more
4.5-6.5" System
This Box Kit includes the following products:
- Front Crossmember
- Crossmember Brace
- Driver & Passenger Side Front Brake Lines
- 2 Brake Line Clips
- Bolt Pack - Front Brake Lines
Show more
6.5" Coilover Box Kit
This Box Kit includes the following products:
- Driver, Passenger & Center Differential Bracket
- Rear Crossmember
- Differential Skid Plate
- Bolt Pack
- 0.875 x 0.120 x 2.60 Differential Sleeve
- 8 3/4" SAE Flat Washers
Show more
Fox 2.0 Series Shocks (2x)
Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.
Show more
Note:
- 3" block - Will result in a slightly tail-low stance.
- 4" block - Most common for level front/rear stance.
- 5" block - Will result in a level to slightly tail high stance, integrates a u-bolt flip kit with new spring plate.
3" Block Kit w/o Overload Spring
This selection is for a rear 3" block kit with 13.5" long u-bolts for vehicles that are not equipped from the factory with a top mounted overload spring.
Show more
3" Block Kit w/ Overload Springs
This selection is for a rear 3" block kit with 15.5" long u-bolts for vehicles equipped from the factory with a top mounted overload spring.
Show more
4" Rear Block Kit
This option will work with trucks with a Top Mounted Overload and trucks without the Top Mounted Overload.
Show more
5" System w/o overload
This selection is for a rear 5" block kit with 16" long u-bolts for vehicles that are not equipped from the factory with a top-mounted overload spring.
Show more
5" Block w/ Overloads
- Will not fit dually models
Show more
No Thanks
NX2 Series Single Steering Stabilizer w/ Factory Mount
Note:
- This single stabilizer is an OE replacement. This system will not fit if your vehicle was not already equipped with a stabilizer.
Show more
No Thanks
Single Steering Stabilizer Bracket Kit
Show more
No Thanks
Universal Recoil Traction Bar
Show more
Required if you have selected the Recoil Traction Bar.
No Thanks
Recoil Traction Bar Mounting Kit
Bracket kits are vehicle specific. The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.
Show more
The carrier bearing drop is recommended for trucks with 2-piece rear driveshafts.
No Thanks
Carrier Bearing Drop Spacer
Show more

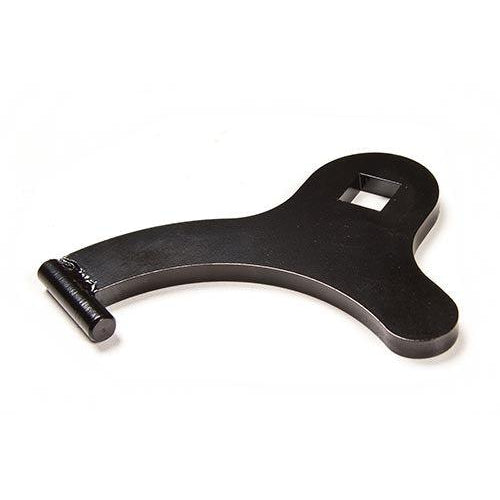

The BDS spanner wrench for BDS Fox 2.5 Coil-overs features a unique design that uses a 1/2" ratchet or 1/2" breaker bar as the handle. Using a ratchet allows the spanner wrench to function in multiple positions making it much easier to use in tight IFS suspension setups. The spanner wrench is a pin-style design that is precision machined to fit in the Fox adjustment collar holes. This precise fit provides the best grip and reduces the chance of damage to the tool, adjustment collar, and your knuckles. The tool was designed for ease of use and includes user instructions.
No Thanks
Universal Coilover Spanner Wrench
Show more
