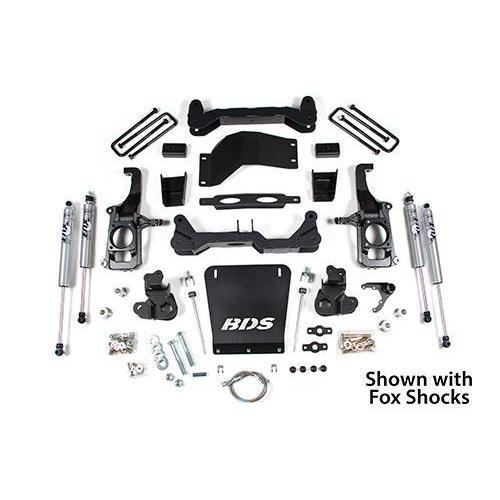

2011-2019 Duramax 4.5" BDS Lift Kit (BDS719H)
Take your Duramax up a notch with this BDS 4.5" lift kit. Like many of our other IFS suspension systems for the Duramax, this 4.5" system is packed with the same features and benefits of the current 6.5" kit but designed for a lower lift height for those looking for a more modest setup.
Tire & Wheel Combinations:
- 35" x 12.50" w/ 17 x 8 and 4-1/2" to 4-5/8"
- 35" x 12.50" w/ 18 x 9 and 4-1/2" to 4-5/8"
- 35" x 12.50" w/ 20 x 9 and 5" - 6"
Notes:
- Torsion Bar Tool required to load/unload the torsion bars.
- Stock 17" & 18" wheels cannot be reinstalled.
- Stock 20" wheels cannot be reinstalled on 2015-2019 models
- Factory dually wheels cannot be reinstalled.
- Models with two-piece rear driveshaft may require #12161
- Top-mounted rear overload spring-equipped models require a different kit than non-overload-equipped models. Be sure to select the correct option for your truck.
- Depending on the specific wheel and tire combination trimming may be required for 35x12.50s
Installation:
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
Part Number: BDS719H
4.5-6.5" Front Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side Steering Knuckle
Show more
4.5-6.5" Front Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side Steering Knuckle
Show more
4.5-6.5" Front Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side Front Brakeline
- Front Crossmember
- Crossmember Brace
- 2 Brake Line Clip
- Bolt Pack - Front Brake Lines
Show more
4.5-6.5" Front Box Kit
This Box Kit includes the following products:
- Driver, Passenger & Center Differential Bracket
- 2 Sway Bar Link
- Rear Crossmember
- 2 Upper Shock Mounts
- 4 1/2"-13 x 1-1/4" bolts
- 8 1/2" SAE flat washers
- 4 1/2"-13 prevailing torque nuts
- 2 Sway Bar Link Brackets
- 2 0.625 x 0.109 x 1.375 Sleeves
- 4 Stem Washers
- Loctite
- Sleeve - Center Differential Bracket
- 2 Bushing - Center Differential Bracket
- 2 Sway Bar Link Bushings
- 4 Stem Bushings
- Bolt Pack - Lower Control Arms
- Bolt Pack - Main Assembly
- Bolt pack - Sway Bar Links
Show more
Front Skid Plate
Show more
4.5" Torsion Bar System
Show more
2" Rear Block w/ Overload
Show more
2" Rear Block w/o Overload
Show more
3" Rear Block w/ Overload
Show more
3" Rear Block Kit w/o Overload
Show more
4" Rear Block w/ or w/o Overload
Show more

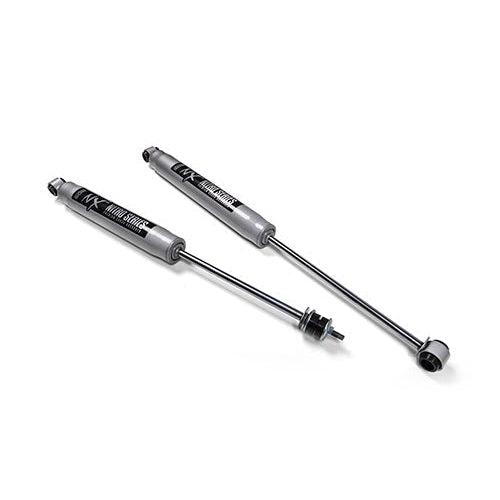

NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
Fox 2.0 Series Shocks (2x)
Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.
Show more
