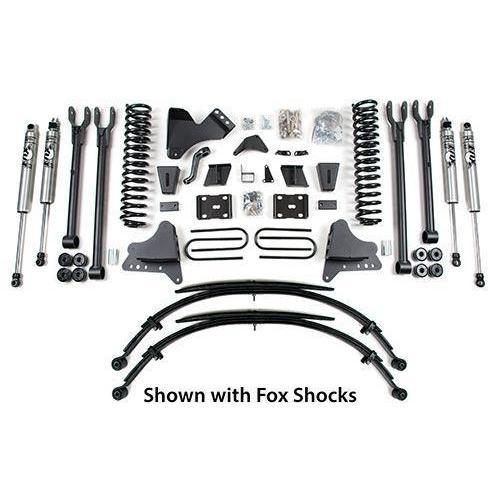

2011-2016 Powerstroke 8" BDS 4-Link Conversion Lift Kit (BDS1500H)
This BDS system converts your truck to an 8" lifted 4 link setup monster! Why a 4-link system? It's simple, with 10" of wheel travel there is less than 1 degree of caster change (front axle rotation), which means more control in the steering wheel over rough terrain. The stability in the steering wheel is noticeable even under normal driving conditions. In addition to 4 massive control arms, this kit comes with new 4-link frame mounting brackets.
Tire & Wheel Combinations:
- 38" x 15.50" w/ 17 x 9 and 4.5"
- 38" x 15.50" w/ 18 x 9 and 4.5"
- 38" x 15.50" w/ 20 x 9 / 20 x 10 and 4.5"
Notes:
- Exhaust modification may be required to clear the front driveshaft (gas only)
- Front bumper spacer kit may be required to run 38"x15.50" tires
- Although extremely rare, front driveline vibration may occur
- If equipped with a 2-piece rear driveshaft, a driveshaft alignment kit will be required
- Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
- If equipped with a rear sway bar, #123009 is required.
- U-bolts will not work on dually. BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload-equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS1500H

8" Front Coil Springs
Show more
8" 4-Link Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side Front Brakeline
- 2 Rear Brake Lines
- 6 Brake Line Clips
- 4 3/8" Crush Washers
- Driver & Passenger Side Brakeline Bracket
- Pitman Arm
- Stabilizer Bracket
- Stabilizer Spacer
- 2 Bolt Packs
- Sway Bar Drop Bracket
- Track Bar Bracket
Show more
8" 4-Link Box Kit
This Box Kit includes the following products:
- 2 4-Link Brackets
- 8 Bushings
- 4 90° Grease Zerks
- 2 Bolt Packs
- 4 1.000 x 0.120 x 3.250 Sleeves
- Upper & Lower Control Arm
- Fuel Module Spacer
- 1" Block
- Hanger Bracket
- 2 U-Bolt Plates
- 4 5/8" x 3-5/8" x 12" Round U-bolts
- 8 5/8" High Nuts
- 8 9/16" USS Flat Washers
Show more

8" Rear Leaf Spring (2x)
Show more

NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
