2011-2016 Powerstroke 2.5" Coilover Lift Kit (BDS1510F)
These Fox 2.5 Series Coilovers with improved dampening capability and performance across any terrain; convert your Powerstroke from the original Coil spring front end to a setup greatly increasing your control and versatility of your truck with minimal lift.
Tire & Wheel Combinations:
- 35" x 12.50" w/ 17 x 9 and 5"
- 35" x 12.50" w/ 18 x 9 and 5"
- 35" x 12.50" w/ 20 x 9 and 5"
Notes:
- Designed for Diesel models w/o top mounted overload rear springs
- Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit in order to achieve a more level stance.
- For a more tail-high stance, substitute #013519 5" rear block kit
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS1510F

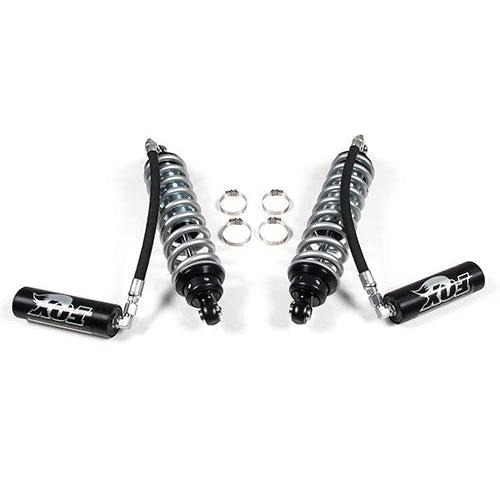

Fox 2.5 Remote Reservoir Coilovers
When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length; designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.
Show more

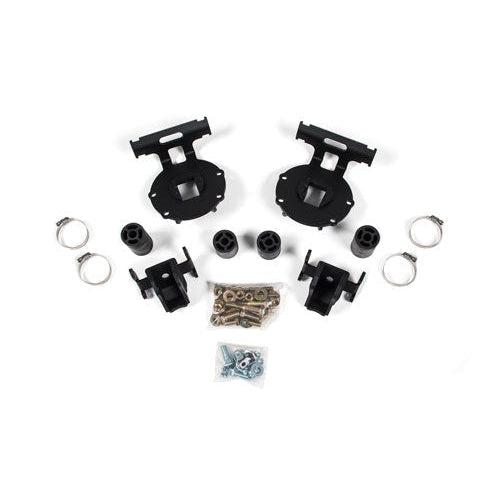

Coilover Mounting Kit
This Box Kit includes the following products:
- 2 Lower Coilover Mounts
- 2 Upper Coilover Mounting Brackets
- 6 Zip Ties
- 2 Bolt Packs
Show more
2.5" Front Box Kit
This Box Kit includes the following products:
- Trackbar Assembly
- Trackbar Bag Kit
- 2 Trackbar Bushings - Black
- Trackbar Sleeve
- Grease Zerk
- 2-1/2” Component Bag Kit
- 2 Alignment Cams
- 2 Superduty Front Coil Shims
- 2 4 degree Bolt Adaptors
- Bolt Pack - Lower Coil Seat
- Driver & Passenger Side Brakeline Brackets
- Loctite
Show more
Choose from a 4", 5", or no rear block kit to achieve your preferred stance. Notice: Some F250/350s come equipped from the factory with a 3-3/4" rear block and do not require a rear block kit to achieve a more level stance. If a more tail high stance is preferred choose the 5" rear block option.
No Thanks
4" Rear Block Kit
This Box Kit includes the following products:
- 2 4" Superduty Rear Blocks
- 4 5/8" x 3-1/8" x 14" Semi-Round U-bolts
Show more
5" Rear Block Kit
This Box Kit includes the following products:
- 2 5" Rear Superduty Blocks
- 2 Superduty Rear Spring Plates
- 4 3/4" x 3-5/8" x 15" Round U-bolts
- Bag Kit
- 8 3/4" Serrated Edge Flanged Nuts
Show more
Important: With the Coilovers & the Mounting kit provided, you have the option of keeping the factory location shocks or upgrading to Fox 2.0.
No Thanks

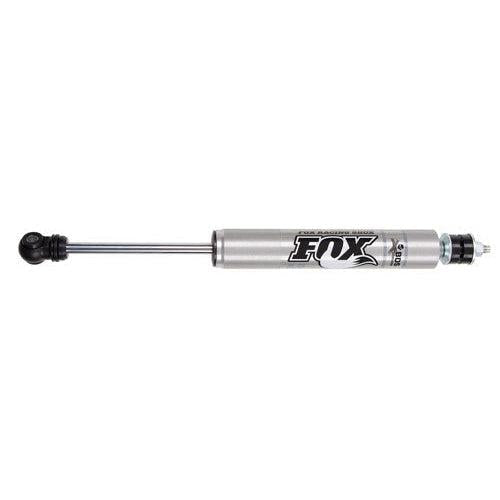

Fox 2.0 Series Shocks (2x)
Show more
No Thanks
NX2 Series Single Steering Stabilizer
- Will fit stock height vehicles.
Show more
Required if you have selected Single or Dual Steering Stabilizers.
No Thanks
Single Steering Stabilizer Bracket Kit
Steering Dampers may differ from the installation image.
Note:
- Will fit stock height vehicles.
Show more
BDS RECOIL traction bars are built to the highest standards for the ultimate performance on and off-road. The bars are fabricated from 2'' OD x 3/16'' wall steel tubing with a threaded bung welded in toward the axle and a CNC machined end at the frame. The axle mount uses the tried and true BDS large forged flex end and jam nut to take whatever abuse you throw at it. BDS forged flex ends use a forged housing with a large 1-1/4'' -12 threaded shank, single-sided snap ring, and 1-piece flex ball for up to 15-degrees of misalignment in either direction. At the frame end, the bar uses a durometer-specific polyurethane bushing installed that free floats in the traction bar utilizing dual-stage internal compression springs and UHMW polyurethane bearings. Both ends are greaseable and rebuildable. Fully assembled the RECOIL traction bars are 55'' long and mount to the vehicle using fabricated 1/4'' steel brackets.
No Thanks
Universal Recoil Traction Bar
Show more
The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.
Note:
- Required if you have selected Traction Bar Box Kit
- Bracket kits are vehicle specific
- Will Not Fit Dually Models
- Fits Short Box Models Only
No Thanks
Recoil Traction Bar Mounting Kit
Show more
Need a little extra bumper clearance to fit those new tires? This kit will move your front bumper forward 3/4".
No Thanks
Front Bumper Spacer
Show more
