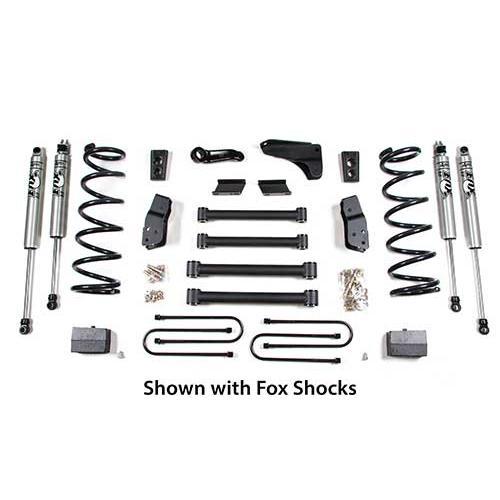

2009-2013 Cummins 6" Lift Kit (BDS607H)
Take your fourth Gen to the next level with the BDS Suspension 6" Lift Kit! Featuring 6" front Pro-Ride Coil Springs and HD tubular Upper and Lower Control arms that are also greaseable for long term performance. The lower arms are longer than stock to rotate the axle for proper alignment. Not only is the kit designed to last, but so is the finish, every bracket is electro-coated black to ensure long life.
Tire & Wheel Combinations:
- 36" x 12.50" w/ 17 x 9 and 5"
Notes:
- Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require 406
- Rear lift options will not fit dually applications.
- If driveline vibration occurs, order either transfer case drop or indexing kit available in optional accessories. NOTE: 122606 transfer case drop kit will only replace the OE bracket #52121938AA
- 102009 Rear brake lines will not fit 2012-13 models.
- Exhaust modification will be required for dual rear shock kit 12200
- Will not fit Cab and Chassis models
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS607H
6" Front Coil Springs
Show more
6" Box Kit
This Box Kit includes the following products:
- Pitman Arm
- Bolt Pack - Front
- 2 Link Relocation Brackets
- Driver & Passenger Side Sway Bar Drops
- Upper & Lower Control Arms
- Track Bar Bracket
- 2 5.5in Bump Stops- Black
- Bag Kit
- Bolt Pack - Track Bar
- Bolt Pack - Sway Bar
- 2 1.00 x .1875 x 2.60 DOM Sleeves (16mm ID)
- 2 1.00 x 5/32 x 2.60 DOM Sleeves (18mm ID)
- 4 .75 x .095 x 2.4 DOM Sleeves
- 2 .875 x .156 x 2.375 DOM Sleeves
- 6 90 Degree 1/4-28 Grease Zerks
- 2 1/4in - 28 Grease Zerks
- Loctite
- Bag Kit - Bushings
- 8 Bushings
Show more
4" Rear Block Kit - (4" Axle Tube)
This Box Kit includes the following products:
- 2 4" Blocks
- 4 9/16 x 4 x 16-1/4 Round U-Bolts
- 8 9/16 SAE Flat Washers
- 8 9/16 Fine High Nuts
- 2 Leaf Pins
Show more
4" Rear Block Kit - (3.5" Axle Tube)
This Box Kit includes the following products:
- 2 4" Blocks
- 4 9/16 x 3-1/2 x 14-1/2 Round U-bolt
- 2 Leaf Pins
- 8 9/16 SAE Flat Washers-Black
- 8 9/16 Fine High Nuts- Black
Show more
5" Lift Leaf Spring - (3.5" & 4" Axle Tube) (2x)
Show more
Important: Measure your rear axle & select the appropriate kit.
U-Bolts - (3.5"X12.5") (4x)
Select these U-Bolts if you have a 3.5" Axle Diameter.
Show more
U-Bolt - (4"X12.5") (4x)
Show more
NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
NX2 Series Dual Shocks (4x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Note:
This kit only fits vehicles equipped with a short arm lift system. This kit requires shocks in the stock location or appropriate limiting straps to avoid hanging the front axle from the dual shock cylinders. If the correct stock location shocks are not installed or limiting straps are not used.
Show more
Fox 2.0 Series Dual Shocks (4x)
Show more
Required if you have selected Dual Front Shocks
No Thanks
Dual Auxiliary Shock Mounting Bracket
Show more
NX2 Series Single | Dual Shocks
Important: These Shocks are for Single & Dual Rear, please selected the appropriate quantity.
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Note: For Dual Rear Shocks
- Will not fit 2013 models
- This system replaces the factory location shock. Order 4 shocks with this dual shock bracket system.
- Exhaust modification on diesel models will be required.
Show more
Fox 2.0 Series Single | Dual Shocks
Important: These Shocks are for Single & Dual Rear, please selected the appropriate quantity.
Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.
Note: For Dual Rear Shocks
- Will not fit 2013 models
- This system replaces the factory location shock. Order 4 shocks with this dual shock bracket system.
- Exhaust modification on diesel models will be required.
Show more
Required if you have selected Dual Rear Shocks.
No Thanks
Dual Shock Mounting Kit
Show more
IMPORTANT: Upgrading to our sway bar disconnect kit (122413) will change the installation process for this system. Installation changes are clearly outlined in our instructions.
Note:
- Works with 3-8" of lift
- Not for use with any other sway bar relocation brackets. The sway bar needs to be mounted in stock location on the frame.
- It will not work with 03-08 BDS 8" kits that have the sway bar relocation brackets at the axle or any other kit that does not have the factory axle mount bracket intact
- Inverted 'T' steering found on 08.5+ trucks is high recommended for steering-to-sway bar link clearance on 03-08 trucks. Do not vary from shock length listings. Max extended length is 25-1/4" for 3" lift, 30" extended for 8" lift
No Thanks
Sway Bar Disconnect Kit
Show more
No Thanks
Required if you have selected Dual Steering Stabilizers.
No Thanks
Dual Steering Stabilizer Bracket Kit
Show more
No Thanks
Universal Recoil Traction Bar
Show more
Standard Series Traction Bar - (3.5" Axle Diameter)
Reduce rear pinion angle change commonly referred to as axle wrap during acceleration with these BDS heavy-duty traction bars. Tubular design for good looks as well as serious axle control.
Show more
Standard Series Traction Bar - (4" Axle Diameter)
Show more
Required if you have selected the Recoil Traction Bar.
No Thanks
Recoil Traction Bar Mounting Kit - (4" Axle/SRW)
Required if you have selected Recoil Traction Bar.
Note:
- Bracket kits are vehicle specific. The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powdercoat finish.
Show more
No Thanks
Transfer Case Components Indexing Ring - (Automatic)
Note:
- Choose this option if your driveshaft has 3" or more clearance to the crossmember and you have an automatic transmission. See installation instructions for measurement details.
- 03-12 2500 Gas models will require modification to the front exhaust crossover pipe on driver's side for proper clearance
Show more
Transfer Case Components Indexing Ring - (Manual)
Note:
- Choose this option if your driveshaft has 3" or more clearance to the crossmember and you have a manual transmission. See installation instructions for measurement details.
Show more
Transfer Case Drop Kit - (Automatic)
Choose this option if your driveshaft has less than 3" of clearance to the crossmember and your truck has the factory transmission mount p/n 52121938AA. See installation instructions for measurement details.
Note:
If your driveshaft has less than 3" of clearance to the crossmember and you do not have the provided transmission mount part number then contact BDS Tech Support.
Show more
Transfer Case Drop Kit - (Manual)
Choose this option if your driveshaft has less than 3" of clearance to the crossmember and your truck has the factory transmission mount p/n 52121938AA. See installation instructions for measurement details.
Note:
If your driveshaft has less than 3" of clearance to the crossmember and you do not have the provided transmission mount part number then contact BDS Tech Support.
Show more
Features:
- Kevlar lined Stainless Steel Braided Brake Lines
- Virtually no volumetric expansion Firmer brake pedal feel with less pedal effort.
- Hose assemblies comply with D.O.T. Federal regulations (MVSS-106) Legal for street use in all 50 States.
- Teflon inner core (chemically inert) Approved for use with all brake fluids, including D.O.T. 5 Silicone.
- Resists moisture, Very flexible.
- Five-layer construction Rugged construction that resists road shock and hazards.
- Higher fitting pull-off than other D.O.T. assemblies.
- Standard SAE female fittings and ends Utilize standard brake fittings and hardware.
- PN# 102009 - Will NOT work on 2012+ trucks.
No Thanks
31" Front Brake Line
Show more
Features:
- Kevlar lined Stainless Steel Braided Brake Lines
- Virtually no volumetric expansion Firmer brake pedal feel with less pedal effort.
- Hose assemblies comply with D.O.T. Federal regulations (MVSS-106) Legal for street use in all 50 States.
- Teflon inner core (chemically inert) Approved for use with all brake fluids, including D.O.T. 5 Silicone.
- Resists moisture, Very flexible.
- Five-layer construction Rugged construction that resists road shock and hazards.
- Higher fitting pull-off than other D.O.T. assemblies.
- Standard SAE female fittings and ends Utilize standard brake fittings and hardware.
- PN# 102009 - Will NOT work on 2012+ trucks.
No Thanks
27" Rear Brake Line
Show more
No Thanks
Carrier Bearing Drop Kit
Show more
