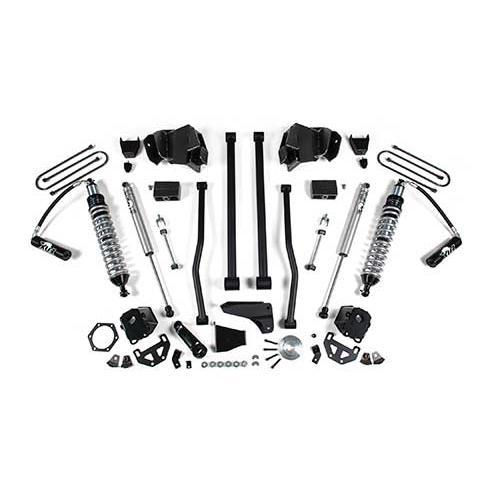

2009-2013 Cummins 6" Coilover Long Arm Lift Kit (BDS629F)
Combining the control of a long arm lift kit with the dampening and performance of a Fox 2.5 Coilovers makes this one of the greatest lift kit designs on the market! These systems were designed specifically to combine the high-performance characteristics of the Fox 2.5 Coilovers and BDS long arm suspension systems to create the ultimate 6" suspension system. In order to install the Coilovers. This new system not only creates a sturdy mount at the frame but also includes weld in reinforcements at the axle something other "bolt-on" mounting kits on the market does not address.
Tire & Wheel Combinations:
- 37" x 12.50" w/ 17 x 9 and 5"
Notes:
- Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require 406
- Rear lift options will not fit dually applications.
- If driveline vibration occurs, order either transfer case drop or indexing kit available in optional accessories. NOTE: 122606 transfer case drop kit will only replace the OE bracket #52121938AA
- 102009 Rear brake lines will not fit 2012-13 models.
- Exhaust modification will be required for dual rear shock kit 12200
- Will not fit Cab and Chassis models
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS629F
Fox 2.5 Remote Reservoir Coilovers
When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length; designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.
Show more
Coilover Mounting Kit
This Box Kit includes the following products:
- 2 Coilover Upper Mounts
- Coilover Drill / Cut Template
- 2 Coilover Lower Supports
- 2 Coilover Lower Supports w/ Nut
- 2 Reservoir MountS
- Loc-tite
- Bolt pack - Coilover Mount
Show more
6" Long Arm Box Kit
This Box Kit includes the following products:
- Pitman Arm
- 2 Bolt Packs
- Track Bar Bracket
- Sway Bar Link
- 2 Bump Stop Brackets
- 2 Urethane Bump Stops
- Driver & Passenger Side Brakeline Adaptor
- 2 Steering Stops - Weld On
- 2 Sway Bar Link U-Brackets
- 2 5/8” ID Hourglass Bushings
- 2 3/4” ID Wide Hourglass Bushings
- 2 .625 x .109 x 1.375 Sleeves
- 2 .750 x .090 x 1.575 Sleeves
- Bolt Pack - Sway Bar Hardware
- Bolt Pack - Misc. Hardware
- Bolt Pack - Bumper Spacer
- Rear Brakeline Bracket
Show more
Control Arm Box Kit
This Box Kit includes the following products:
- Driver & Passenger Side Upper Control Arms
- 2 Lower Control Arms
- 8 UCA Bushings - 3/4” ID
- 4 LCA Bushings - Axle
- 4 LCA Bushings - Frame
- 4 UCA Sleeves .750 x .095 x 2.33
- 2 LCA Sleeves 1.00 x .1875 x 2.60
- 2 LCA Sleeves 1.00 x 5/32 x 2.60 2010+ only (18mm ID)
- 2 LCA Sleeves 1.00 x .120 x 3.25
- 8 90 Degree Grease Zerks
Show more
Control Arm Mounting Kit
This Box Kit includes the following products:
- Driver & Passenger Side Long Arm Bracket
- Bolt Pack
Show more
4" Rear Block Kit - (4" Axle Tube)
Show more
5" Leaf Spring - (4" Axle Tube) (2x)
BDS Glide-Ride leaf springs will reduce axle wrap and create a more controlled and stable feel when towing. These springs are covered by the BDS No Fine Print Warranty. The actual leaf spring may not be exactly as shown in the photo. Includes OE-style bushings installed.
Show more
U-Bolts - (4"X12.5") (4x)
Show more
No Thanks
Required if you have selected Dual Steering Stabilizers.
No Thanks
Dual Steering Stabilizer Bracket Kit
Show more
Notes:
- Works with 3-8" of lift
- Not for use with any other sway bar relocation brackets. The sway bar needs to be mounted in stock location on the frame.
- It will not work with 03-08 BDS 8" kits that have the sway bar relocation brackets at the axle or any other kit that does not have the factory axle mount bracket intact
- Inverted 'T' steering found on 08.5+ trucks is high recommended for steering-to-sway bar link clearance on 03-08 trucks. Do not vary from shock length listings. Max extended length is 25-1/4" for 3" lift, 30" extended for 8" lift
No Thanks
Sway Bar Disconnect Kit
Show more
No Thanks
Universal Recoil Traction Bar
Show more
Standard Series Traction Bar - (4" Axle Tube)
Reduce rear pinion angle change commonly referred to as axle wrap during acceleration with these BDS heavy-duty traction bars. Tubular design for good looks as well as serious axle control.
Show more
Required if you have selected the Recoil Traction Bar
Note:
- Bracket kits are vehicle specific. The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.
No Thanks
Recoil Traction Bar Mounting Kit - (4" Axle/ SRW)
Show more
No Thanks
Carrier Bearing Drop Kit
Show more
