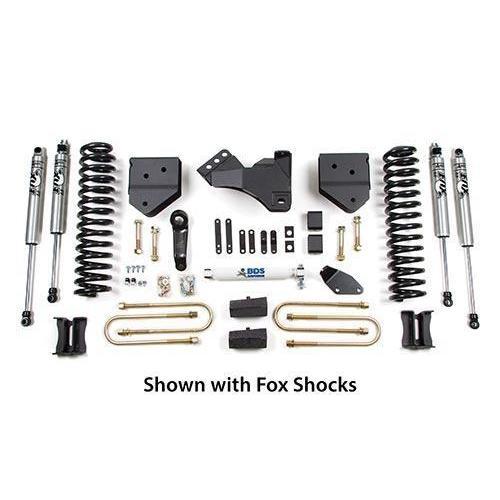

2005-2007 Powerstroke 4" BDS Lift Kit (BDS343H)
The 6.0L Powerstroke in your Super Duty is a powerhouse that deserves the stance that can backup that engine! In comes the BDS Suspension 6" Suspension Lift Kit! This kit is centered around two Pro-Ride Coil Springs; everything included in this kit is to help steering angle correction, center your axle and retain stock driving characteristics.
Tire & Wheel Combinations:
- 35" x 12.50" w/ 17 x 9 and 4.5"
- 35" x 12.50" w/ 18 x 9 and 4.5"
- 35" x 12.50" w/ 20 x 9 and 4.5"
Notes:
- These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering.
- If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS343H
4" Front Coil Springs
Show more
4" Front Box Kit
This Box Kit includes the following products:
- 2 Radius Arm Drop Brackets
- Track Bar Bracket
- 2 Cam Washer
- 2 Sway Bar Drop Brackets
- 2 Bump Stop Spacers
- 2 Brake Line Brackets
- Pitman Arm
- 2 ABS Line Bracket s
- Stabilizer Bracket
- Loctite
- 3 Zip Ties
- 8 Bolt Packs
Show more
4" Rear Block Kit w/o Top Overload
Show more
4" Rear Block Kit w/ Top Overload
Show more
6-8" Lift Leaf Spring (2x)
Show more
Required if you have selected full Leaf Spring replacements.
U-Bolts - (3-5/8"X10") (4x)
Show more
NX2 Series Shocks (2x)
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
Fox 2.0 Series Shocks (2x)
Show more
NX2 Series Single Steering Stabilizer
Show more
Required if you have selected Dual Steering Stabilizers.
BDS RECOIL traction bars are built to the highest standards for the ultimate performance on and off-road. The bars are fabricated from 2'' OD x 3/16'' wall steel tubing with a threaded bung welded in toward the axle and a CNC machined end at the frame. The axle mount uses the tried and true BDS large forged flex end and jam nut to take whatever abuse you throw at it. BDS forged flex ends use a forged housing with a large 1-1/4'' -12 threaded shank, single-sided snap ring, and 1-piece flex ball for up to 15-degrees of misalignment in either direction. At the frame end, the bar uses a durometer-specific polyurethane bushing installed that free floats in the traction bar utilizing dual-stage internal compression springs and UHMW polyurethane bearings. Both ends are greaseable and rebuildable. Fully assembled the RECOIL traction bars are 55'' long and mount to the vehicle using fabricated 1/4'' steel brackets.
No Thanks
Universal Recoil Traction Bar
Show more
The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.
Note:
- Required if you have selected Traction Bar Box Kit
- Bracket kits are vehicle specific
- Will Not Fit Dually Models
- Fits Short Box Models Only
No Thanks
Recoil Traction Bar Mounting Kit
Show more
These shims are designed to improve rear driveline angle on trucks equipped with a 2-piece rear driveshaft to eliminate any potential driveline vibrations. Not needed on trucks equipped with a 1-piece rear driveshaft.
No Thanks
Driveshaft Alignment Kit
Show more
This heavy-duty adjustable track bar mimics the shape of the factory track bar. The bar mounts in the factory locations or works with any aftermarket relocation bracket that was designed for use with the stock track bar. The bar is adjustable via a central turn-buckle. This means the bar length can be adjusted while still mounted in the vehicle. The turn-buckle locks with pinch bolts and not jam nuts that can sometimes work free. The bar itself is made from 1-1/2" solid steel bar stock that is precision machined, formed, and welded. Threads are massive 1-3/8"-12 for superior strength. The bar ends are fully welded and gusseted for added strength. The frame end uses high-durometer polyurethane bushings that are greaseable while the axle end utilizes the factory ball joint mount.
No Thanks
Adjustable Front Track Bar
Show more
