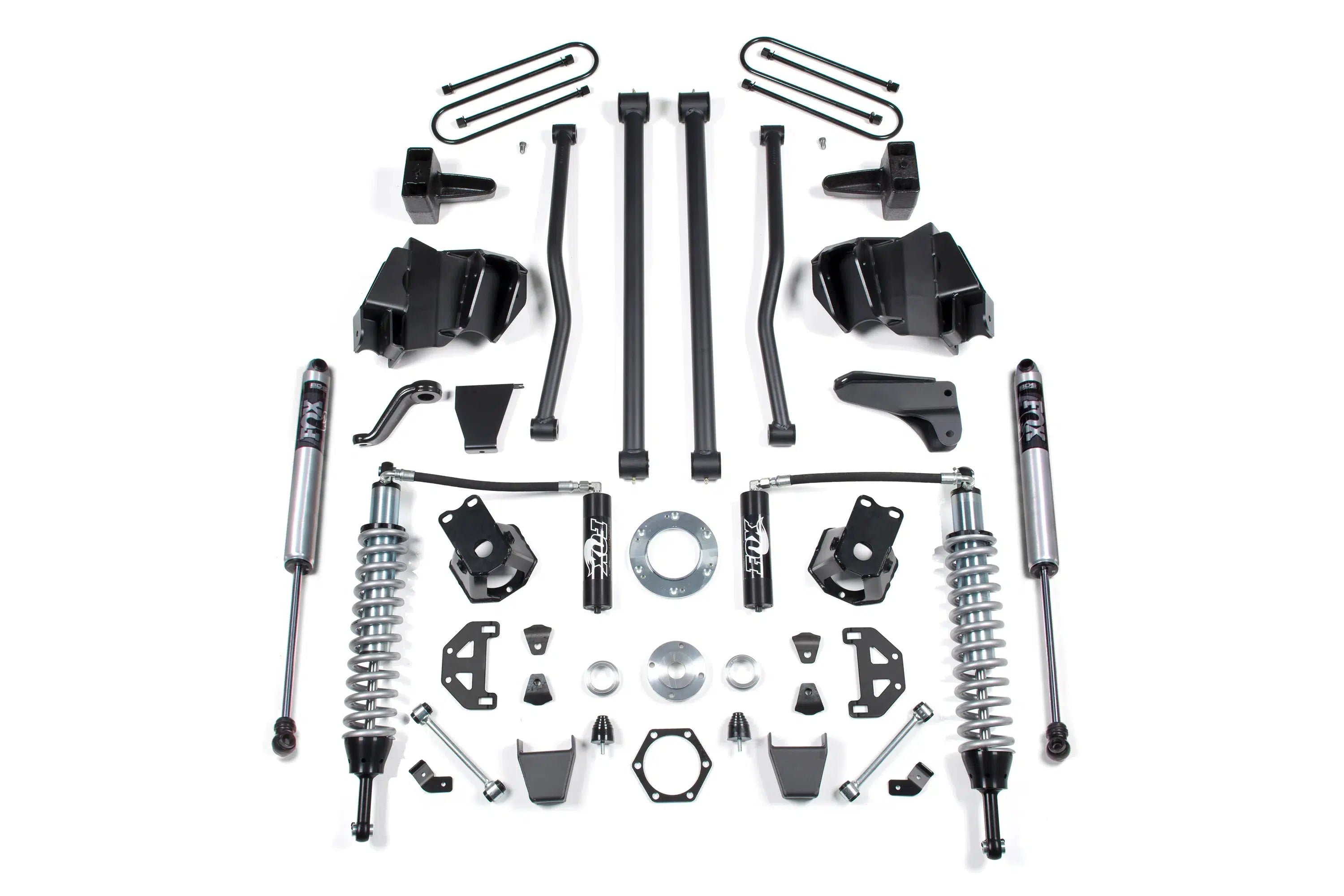

2003-2007 Cummins 6" Coilover Lift Kit (BDS647F)
Completely revamp your Cummins front suspension into this 6" upgraded, up-rated Coilover lift system utilizing high-performance Fox 2.5 Coilovers and BDS long arm suspension systems to create the ultimate suspension system that will give you a 6" lift right out the box. Preset to achieve an amazing ride on and off-road, this kit has a mounting system that bolts directly to the factory coil mounts with only minor trimming/drilling required. This new system not only creates a sturdy mount at the frame but also includes weld in reinforcements at the axle - something other "bolt-on" mounting kits on the market does not address.
Tire & Wheel Combinations:
- 37" x 12.50" w/ 17 x 9 and 5"
Notes:
- This truck is available with two different axle sizes, 3.5" or 4". Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require u-bolt 406
- Will not fit dually applications.
- Although unusual, if driveline vibration occurs, order a transfer case drop kit available in options or t-case index kit. #122801 is included in 8" kits, substitute #122802 for manual transmission.
- Exhaust modification will be required for dual rear shock kit 122009 on 6.7L Diesel models.
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS647F
Fox 2.5 Remote Reservoir Coilovers
When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length; designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.
Show more
Coilover Mounting Kit
This Box Kit includes the following products:
- 2 Coilover Upper Mount
- Coilover Drill / Cut Template
- 2 Coilover Lower Support
- 2 Coilover Lower Support w/ Nut
- 2 Reservoir Mount
- Loctite
- Bolt Pack - Coilover Mount
Show more
6" Long Arm Box Kit
This Box Kit includes the following products:
- Pitman Arm
- Track Bar Bracket
- Bolt Pack
- Driver & Passenger Side Brakeline Adaptor
- 2 Bump Stop Bracket
- 2 Urethane Bump Stops
- Driver & Passenger Sway Bar Mounts
- 2 Steering Stops - Weld Ons
- 2 Sway Bar Link U-Brackets
- 2 5/8” ID Hourglass Bushings
- 2 3/4” ID Wide Hourglass Bushings
- 2 .625 x .109 x 1.375 Sleeves
- 2 .750 x .090 x 1.575 Sleeves
- Bolt Pack - Sway Bar Hardware
- Bolt Pack - Misc. Hardware
- Bolt Pack - Bumper Spacer
- Front Driveshaft Spacer
- Bolt Pack - Driveshaft
Show more
Control Arm Box Kit
This Box Kit includes the following products:
- 4 UCA Sleeve .750 x .095 x 2.33
- 2 LCA Sleeve 1.00 x .1875 x 2.60
- 2 LCA Sleeve 1.00 x .120 x 3.25
- 8 90 Degree Grease Zerk
- Driver & Passenger Side Upper Control Arm
- 2 Lower Control Arm
- 8 UCA Bushing - 3/4” ID
- 4 LCA Bushing - Axle
- 4 LCA Bushing - Frame
Show more
Control Arm Mounting Kit
This Box Kit includes the following products:
- Driver & Passenger Side Long Arm Brackets
- Bolt Pack
Show more
4" Rear Block Kit - (4" Axle Tube)
Show more
5" Lift Leaf Spring - (4" Axle Tube) (2x)
Show more
Required if you have selected full leaf spring replacements.
No Thanks
U-Bolts - (4"X12.5") (4x)
Show more
No Thanks
Required if you have selected Dual Steering Stabilizers.
No Thanks
Dual Steering Stabilizer Bracket Kit - (T-Style Linkage)
Show more
IMPORTANT: Upgrading to our sway bar disconnect kit (122413) will change the installation process for this system. Installation changes are clearly outlined in our instructions.
Notes:
- Works with 3-8" of lift
- Not for use with any other sway bar relocation brackets. The sway bar needs to be mounted in stock location on the frame.
- Will not work with 03-08 BDS 8" kits that have the sway bar relocation brackets at the axle or any other kit that does not have the factory axle mount bracket intact
- Inverted 'T' steering found on 08.5+ trucks is high recommended for steering-to-sway bar link clearance on 03-08 trucks. Do not vary from shock length listings. Max extended length is 25-1/4" for 3" lift, 30" extended for 8" lift.
No Thanks

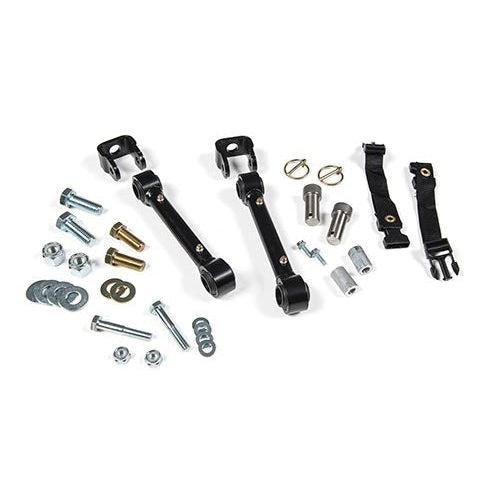

Sway Bar Disconnect Kit
Show more
No Thanks
Universal Recoil Traction Bar
Show more
Standard Series Traction Bar - (3.5" Axle)
Reduce rear pinion angle change commonly referred to as axle wrap during acceleration with these BDS heavy-duty traction bars. Tubular design for good looks as well as serious axle control.
Show more
Standard Series Traction Bar - (4" Axle)
Show more
Required if you have selected the Recoil Traction Bar.
No Thanks
Recoil Traction Bar Mounting Kit - (4" Axle/SRW)
Bracket kits are vehicle specific. The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.
Show more
No Thanks

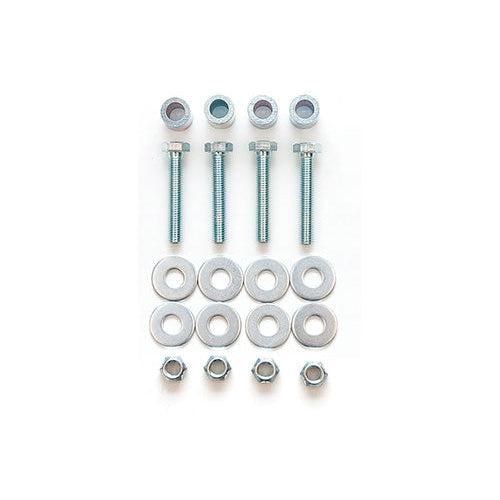

Carrier Bearing Drop Kit
Show more
