2023-2024 Powerstroke 5" Radius Arm Lift Kit (BDS2203H)

Click here to Customize this Kit

Fits

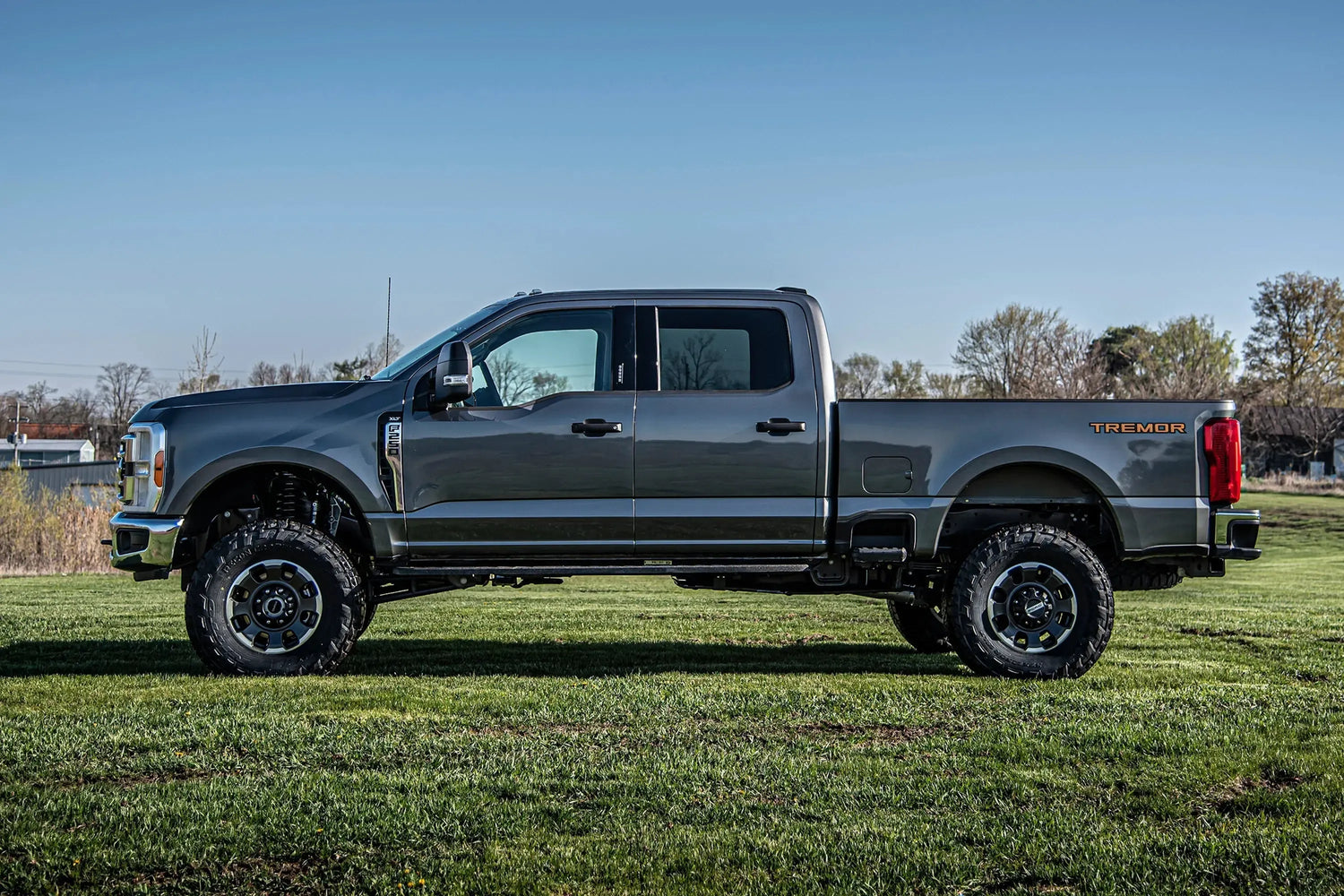

Elevate the drive of your '23-24 Ford Super Duty diesel truck with this 5-inch radius arm lift kit from BDS Suspension. Enhance stance, performance, and capability with this all-inclusive kit, giving your truck the perfect setup and room for up to 37" tires.

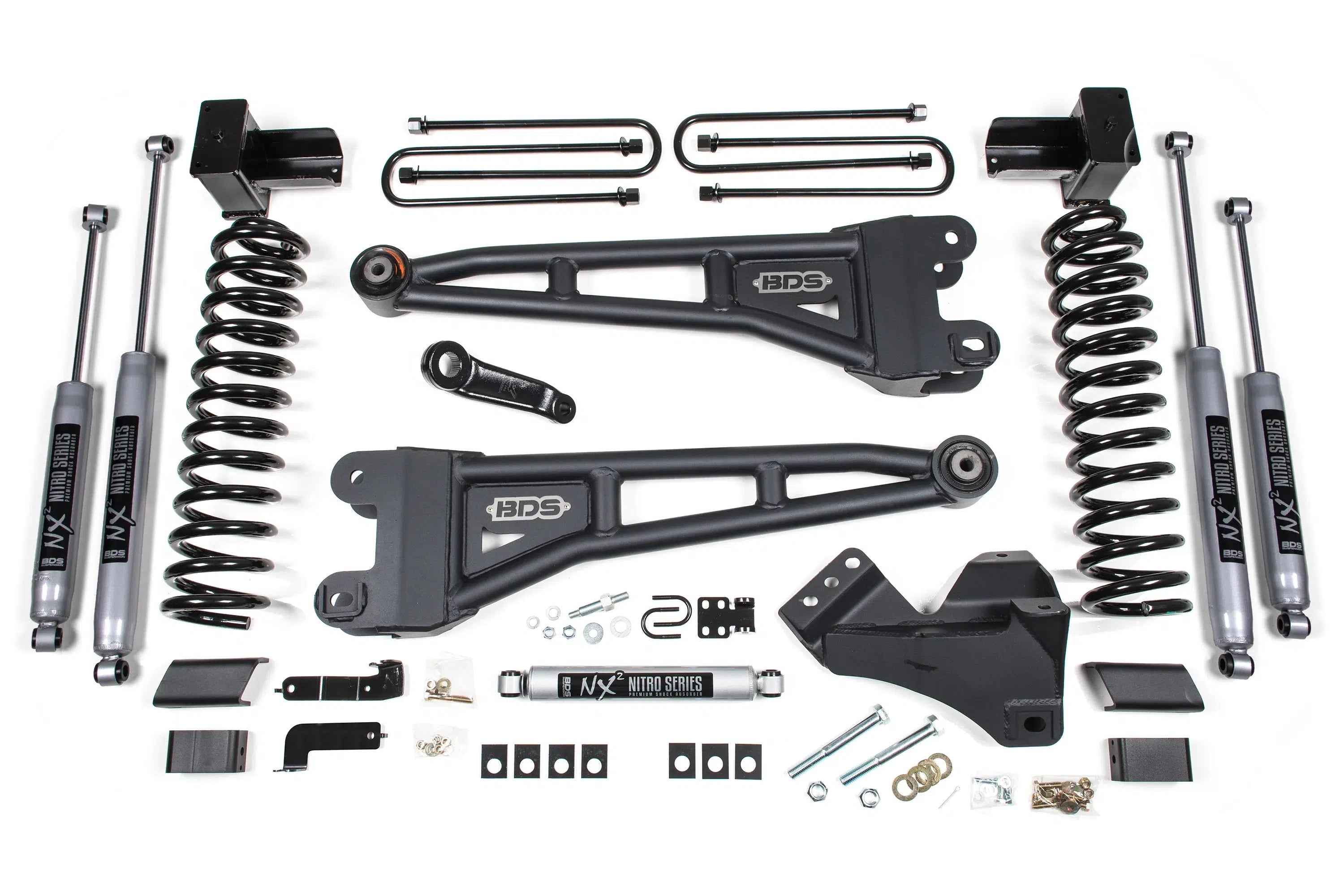

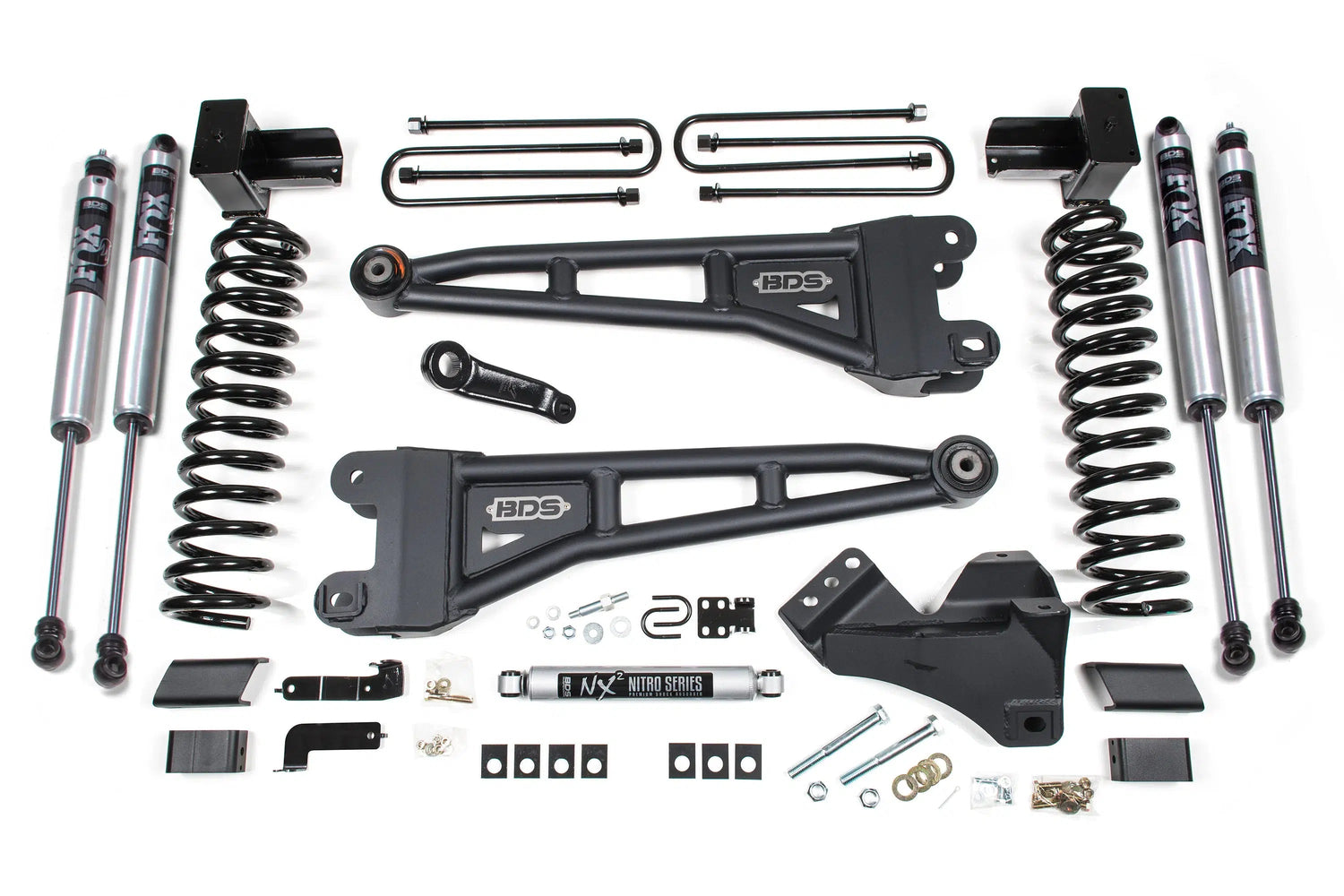

Up front the lift kit comes with diesel-focused Pro-Ride coil springs, tough replacement radius arms, a forged drop pitman arm and track bar bracket for steering, relocated sway bar, brake line holders, and precisely tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Part Number: BDS2203H

• Front Lift Height : 5"

• Rear Lift Height : 3"
• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear

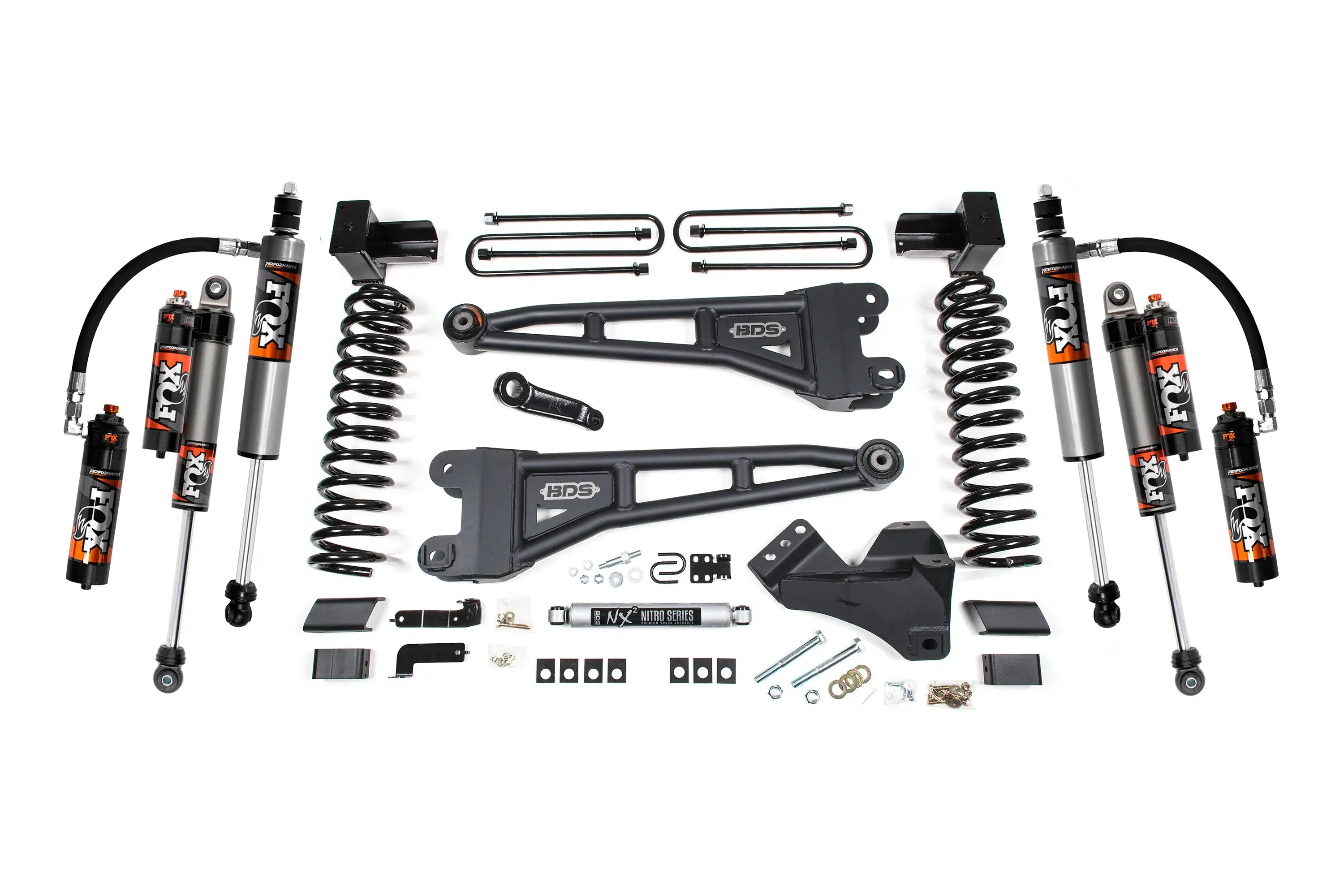

• NX2 Nitro shocks or FOX 2.0 Performance Series with vehicle-specific valving for better control


Tires & Wheels:

• (Trimming may be required)
• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

• Guide 1 Click Here
• Guide 2 Click Here

• Required: Torque Wrench, Die Grinder, Pitman Arm Puller

• Vehicles with radius arm mounted ride height sensors will require BDS123303.
• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

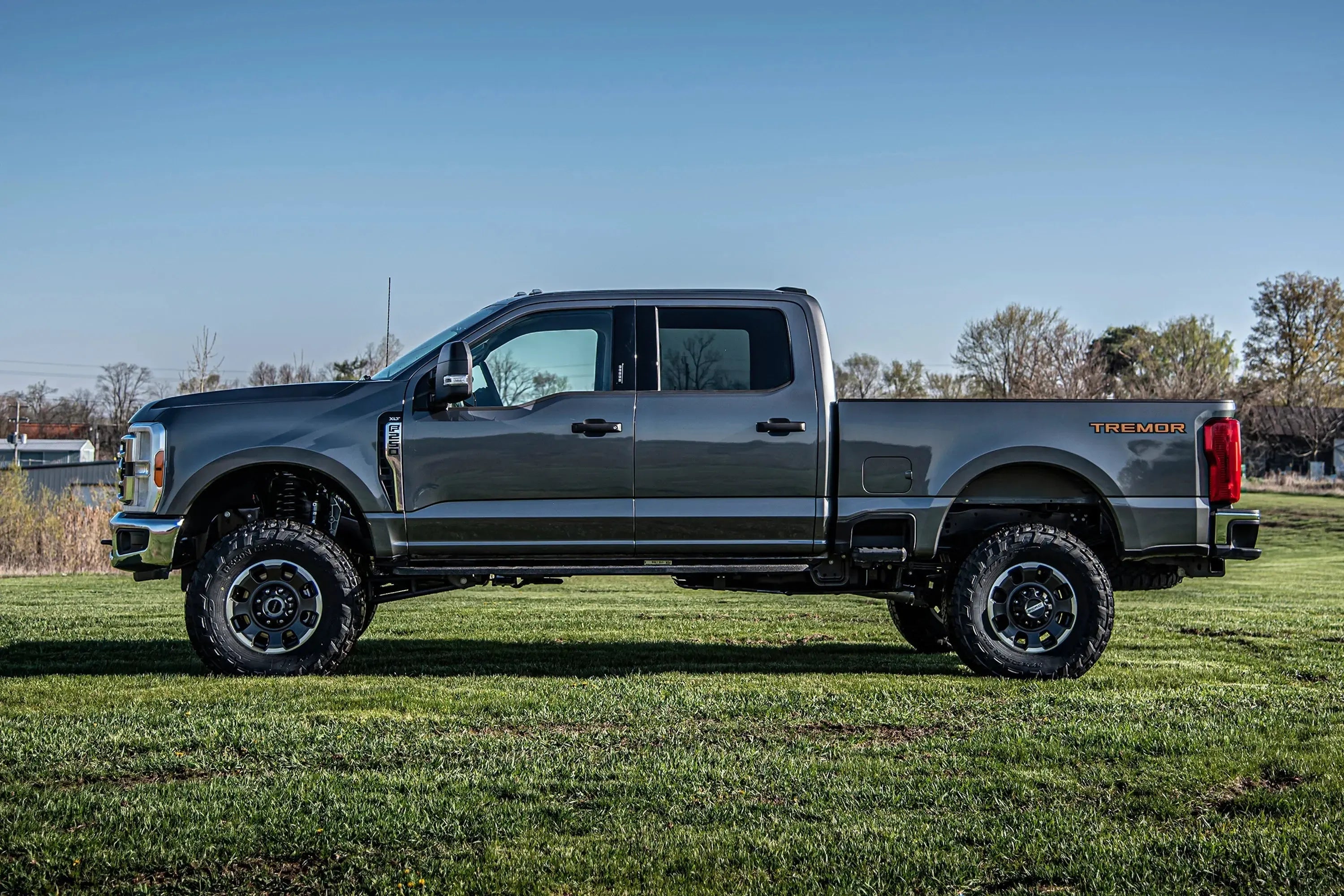

• Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Trucks without top mounted overload springs will require (4) UBT4028.
• Vehicles with leaf spring ride height sensors must select the rear block option.

Rear Lift Option

Block Kit

• Included in the base system.
• Made of fabricated steel for high strength.
• Designed to provide correct pinion angles.

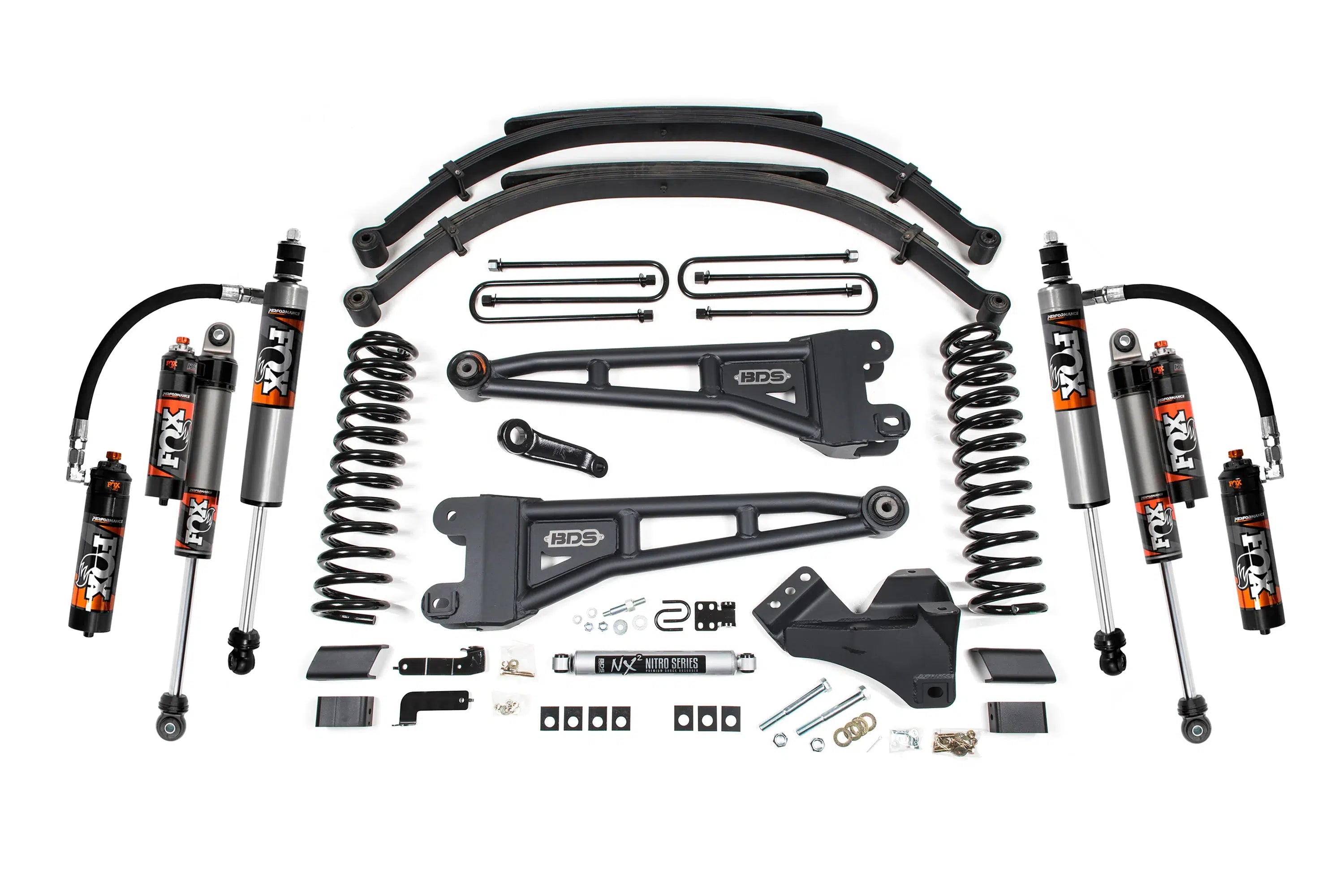

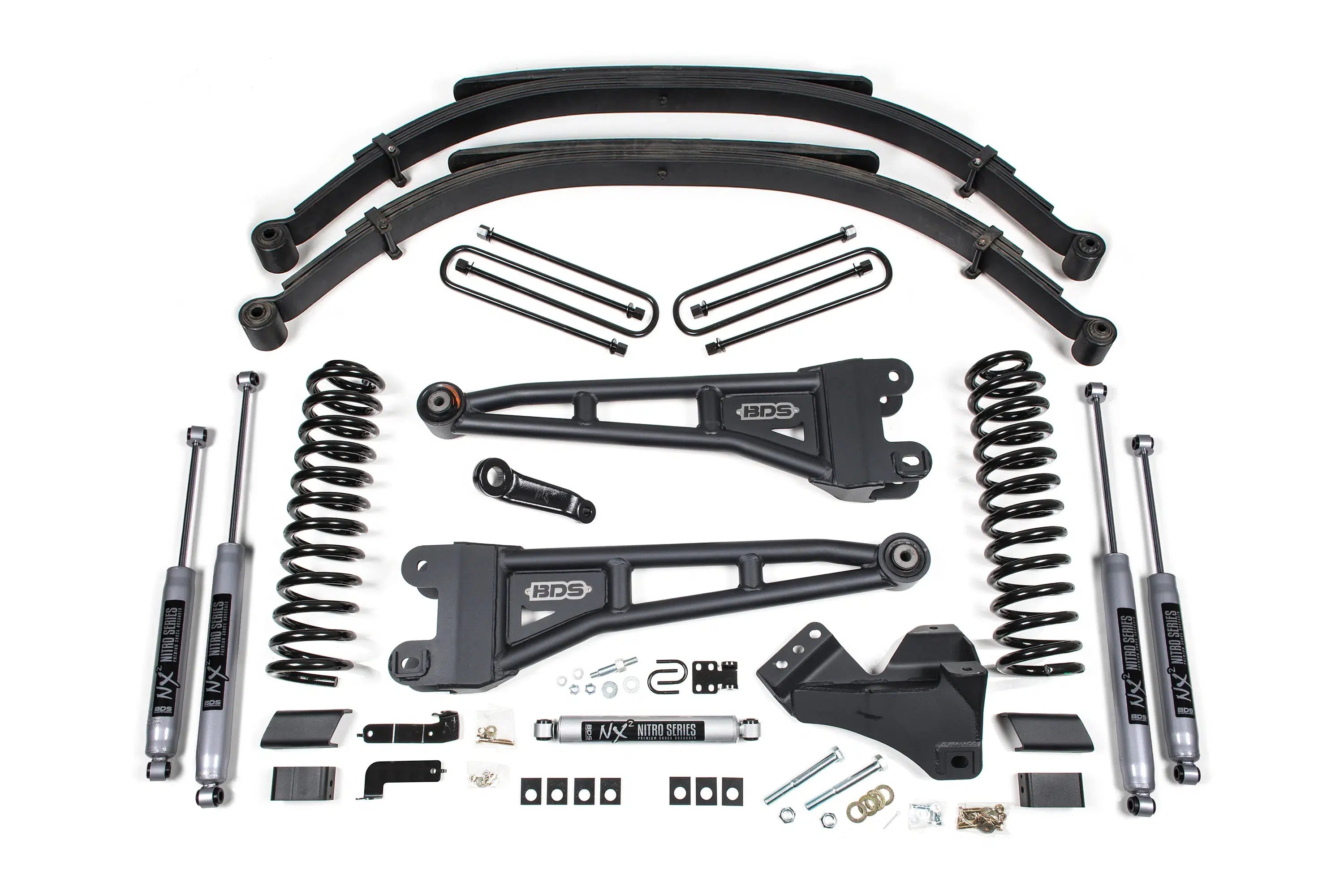

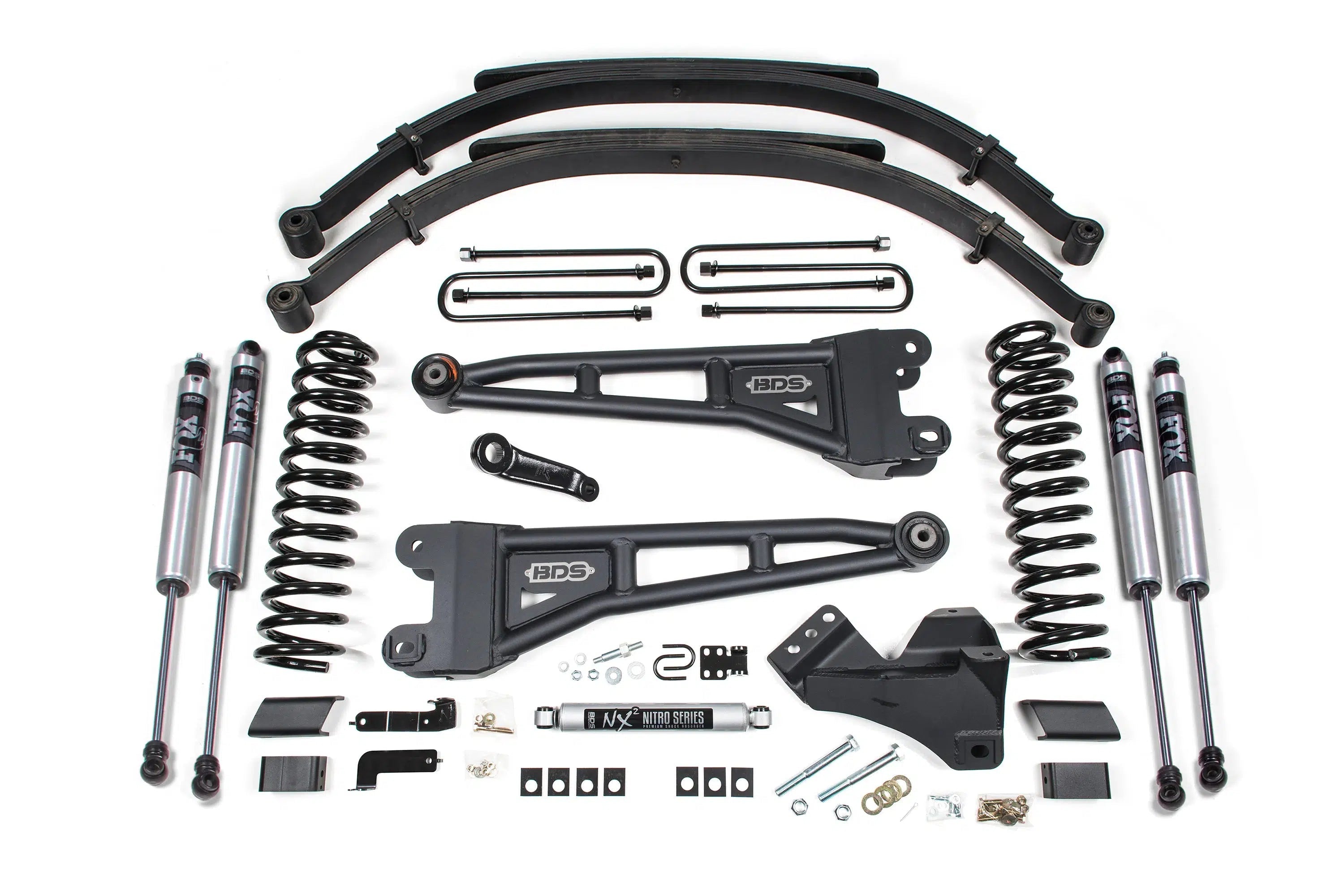

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.
