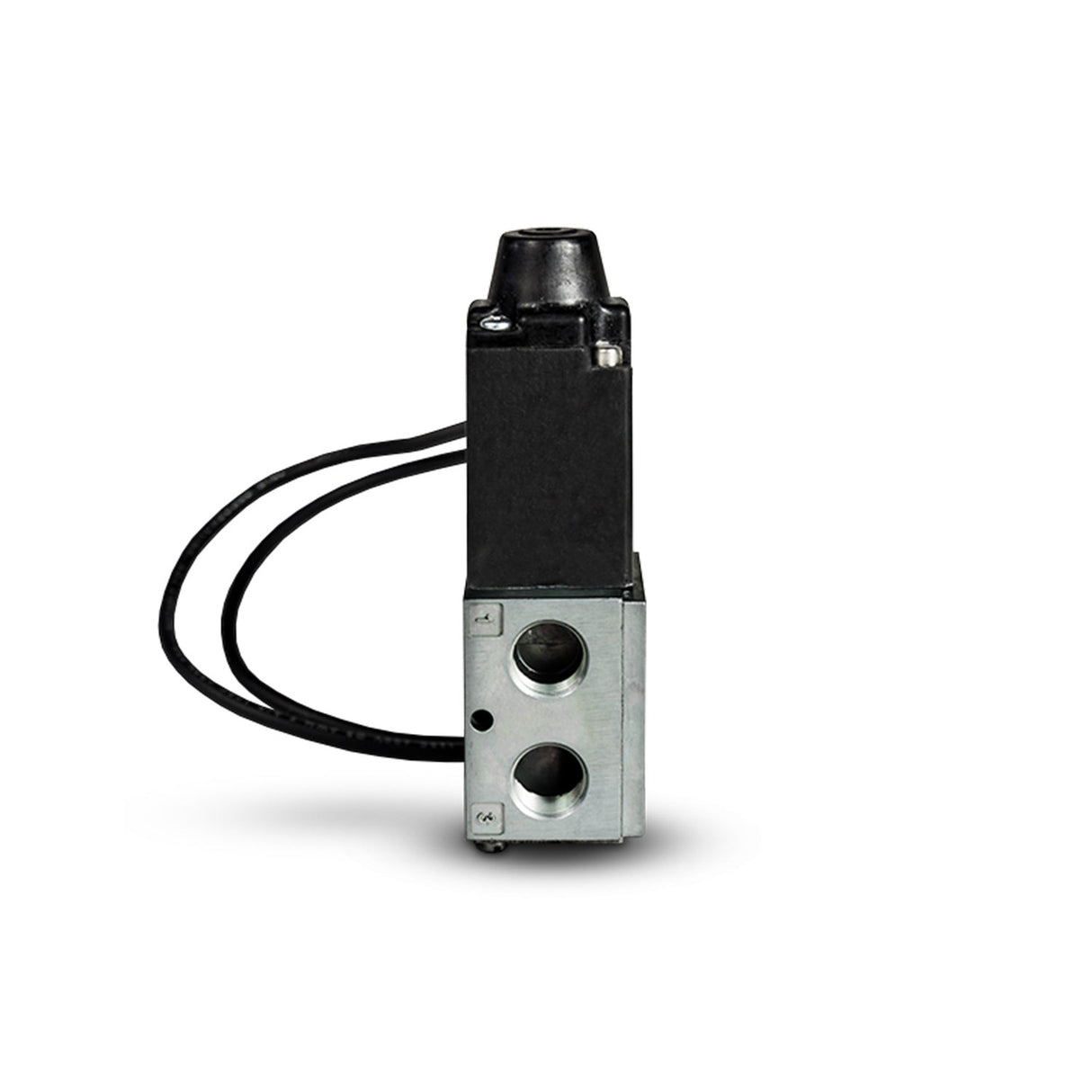

Universal LD Vacuum Solenoid (C11829)

Fits: Universal

For anything to do with hydraulic or pneumatic solenoids, Pacbrake is your go-to, through their rigorous testing, these solenoids are guaranteed to meet any specialty requirement or mounting location.

Part Number: C11829

• 4-Way, 2-Position Light Duty Solenoid
• Single Direct Solenoid
• Spring Return with Flush Non-Locking Override
• Line Mounted
• Lubricant Free Assembly
• Loctite Applied to Fasteners

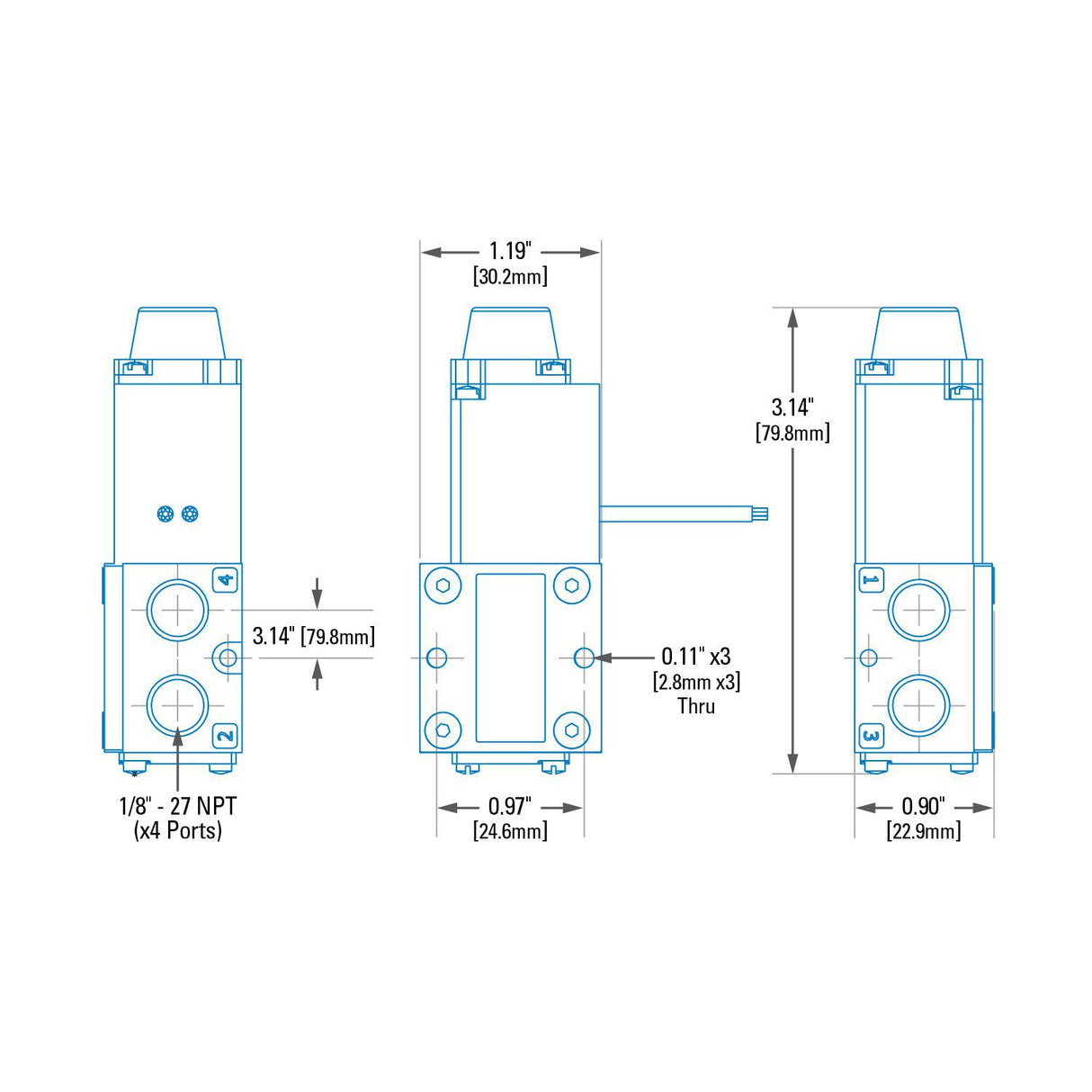

• 4 x 1/8" - 27 NPT Ports

• 15" [457 mm] long 18 AWG pigtail
• Designed to meet NEMA 4/IP65

Specs:

• 1/8" - 27 NPT — 4 Ports
• Voltage Range: 12 VDC
• Coil Resistance: 25 Ω
• Energize Time: 0.012 ms
• De-energize Time: 0.006 sec
