Description
Fits
APPLICATIONS |
Universal (cars/trucks/motorcycles) |
DIRECT FITMENT |
H4, H7 Fog Lights (little/no mods req'd) |
MODIFICATION REQUIRED |
H1,H11,H13,9005,9006,9007 housings |
BULBS |
H1 HID Only |
SHROUDS |
All Styles (w/ Centric Rings) |
CENTRIC RINGS |
Shrouds Require Mini H1 Model |

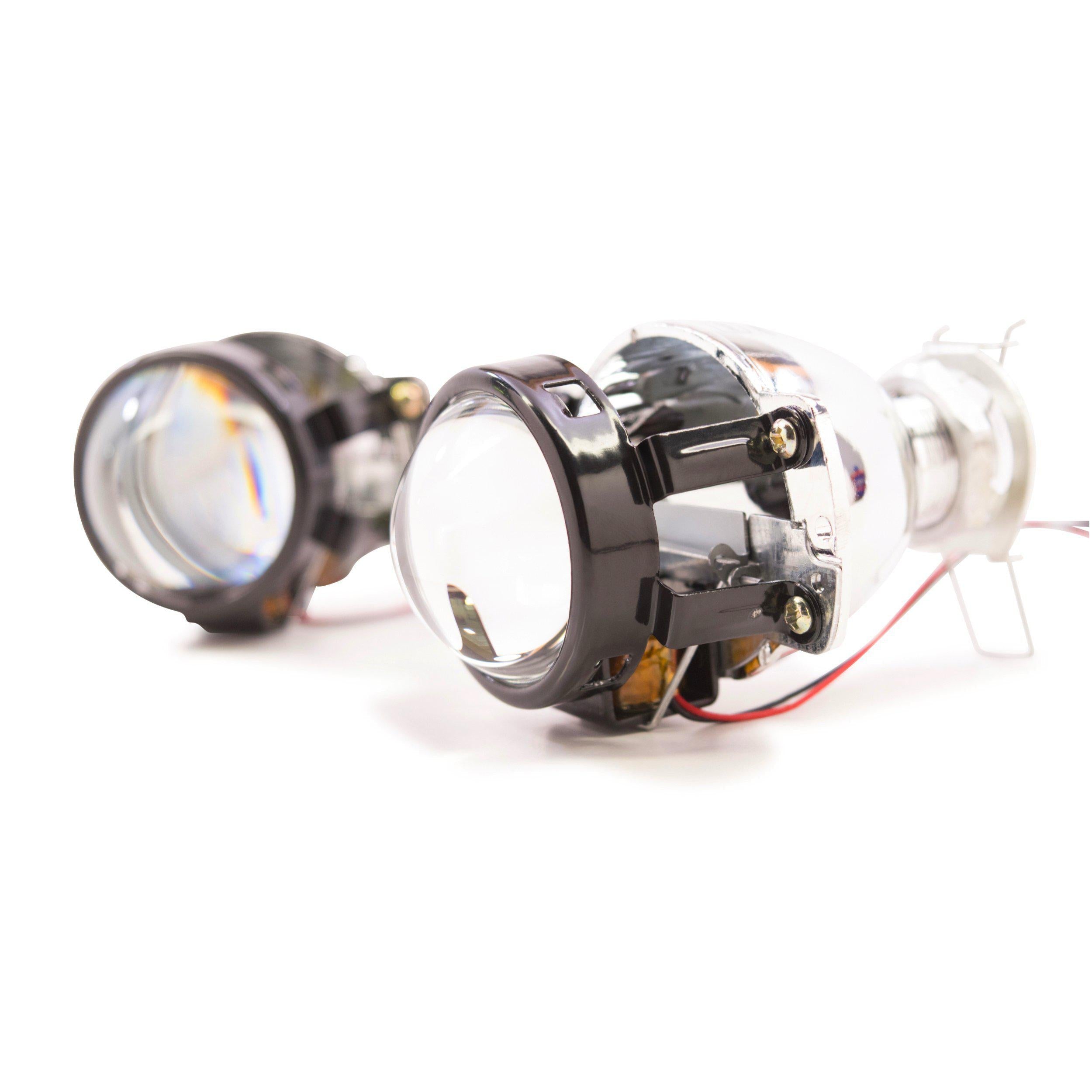

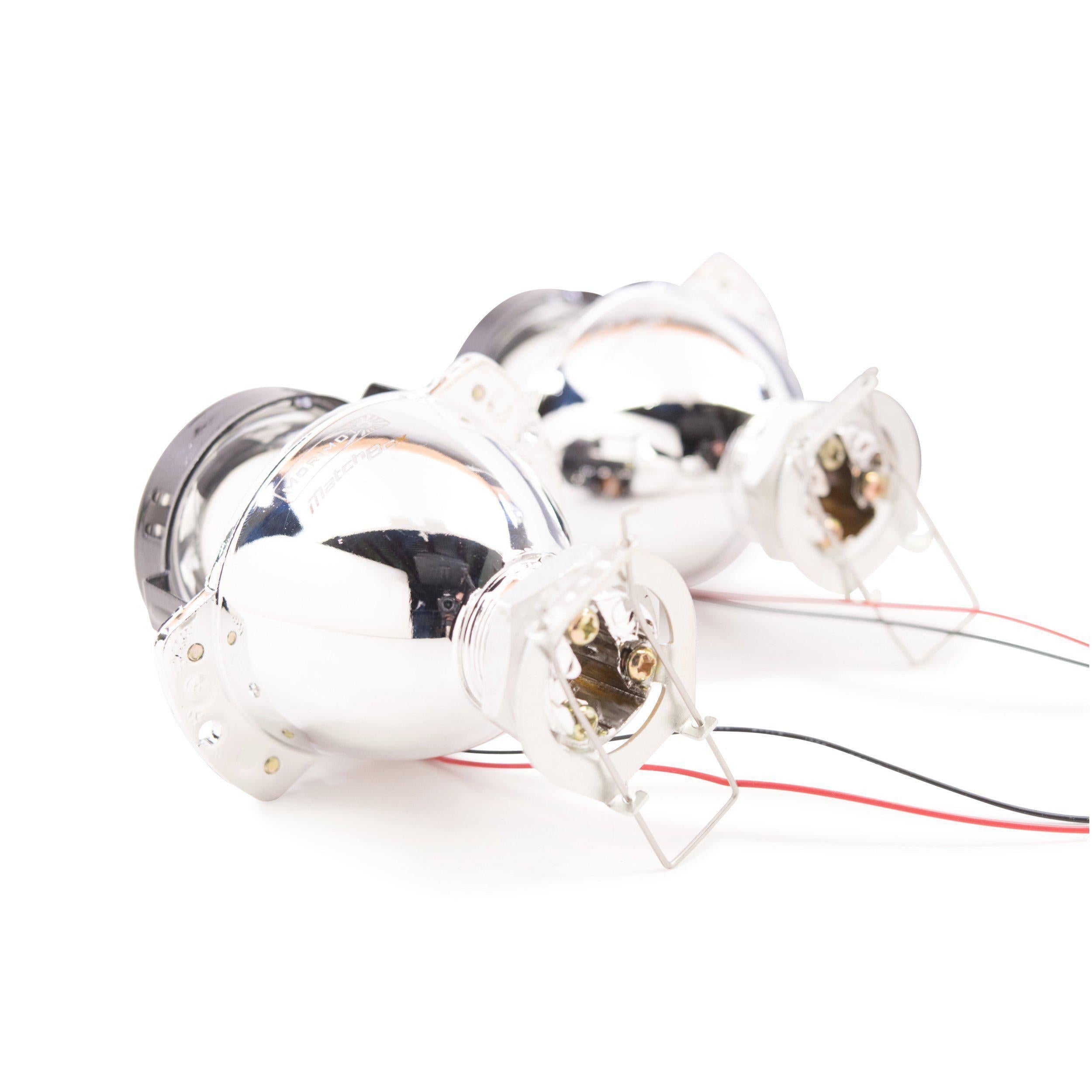

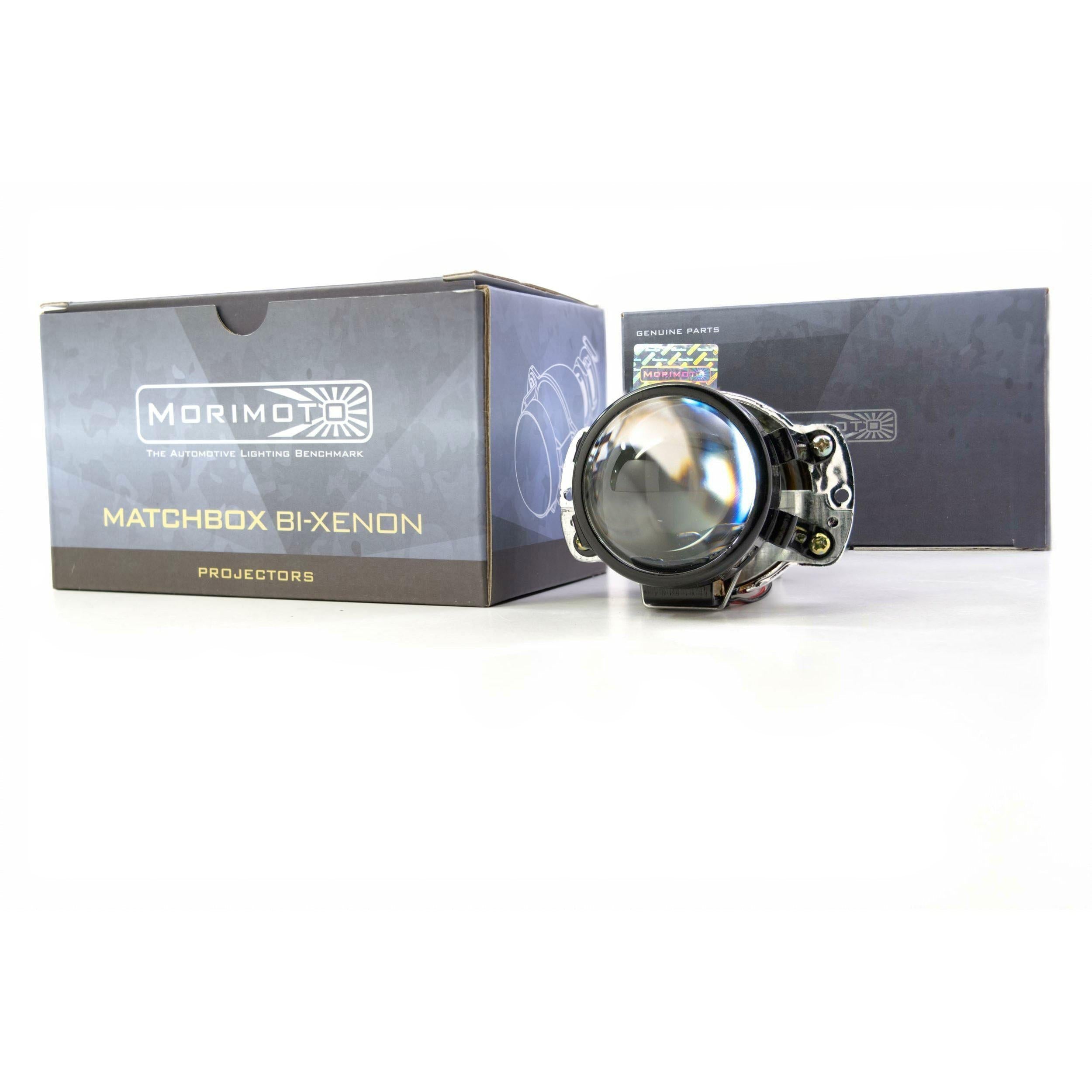

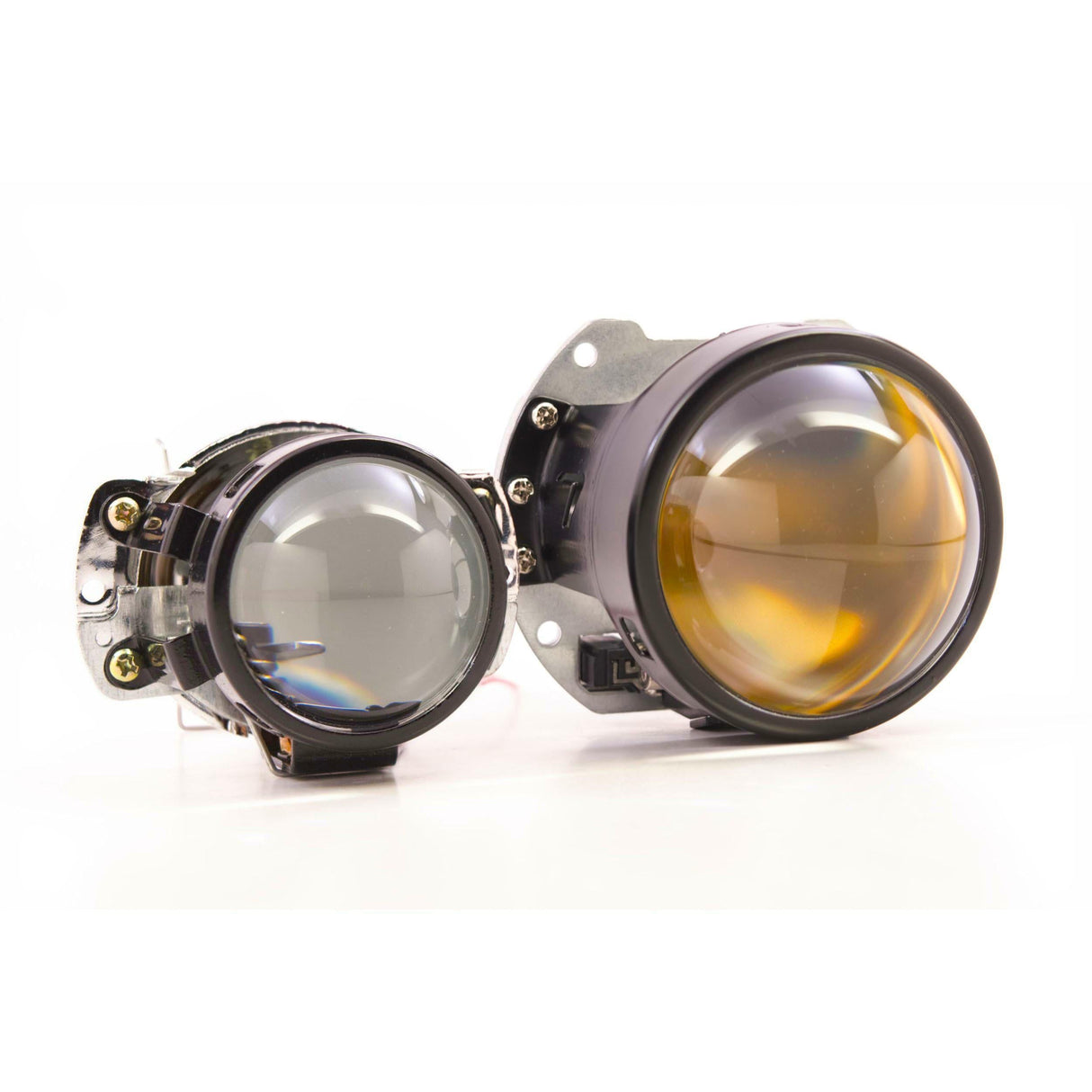

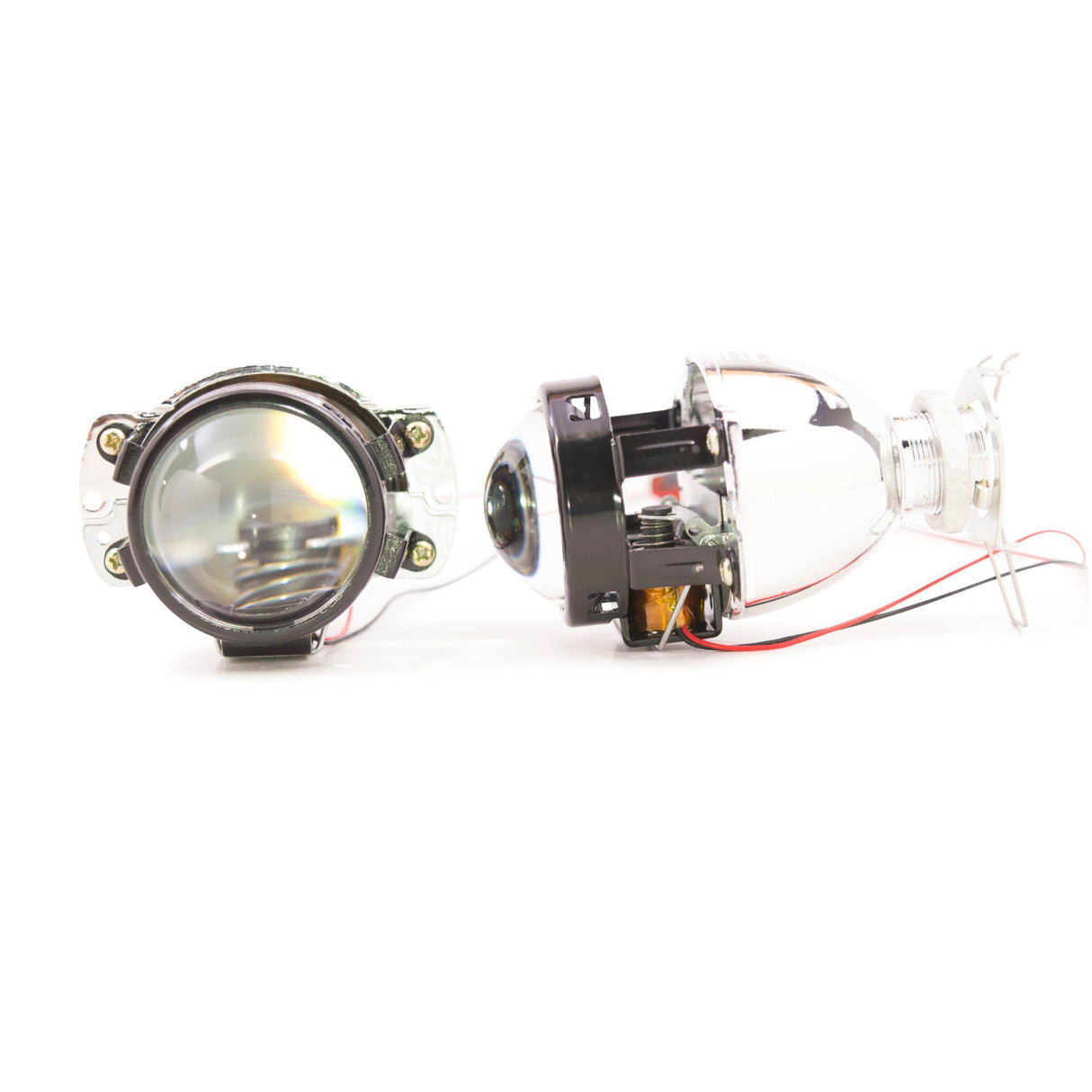

The Morimoto Matchbox 2.0 Bi-xenon Projector is the world's smallest Bi-Xenon projector. With the threaded mounted shaft and extremely compact size, these go where no projector has gone before...literally!
With a pre-installed clear lens and their flat cutoff shields, the Morimoto Matchbox 2.0's light output is on par with any other dedicated fog light projector that's this small; Plenty of foreground light and a bonus high beam function make them an excellent addition to any existing retrofit.
Part Number: PR130
Features
FUNCTIONALITY |
Bi-xenon |
TRAFFIC PATTERNS |
LHD Only |
COMPATIBLE WITH |
35W HID Systems Only |
HEIGHT |
55mm |
WIDTH |
75mm |
DEPTH |
110mm |
LENS DIAMETER |
1.8 inches |
MOUNTING SHAFT |
22mm Diameter |
HOUSING DEPTH |
80mm Minimum |
STANDARD LENS |
100% clarity 'Kuria Optic' glass |
What's Included
Projector |
1x Morimoto Matchbox 2.0 Bi-Xenon |
HARDWARE PACKS |
Lock Rings, Bulb Clips, etc. |
INPUTS |

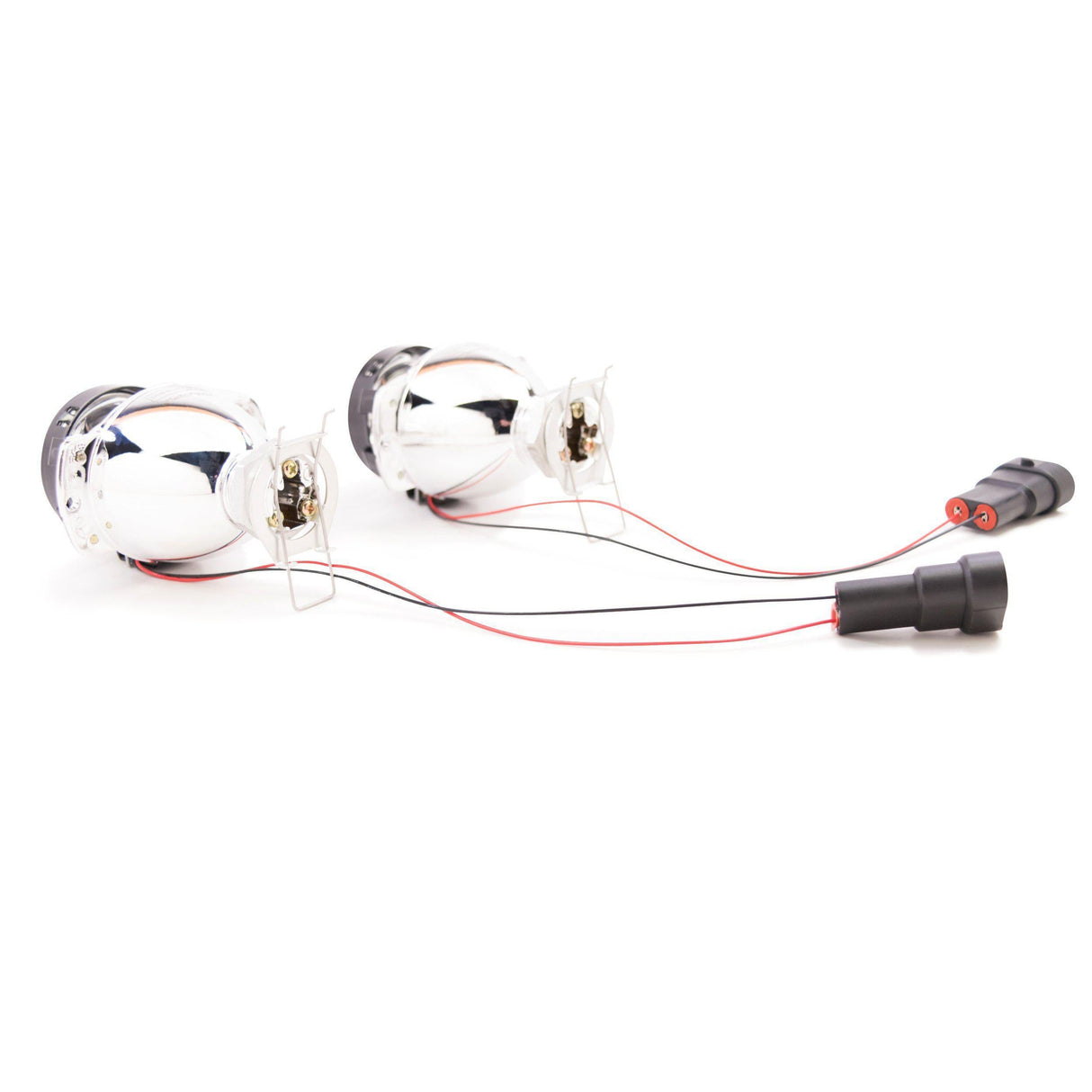

1x 9006 Male Pigtails |
SHROUDS |
1x MicroGatling |
WARRANTY |
3 Years |
Installation
- Just remove the fog light lens, insert the threaded mounting shaft through the pre-existing hole in the back of the reflector, hand-tighten, check rotation, tighten, and re-seal fog lights. Minimal cutting will probably be involved, but you'll find the results well worth it!
