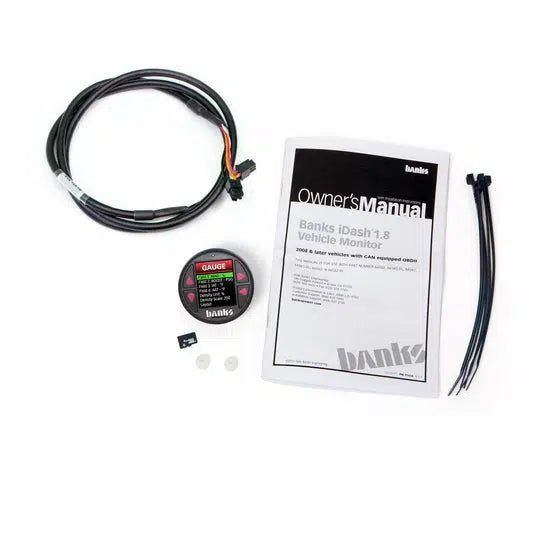

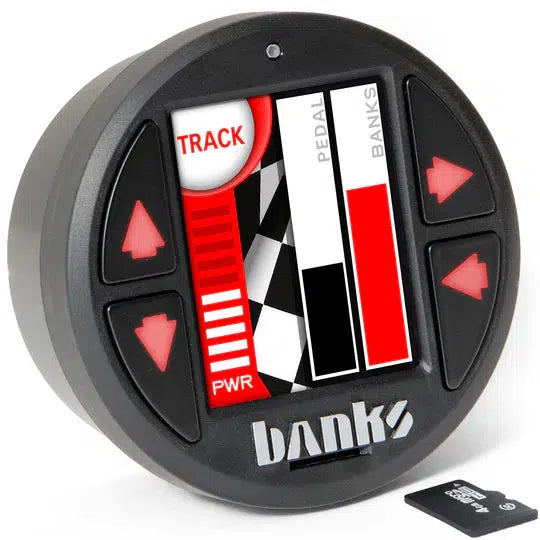

Universal iDash Data Pro Upgrade Kit (66715)
Purchase to earn 717 Dirty Dollars Learn More
Price with add-ons:
Description
Description
Fits: Universal CAN, for use with a currently installed PedalMonster
Standard 52mm size. For all 2008+ OBDII CAN Bus Vehicles
The most advanced iDash to come from Banks; this Powertrain information center allows you to monitor and record what's going on in your truck in real-time. These compact devices blow any OBD plug-in out of the water, featuring a higher resolution screen, expanded internal memory, 25% faster data logging, wireless updates, and 6 direct-connect external sensor inputs.
Choose the parameters that matter most to you and start driving. The Banks Bus Network connects you to a powerful ecosystem of engine performance products and sensor options. And, no matter how many Banks devices you add, the system only requires a single OBD connection.
Part Number: 66715
Superseded Part Number: 66569
Features
Features

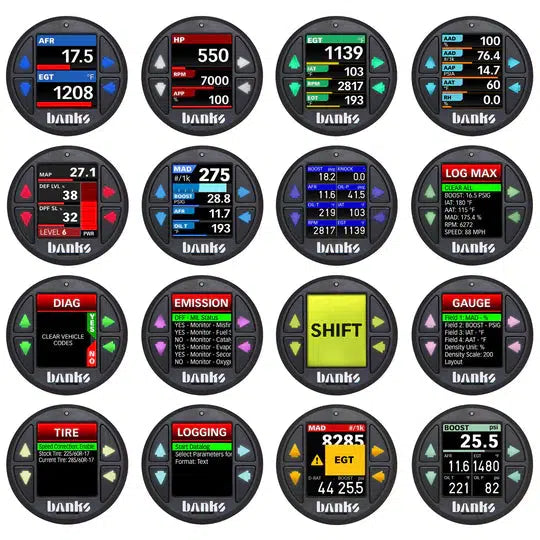

- Customizable gauge display
- Bluetooth app for setup and control
- Free over-the-air firmware updates
- Read Boost Pressure, EGT and so much more
- Avoid costly repairs by monitoring important sensors
- See more with additional gauges
- Display 2-8 Data readings per gauge
- Read up to 80 OBDII Mode 01 values
- Over 300 parameters available
- View Data your dash does not display
- Displays accurate values your OEM dash gauges filter
- Includes patented OBDII Density (exclusive to Banks)

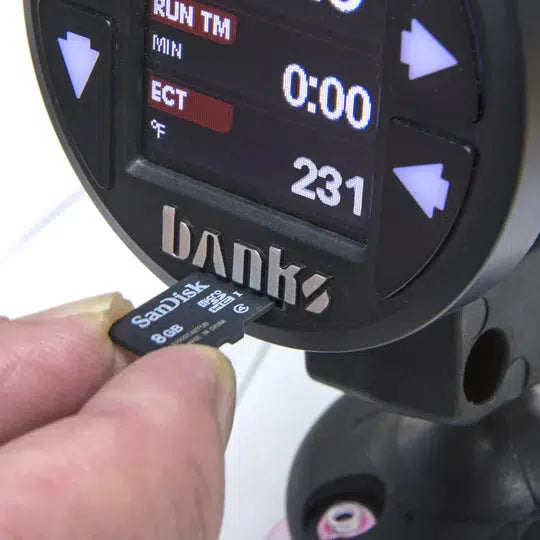

- Adds Data-Logging functionality (incl 4gb micro-SD)
- Log up 100 parameters at a time
- Log up to 20 min/max values
- Connect multiple iDash gauges
- Auto-Dimming Feature

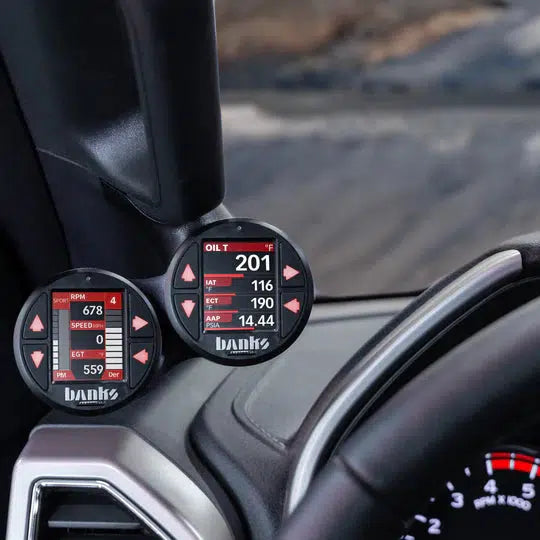

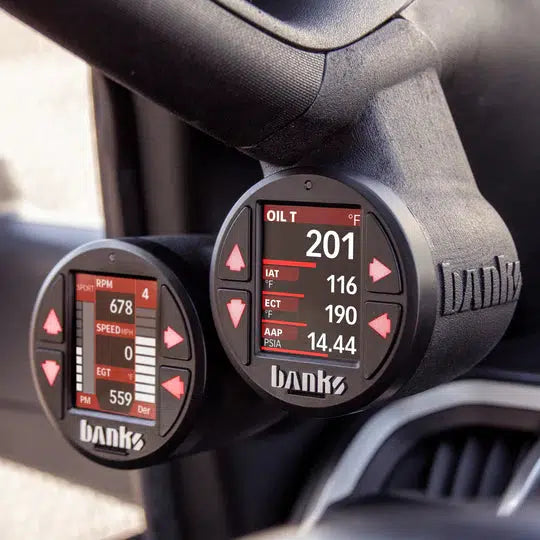

- Fits standard 52mm (2-1/16 inch) gauge mounts
- Features vary by application
Additional Info
Patented Air Density Measurements
iDash Pro calculates Ambient Air Density, Boost Air Density, and Manifold Air Density using OBD-II sensor data or supplemental data from Banks sensors. This data is the ultimate tool to evaluate power, efficiency, and effectiveness of a particular component, system, or entire engine.

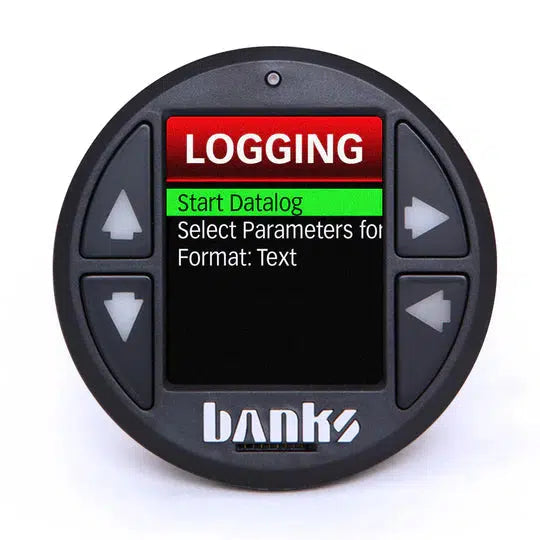

Professional Data Logging
Play back logs on the iDash or export to a computer for deeper analysis on datalogviewer.com or your favorite analysis app.
Notes
Notes
- Kit designed to be used with a currently installed PedalMonster
- No OBD-II cable is included in this kit
- Gauge Mount NOT included
- iDash Fitment Guide
